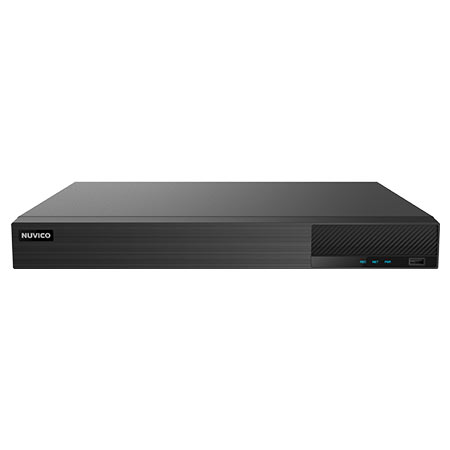

TD-PL1602 Nuvico Xcel Series 16 Channel HD-TVI/HD-CVI/AHD/Analog + 4 Channel IP DVR 160FPS @ 5MP - 2TB

The Nuvico Xcel TD-PL series is available in a 8 or 16 channel model, both supporting HD-TVI, AHD, and Analog plus 4 channels of IP video. The TD-PL series utilizes the most advanced SOC techniques along with H.264 compression format to deliver real time recording, while maintaining quality and maximizing video storage and fluidity. Based on the Nuvico Xcel software platform, the TD-PL series features a mouse driven, clean GUI for easy local control, and is compatible with the Xcel CMS, Web CMS, and mobile apps.

Specifications

System

• Compression - Standard H.264 High Profile
• OS - Embedded Linux

Video

• Input - BNC x 16
• Resolution - HD-TVI / AHD: 20fps @ 5MP, 4MP, 3MP, 1080p, 720p, WD1 Real Time, HD-CVI: 1080p, 720p Real Time
• IP Input / Access Bandwidth - IP x 4 / 24Mbps
• Output - HDMI x 1 : 4K x 2K / 1920 x 1080 / 1280 x 1024, VGA x 1 : 1920 x 1080 / 1280 x 1024, BNC x 1 : CVBS ( Used as the main or spot output )

Audio

• Input - RCA x 4
• Output - RCA x 1
• Two-way audio - Take up channel one audio input

Record

• Resolution - 5MP, 4MP, 4MP Lite, 3MP, 1080p, 720p, WD1
• Frame Rate - NTSC: 10fps @ 5MP, 15fps @ 4MP, 3MP, 30fps @ 4MP Lite, 1080p, 720p, WD1 PAL: 10fps @ 5MP, 12fps @ 4MP, 3MP, 25ps @ 4MP Lite, 1080p, 720p, WD1
• Bit Rate - 768Kbps ~ 8Mbps
• Mode - Manual, Timer, Motion, Sensor

IP Input

• Resolution - 4MP, 3MP, 1080p, 960p, 720p
• Frame Rate - NTSC: 30fps, PAL: 25fps

Playback

• Playback - 16 Channel
• Search - Time Slice / Time / Event / Tag Search
• Smart Search - Highlighted color to display the camera record in a certain period of time, different colors refers to different record events
• Function - Play, Pause, FF, FB, Digital Zoom, etc.

Alarm

• Mode - Manual, Sensor, Motion, Exception
• Input - 4
• Output - 1
• Triggering - Record, Snap, Preset, E-mail, etc.

Network

• Interface - RJ45 10/100/1000Mbps x 1
• Protocol - TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP
• Web Client - Multiple Users Online

Mobile Device

• OS - iOS, Android

Storage

• HDD - SATA x 2, Max 10TB per HDD

Backup

• Local Backup - U disk, USB Mobile HDD
• Network Backup - Yes

Port

• RS485 - RS485 x 1, Connect to PTZ and Keyboard
• USB - USB 2.0 x 1 ( Front panel ) USB 3.0 x 1 ( Rear panel )
• Remote Controller -Yes

General

• Power Supply - 12VDC
• Power Consumption - ≤ 15W ( without HDD )
• Working Environment - 14°F ~ 122°F
• Relative Humidity - 10% ~ 90%
• Weight - 6.06 lbs
• Form Factor - 1U Rackmount Case
• Dimensions - 14.96" W x 10.55" D x 2.05" H
• Warranty - 3 Years
• Package Contents - Recorder, IR Remote, USB Mouse, Power Cord, Rackmount Ears, Installation CD/Manual
