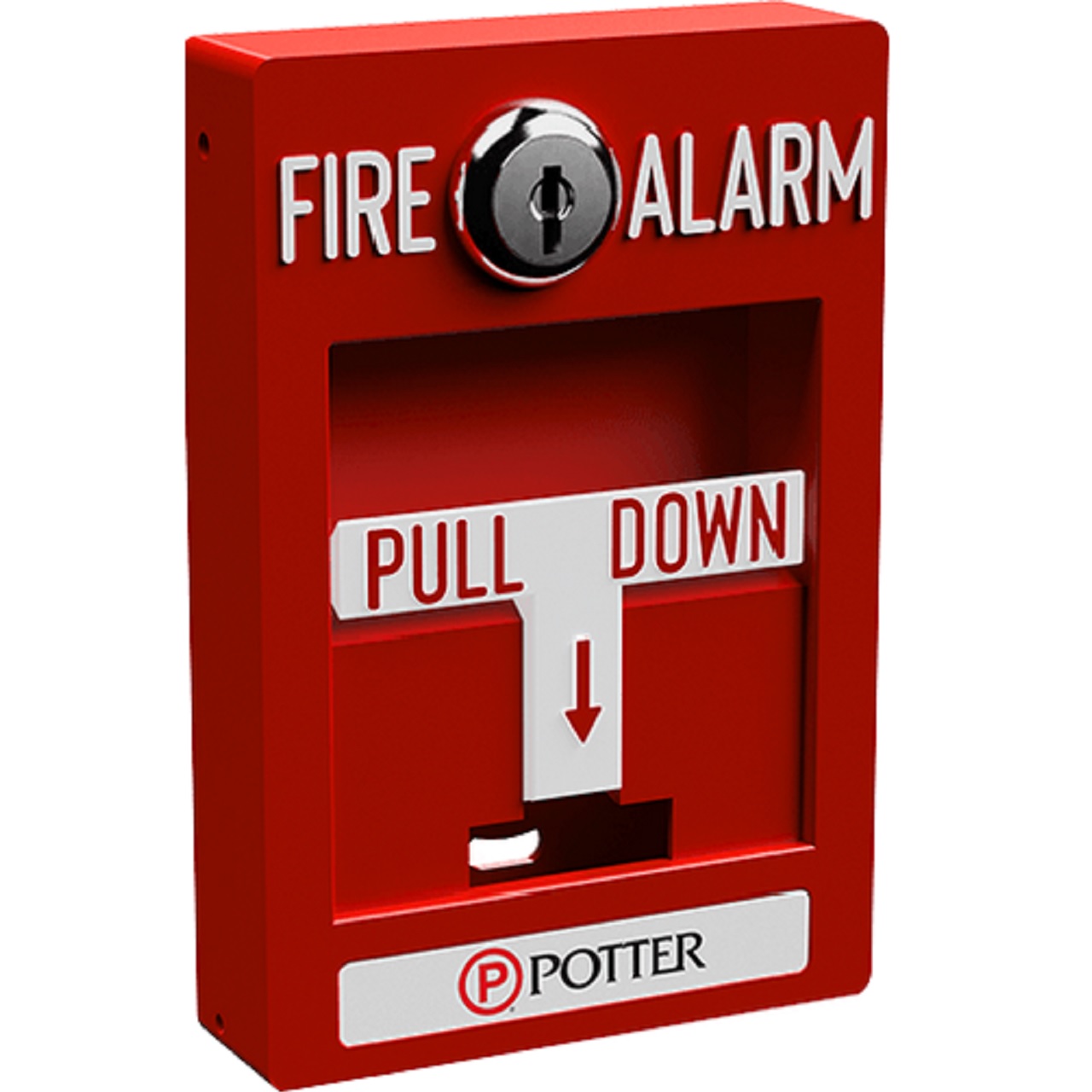

Addressable Pull Station Single/Dual Action
The PAD100-PSSA (Single Action) is activated by simply pulling the white "T" bar handle down. The PAD100-PSDA (Dual Action) is activated by lifting the front cover and then pulling the white "T" bar handle down. Once activated, the "T" bar cannot be reset without opening the front cover. Opening the front cover will also activate the pull station. To reset the PAD100-PS Series, use the Potter WS-93 key to unlock and open the front cover. Once the cover is open, push the "T" bar back into the normal position and re-secure the front cover.
Already a DWG Dealer? - Sign In to view pricing.
The paD100-pSSa (Single action) is activated by simply pulling the white “T†bar handle down. The paD100-pSDa (Dual action) is activated by lifting the front cover and then pulling the white “T†bar handle down. Once activated, the “T†bar cannot be reset without opening the front cover. Opening the front cover will also activate the pull station. To reset the paD100-pS Series, use the potter WS-93 key to unlock and open the front cover. Once the cover is open, push the “T†bar back into the normal position and re-secure the front cover.
The paD100-pSSa/pSDa is compatible with potter’s Ipa and aFC/ ARC series addressable fire alarm control panels. It is a non-coded addressable pull station available in either a single or dual action model and installs on a single gang box or surface mounts using the P32-BB or p32-DBB (deep) back box.
3992720 Specifications PDF
