Features
- Wide selection of tones (U-TC)
- Multiple tone capability
- Voice capable with pTCK audio connector card
- Dust and moisture proof sealed die-cast aluminum housing
- 4 speaker cluster for 360° coverage
- Indoor and outdoor mounting
Description

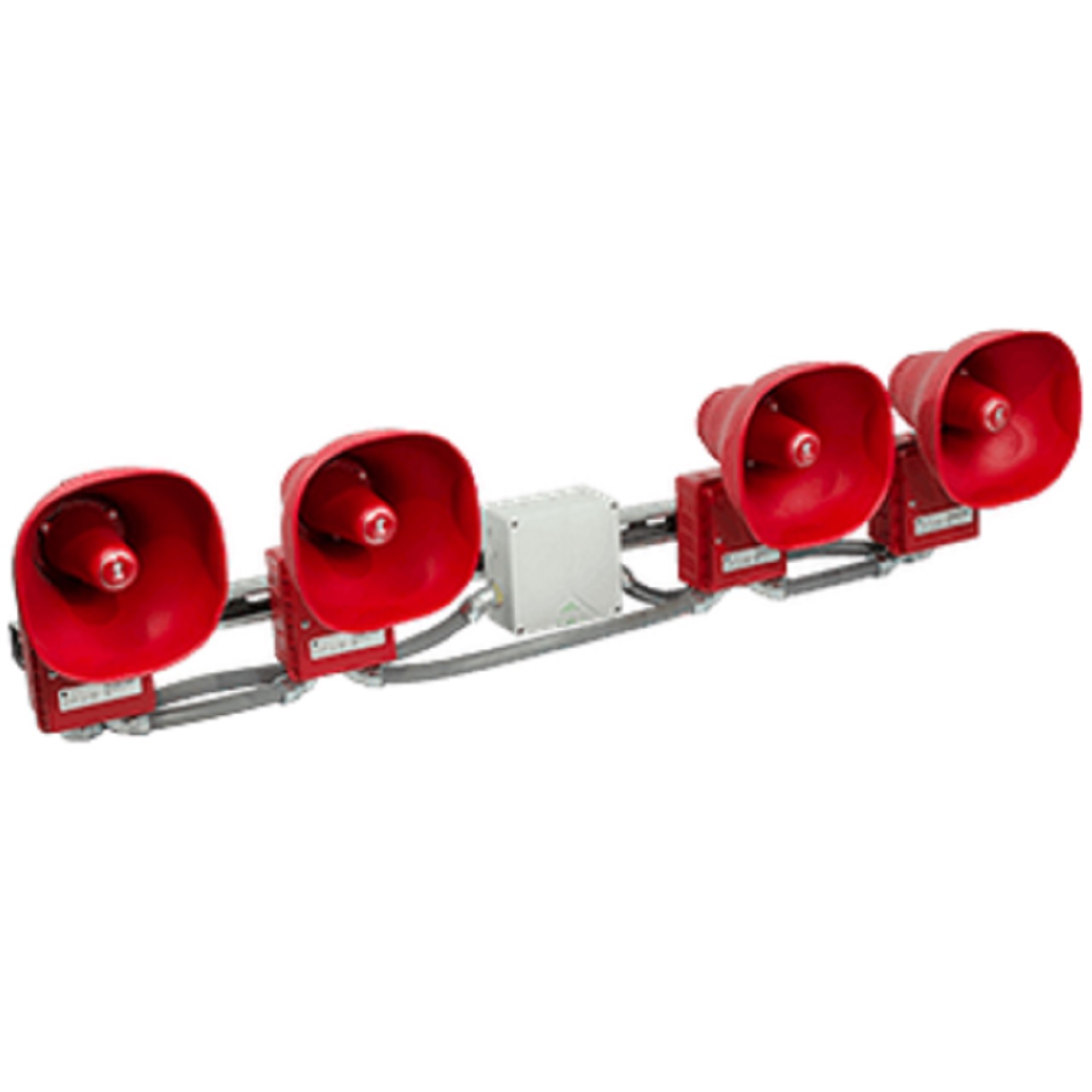

CPG Signals Model ASHP PowerTone Amplified Speaker Clusters produce a crisp clear high decibel tone and/or voice signal. a tone can be generated by using the U-TC card, or a voice can be generated by any 25 or 70Vrms audio system with the pTCK card. The speaker cone and projector are made of spun aluminum.
The speaker cluster may be mounted to an I-beam. a cluster comes with four aSHp powerTone speakers for 360° coverage. The aSHp is suited for areas with high ambient noise levels and where a unique audible signal is required.
The circuitry and connector card are contained in a dust and moisture proof sealed die-cast red aluminum housing. an internal gain control allows for volume adjustment.
Application
The Amplified Speaker is suited for areas with high ambient noise levels and where unique audible signal is required. When used with a tone generator or voice evac system and a pTCK25 or pTCK70 connector card the speaker can reproduce and amplify the audio signal.
For a single tone application the amplified speaker is polarized and with the U-TC universal tone connector card can be used with a reverse polarity NaC circuit.
Specifications
The amplified speakers shall be listed by a National Recognized Testing Laboratory (NRTL) for fire alarm signaling use. Alarm notification appliances shall be CPG Signals, Model ASHP Cluster Series. Amplified speakers shall be mounted in a cluster of 4 ASHP-24MR PowerTone amplified speakers for 360° coverage. The amplified speakers shall be polarized to allow connecting of a 24vdc reverse polarity NaC circuit, using a plug-in universal tone connector card (U-TC). The amplified speaker shall be solid-state circuitry and be housed in a die-cast, dust and moisture proof aluminum housing which is NeMa 3 rated.
The speaker cone and projector shall be of spun aluminum. The amplified speakers shall be capable of clearly reproducing any number of Cpg tones and voice evacuation signals. The amplified speakers shall be compatible with any 25 or 70Vrms audio system using the pTCK25 or pTCK70 connector card. The amplified speakers shall have an internal gain control for tone of indoor or outdoor mounting.
Technical Specifications
- Model Number - ASHp-4CLMR-U/25/70
- Operating Voltage - 24 VDC polarized
- Operating Current 4 Speaker Cluster - 1.04 alarm, 0.18a standby
- Material - aluminum
- Operating Temperature Range - -40°F to 151°F
