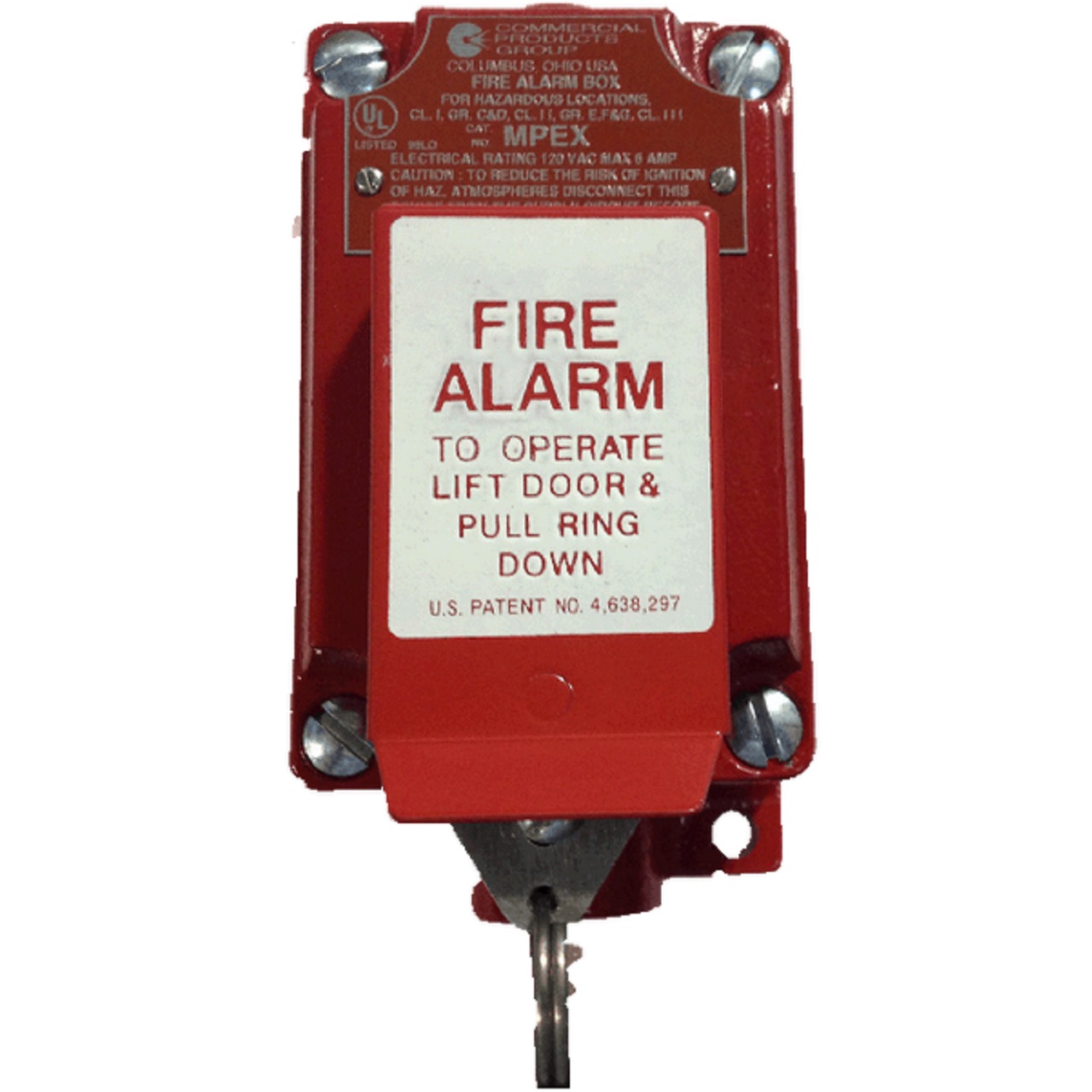

1000548 Potter MPEX Explosion Proof Manual Station

Features

• Enclosure is made of copper free cast aluminum alloy
• 120VAC, 60Hz, 6 amps, with 2 - 3/4” NPT feed through conduit openings
• Red, textured powder epoxy paint finish is standard on box and cover, providing high visibility for alarm station
• UL Listed for Class I, Division 1, Groups C & D; Class II, Division 1, Groups E, F and G; and Class III
• Rated NEMA 7 for Groups C & D and NEMA 9 for Groups E, F and G
• Lift cover and pull down ring to activate
• UL, ULC, and CSFM Listed

Description

The Federal Signal Model MPEX Explosion-Proof Pull Station is designed for hazardous locations where flammable gases, vapors,combustible dusts or easily ignitable fibers are present. The unique swing-up front cover exposes a pull-down ring which activates the alarm; this two-step process prevents accidental activation. The MPEX is reset by depressing the shaft and returning the plate to its original position.

Technical Specifications

• Shipping Weight - 2.7 lbs
• Material - Copper-free cast aluminum
• Operating Temp - -31°F to 104°F
• Dimensions - 6.4” x 3.1” x 4.1”

1000548 Specifications PDF
