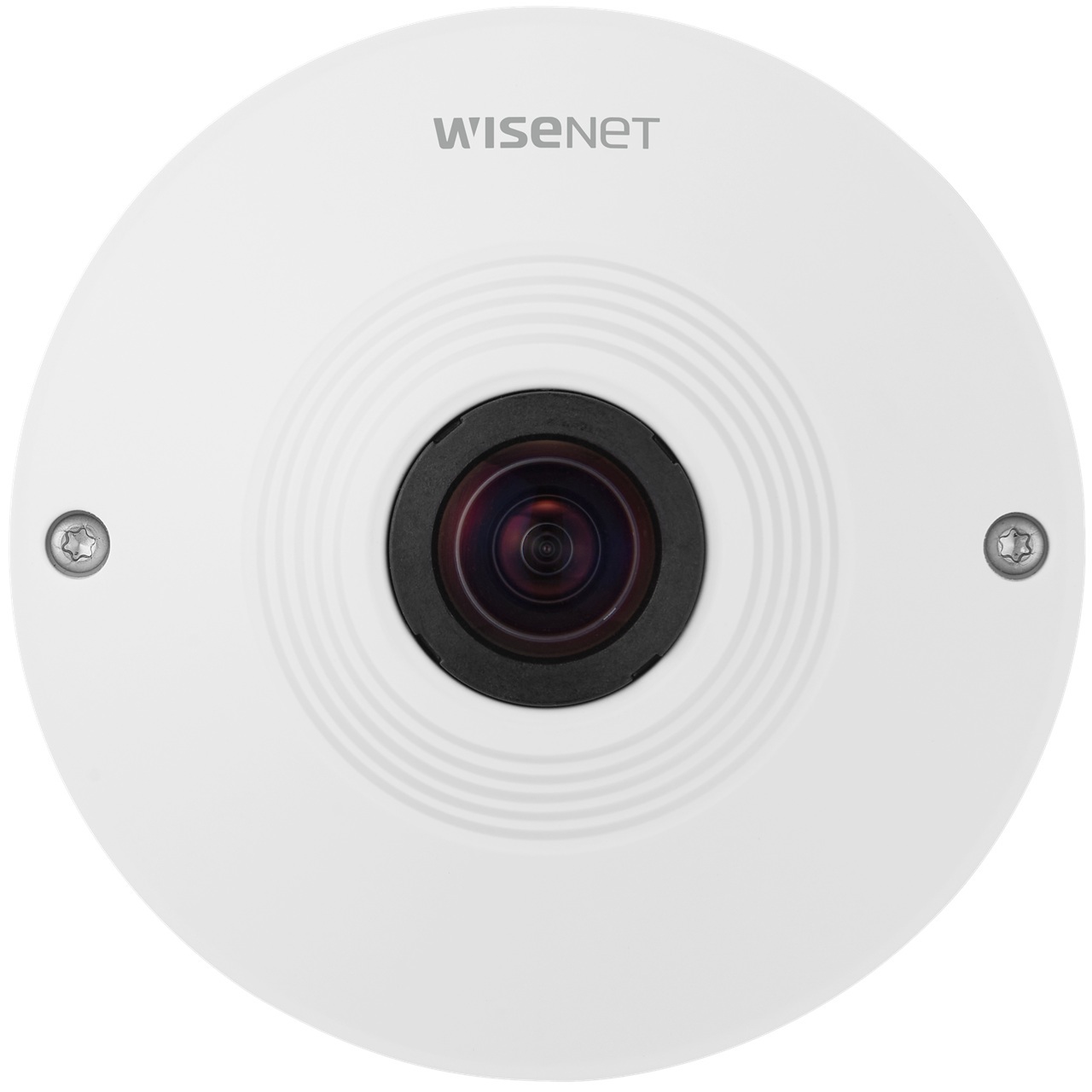

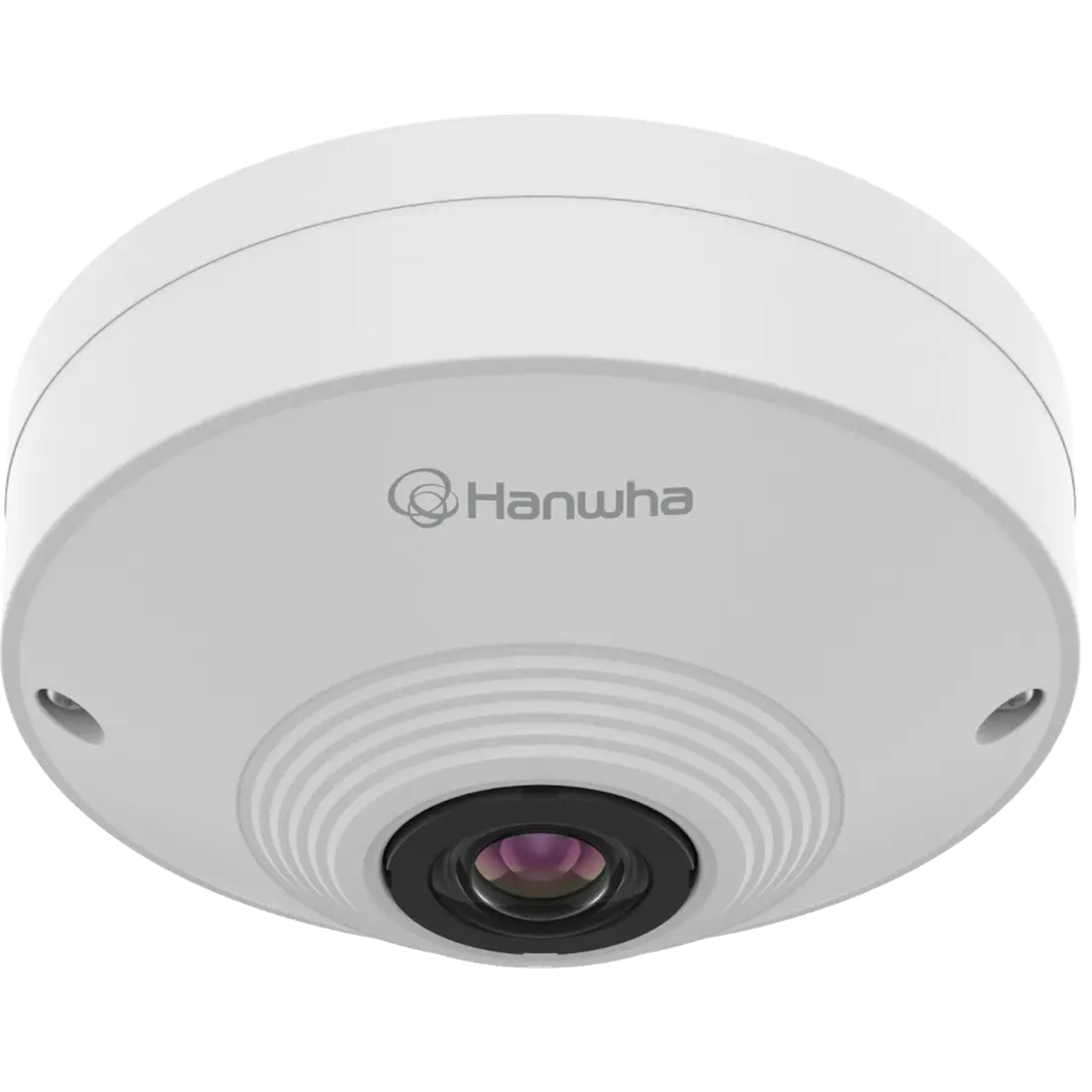

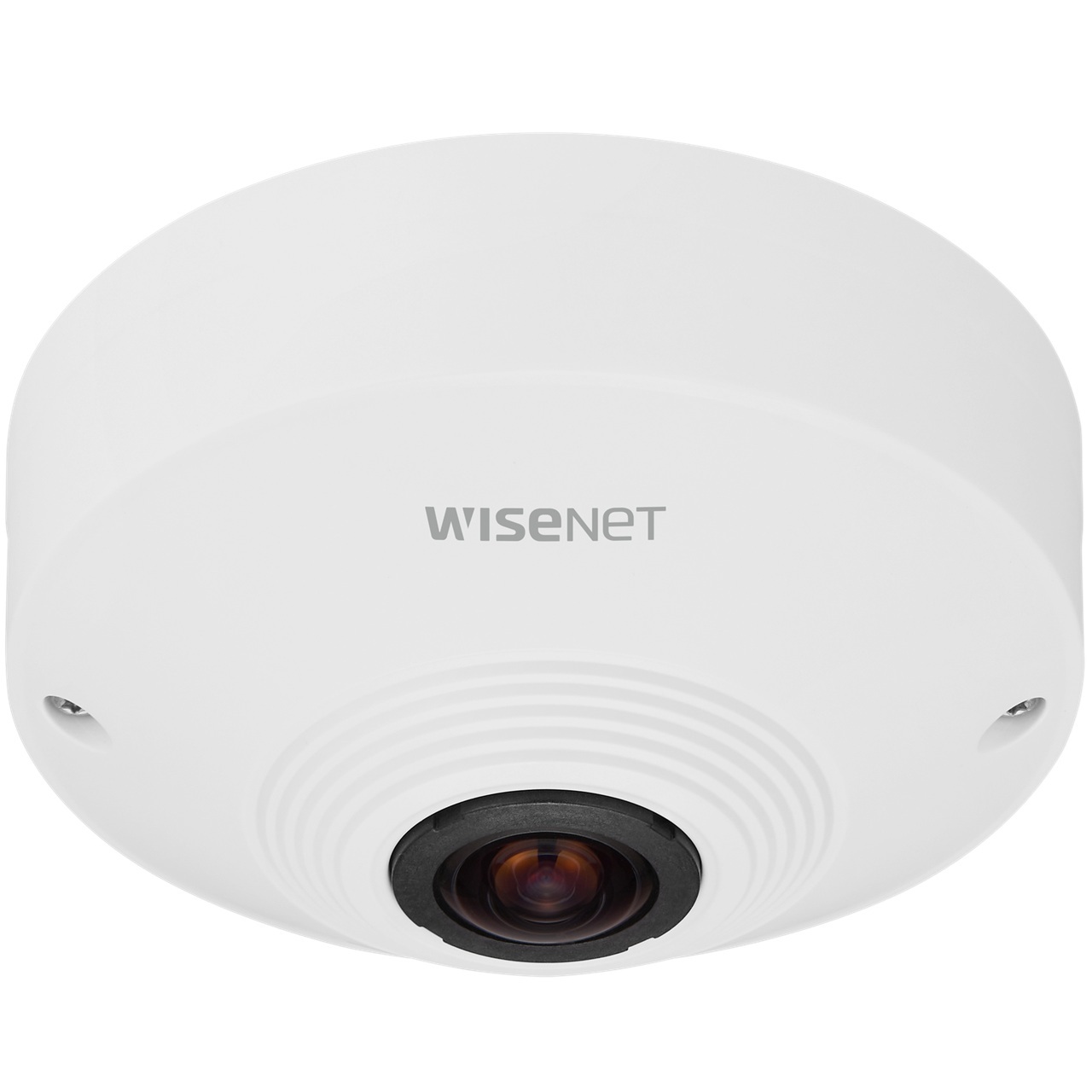

QNF-8010 Hanwha Vision Q Series 1.14mm 30FPS @ 6MP Indoor Day/Night WDR Fisheye IP Security Camera PoE

Specifications

Video

• Imaging Device - 1/1.8" 6MP CMOS
• Resolution - Original view: 2048x2048, 1280x1280, 1080x1080, 960x960, 768x768, 720x720, 640x640, 480x480 Single panorama: 2048x512, 1920x480, 1280x320, 640x160, 704x176 Double panorama: 2048x1024, 1920x960, 1280x640, 640x320, 704x352 Quad view: 2048x1536, 1600x1200, 1280x960, 1024x768, 800x600, 640x480, 704x576 Q1/2/3/4: 1024x768, 800x600, 640x480
• Max. Framerate - H.264/H.265 : 30fps/25fps@2048x2048(60Hz/50Hz) MJPEG : Max 15fps
• Min. Illumination - Color: 0.2 Lux (F2.5, 1/30sec)
• Video Out - CVBS : 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P), for Installation

Lens

• Focal Length (Zoom Ratio) - 1.14mm fixed focal
• Max. Aperture Ratio - F2.5
• Angular Field of View - H: 187Ëš / V: 187Ëš / D: 187Ëš
• Min. Object Distance - 0.3m

Operational

• Camera Title - Displayed up to 85 characters
• Day & Night - Auto (Electrical)
• Backlight Compensation - BLC, HCL, WDR, SSDR
• Wide Dynamic Range - (120dB)
• Digital Noise Reduction - SSNRâ…¤
• Motion Detection - 8ea, Polygonal zones
• Privacy Masking - 6ea, Rectangle zones - Color: Grey/Green/Red/Blue/Black/White - Mosaic
• Gain Control - Low / Middle / High
• White Balance - ATW / AWC / Manual / Indoor / Outdoor
• Electronic Shutter Speed - Minimum / Maximum / Anti flicker (2~1/12,000sec)
• Digital PTZ - Support(Preset, Group)
• Video Rotation - Flip, Mirror
• Analytics - Defocus detection, Motion detection, Tampering
• Business Intelligence - People counting, Heatmap
• Alarm Triggers - Analytics, Network disconnect
• Alarm Events - File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers

Network

• Ethernet - RJ-45(10/100BASE-T)
• Video Compression - H.265/H.264: Main/Baseline/High, MJPEG
• Smart Codec - WiseStreamâ…¡
• Video Quality Adjustment - H.264/H.265: Target bitrate level control MJPEG: Quality level control
• Bitrate Control - H.264/H.265: CBR or VBR MJPEG: VBR
• Streaming - Unicast(6 users) / Multicast Multiple streaming(Up to 3 profiles)
• Protocol - IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
• Security - HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP)
• Application Programming Interface - ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform

General

• Webpage Language - English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
• Web Viewer - Supported OS: Windows 7, 8.1, 10, Mac OS X 10.12, 10.13, 10.14 Recommended Browser: Google Chrome Supported Browser : MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only)
• Edge Storage - Micro SD/SDHC/SDXC 1slot 256GB
• Memory - 1024MB RAM, 256MB Flash

Environmental & Electrical

• Operating Temperature / Humidity - -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH
• Storage Temperature / Humidity - -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH
• Certification - IP42
• Input Voltage - PoE(IEEE802.3af, Class3)
• Power Consumption - PoE: Max 6.4W, typical 4.6W

Mechanical

• Color / Material - White / Plastic
• RAL Code - RAL9003
• Product Dimensions / Weight - Ø99x49mm(Ø3.9x1.93"), 320g(0.705 lb)
