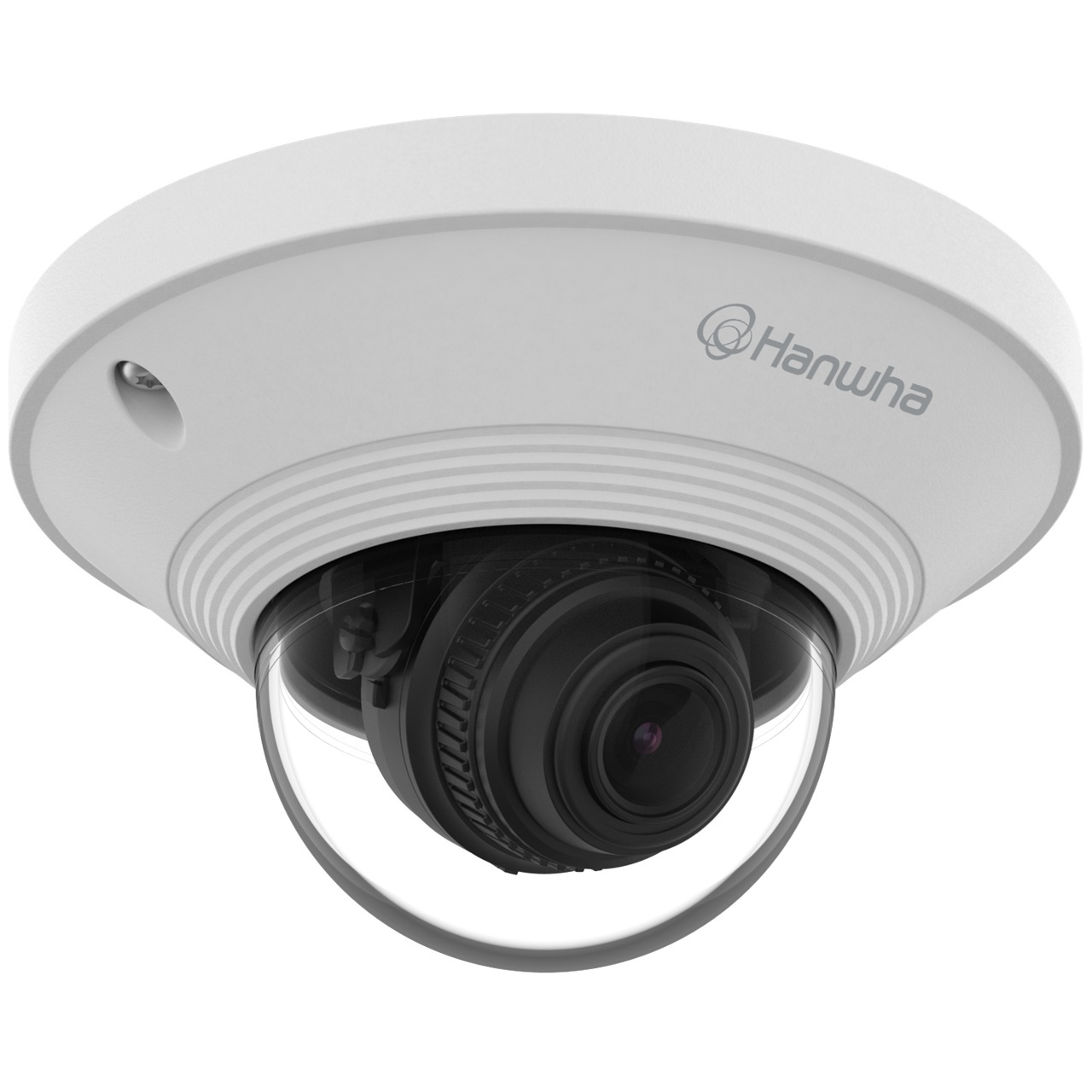

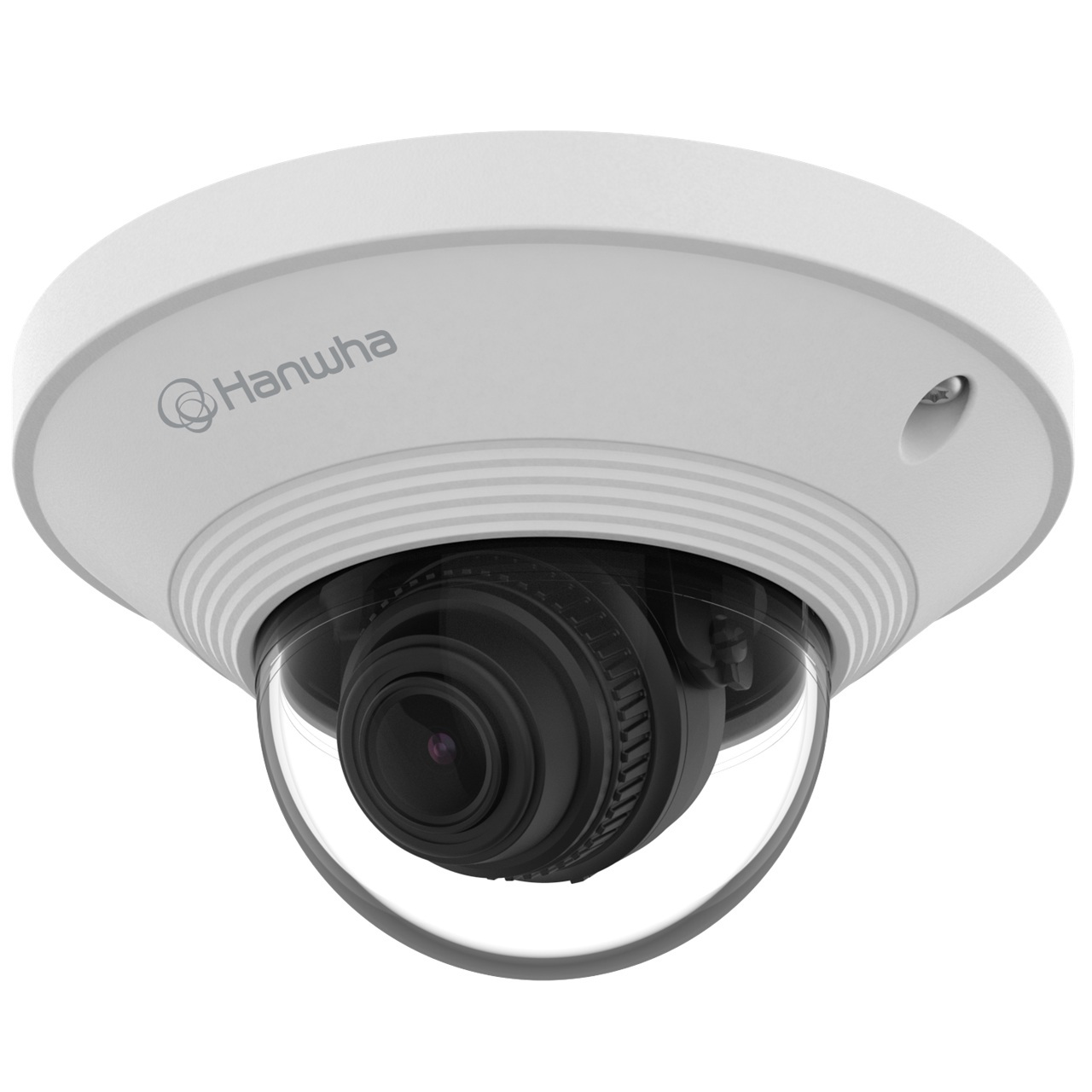

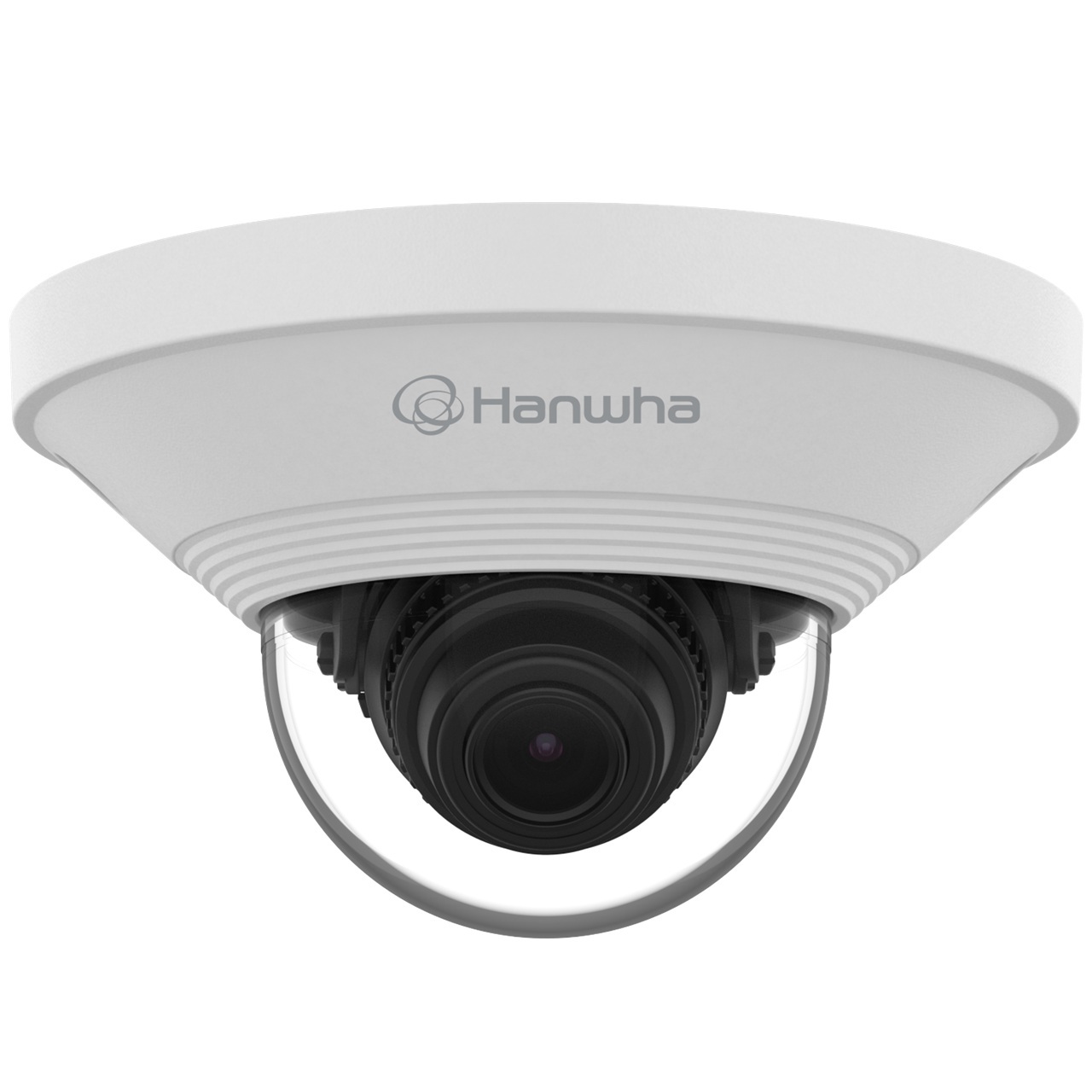

QND-6011 Hanwha Techwin 2.8mm 30FPS @ 2MP Indoor Day/Night WDR Dome IP Security Camera POE

The QND-6011 from Hanwha's Q mini Series affordable network camera line is a 2 Megapixel Super-Compact Indoor Dome network camera featuring WiseStream II, Hanwha's compression technology, triple codec H.265/H.264/MJPEG, 2.8mm lens, PoE, 120dB True WDR, IP42, IK08, defocus & tampering detection, Hallway View, and SD card slot (SD/SDHC/SDXC up to 128GB).

Specifications

Video

• Imaging Device - 1/2.8" 2MP CMOS
• Effective Pixels - 1920(H) x 1080(V)
• Minimum Illumination - Color: 0.03Lux(F2.0, 1/30sec)

Lens

• Focal Length (Zoom Ratio) - 2.8mm fixed focal
• Maximum Aperture Ratio - F2.0
• Angular Field of View - H : 113.74 / V : 61.5° / D : 134.45°
• Focus Control - Fixed

Pan / Tilt / Rotate

• Pan / Tilt / Rotate Range - 0˚~350˚ / 0˚~69˚ / 0˚~355˚

Operational

• Camera Title - Displayed up to 85 characters
• Day & Night - Auto (Electrical)
• Backlight Compensation - BLC, WDR, SSDR
• Wide Dynamic Range - 120dB
• Digital Noise Reduction - SSNR
• Motion Detection - 4ea, polygonal zones
• Privacy Masking - 6ea, rectangular zones
• Gain Control - Low / Middle / High
• White Balance - ATW / AWC / Manual / Indoor / Outdoor
• LDC - Support
• Electronic Shutter Speed - Minimum / Maximum / Anti flicker (1/5~1/12,000sec)
• Video Rotation - Flip, Mirror, Hallway view (90˚/270˚)
• Analytics - Defocus detection, Motion detection, Tampering
• Business Intelligence - People counting
• Alarm Triggers - Analytics, Network disconnect
• Alarm events - File upload via FTP and e-mail, Notification via e-mail , SD/SDHC/SDXC or NAS recording at event triggers

Network

• Ethernet - RJ-45 (10/100BASE-T)
• Video Compression - H.265/H.264 : Main/High, MJPEG
• Resolution - 1920 x 1080, 1280 x 960, 1280 x 720, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360
• Maximum Framerate - H.265/H.264 : Maximum 30fps, MJPEG : Maximum 15fps
• Smart Codec - WiseStream II
• Bitrate Control - H.264/H.265 : CBR or VBR, MJPEG : VBR
• Streaming - Unicast (6 users) / Multicast Multiple streaming (Up to 3 profiles)
• Protocol - IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP
• Security - HTTPS (SSL) login authentication, Digest login authentication, IP address filtering, User access log, 802.1X authentication (EAP-TLS, EAP-LEAP)
• Edge Storage - Micro SD/SDHC/SDXC 1 slot maximum 128GB
• Application Programming Interface - ONVIF Profile S/G/T, SUNAPI (HTTP API), Wisenet open platform
• Web Viewer - Supported OS: Windows 7, 8.1, 10, Mac OSx10.12, 10.13, 10.14 Recommended Browser: Google Chrome, Supported Browser: MS Internet Explorer 11, MS Edge, Mozilla Firefox (Windows 64-bit only), Apple Safari (Mac OSxonly)
• Web Viewer - Supported OS : Windows 7, 8.1, 10, Mac OS X 10.12, 10.13, 10.14, Recommended Browser : Google Chrome, Supported Browser : MS Explorer 11, MS Edge, Mozilla Firefox (Windows 64 bit only), Apple Safari (Mac OS X only)
• Memory - 512MB RAM, 256MB Flash

Environmental

• Operating Temperature/Humidity - -14°F ~ +131°F (-10°C ~ +55°C) / Less than 90% RH
• Storage Temperature / Humidity - -22°F ~ +140°F (-30°C ~ +60°C) / Less than 90% RH
• Certification - IP42, IK08

Electrical

• Input Voltage - PoE(IEEE802.3af, Class2)
• Power Consumption - PoE: Maximum 4.80W, typical 2.80W

Mechanical

• Color / Material - White / Plastic
• RAL Code - RAL9003
• Product dimensions / weight - Ø3.9 x 2.2" (Ø99.0 x 56.0mm), 0.32 Ib (145g)
• Gangbox Compatibility - Direct mount to single gang box

QND-6011 Specifications PDF
