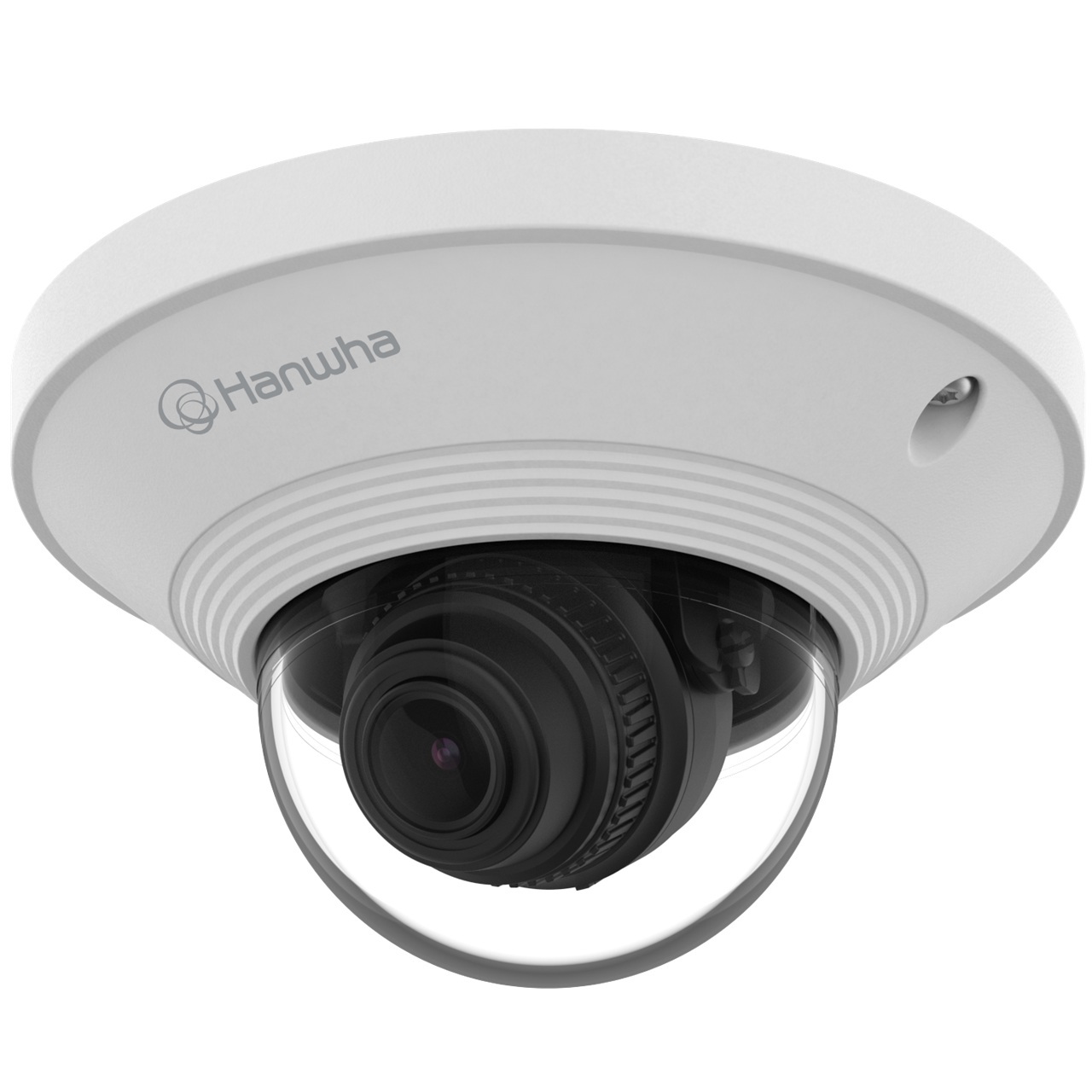

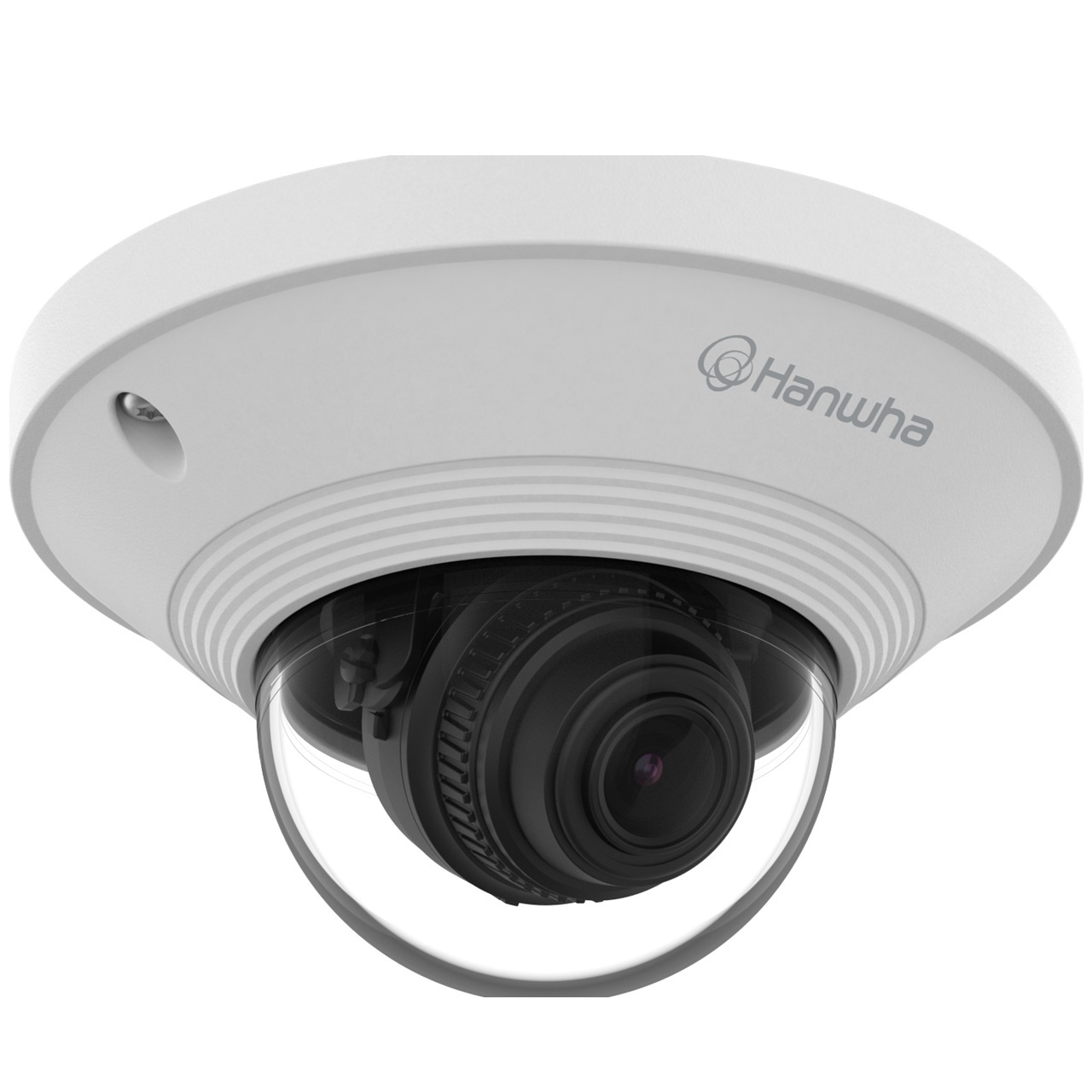

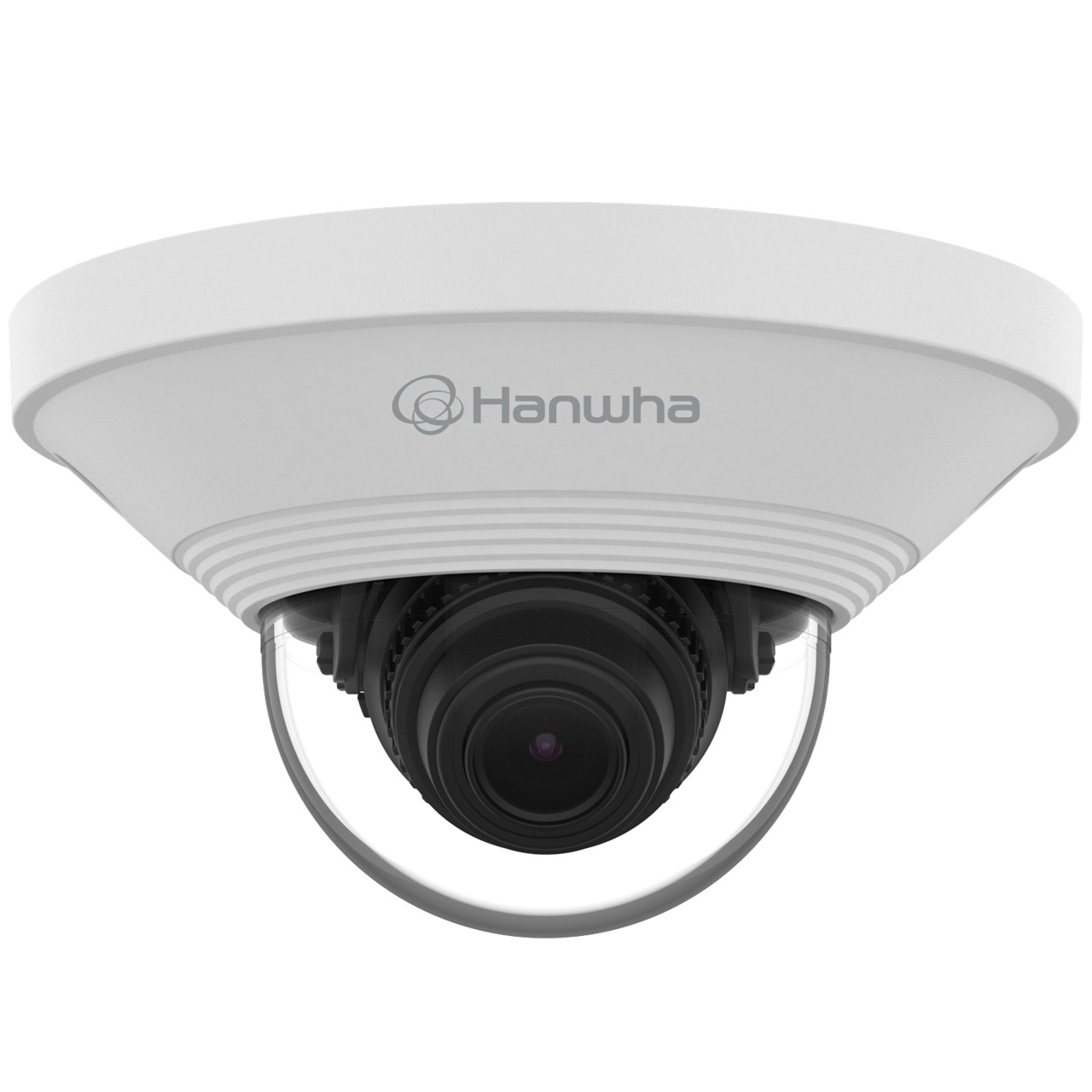

QND-6021 Hanwha Vision Q Series 4mm 30FPS @ 2MP Indoor Day/Night WDR Dome IP Security Camera PoE

Specifications

Video

• Imaging Device - 1/2.8" 2MP CMOS
• Effective Pixels - 1920(H)x1080(V)
• Min. Illumination - Color: 0.03Lux(F1.6, 1/30sec)

Lens

• Focal Length (Zoom Ratio) - 4.0mm fixed focal
• Max. Aperture Ratio - F1.6
• Angular Field of View - H: 87.6 / V: 46.4° / D: 104.5°
• Focus Control - Fixed

Pan / Tilt / Rotate

• Pan / Tilt / Rotate Range - 0°~350° / 0°~69° / 0°~355°

Operational

• Camera Title - Displayed up to 85 Characters
• Day & Night - Auto (Electrical)
• Backlight Compensation - BLC, HLC, SSDR
• Wide Dynamic Range - (120dB)
• Digital Noise Reduction - SSNRV
• Motion Detection - 4ea, polygonal zones
• Privacy Masking - 6ea, rectangular zones
• Gain Control - Low / Middle / High
• White Balance - ATW / AWC / Manual / Indoor / Outdoor
• LDC - Support
• Electronic Shutter Speed - Minimum / Maximum / Anti flicker (1/5~1/12,000sec)
• Video Rotation - Flip, Mirror, Hallway view(90Ëš/270Ëš)
• Analytics - Defocus detection, Motion detection, Tampering
• Business Intelligence - People counting
• Alarm Triggers - Analytics, Network disconnect
• Alarm Events - File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers

Network

• Ethernet - RJ-45(10/100BASE-T)
• Video Compression - H.265/H.264: Main/High, MJPEG
• Resolution - 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360
• Max. Framerate - H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 15fps/12fps(60Hz/50Hz)
• Smart Codec - WiseStreamâ…¡
• Video Quality Adjustment - H.264/H.265: Target bitrate level control MJPEG: Quality Level control
• Bitrate Control Method - H.264/H.265: CBR or VBR MJPEG: VBR
• Streaming - Unicast(6 users) / Multicast Multiple streaming(Up to 3 profiles)
• Protocol - IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP
• Security - HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access Log 802.1X Authentication(EAP-TLS, EAP-LEAP)
• Edge Storage - Micro SD/SDHC/SDXC 1slot 128GB
• Application Programming Interface - ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform
• Webpage Language - English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch
• Web Viewer - Supported OS: Windows 7, 8.1, 10, Mac OSx10.12, 10.13, 10.14 Recommended Browser: Google Chrome Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OSxonly)
• Memory - 512MB RAM, 256MB Flash

Environmental

• Operating Temperature / Humidity - -10°C ~ +55°C(-14°F ~ +131°F) / Less than 90% RH
• Storage Temperature / Humidity - -30°C ~ +60°C(-22°F ~ +140°F) / Less than 90% RH
• Certification - IP42, IK08

Electrical

• Input Voltage - PoE(IEEE802.3af, Class2)
• Power Consumption - PoE: Max 4.80W, typical 2.80W

Mechanical

• Color / Material - White / Plastic
• RAL Code - RAL9003
• Product Dimensions/ weight - Ø99.0x56.0mm(Ø3.9x2.2"), 145g(0.32 lb)

DORI

• Detect (25PPM/ 8PPF) - 40.0m(131.36ft)
• Observe (63PPM/ 19PPF) - 16.0m(52.54ft)
• Recognize (125PPM/ 38PPF) - 8.0m(26.27ft)
• Identify (250PPM/ 76PPF) - 4.0m(13.14ft)
