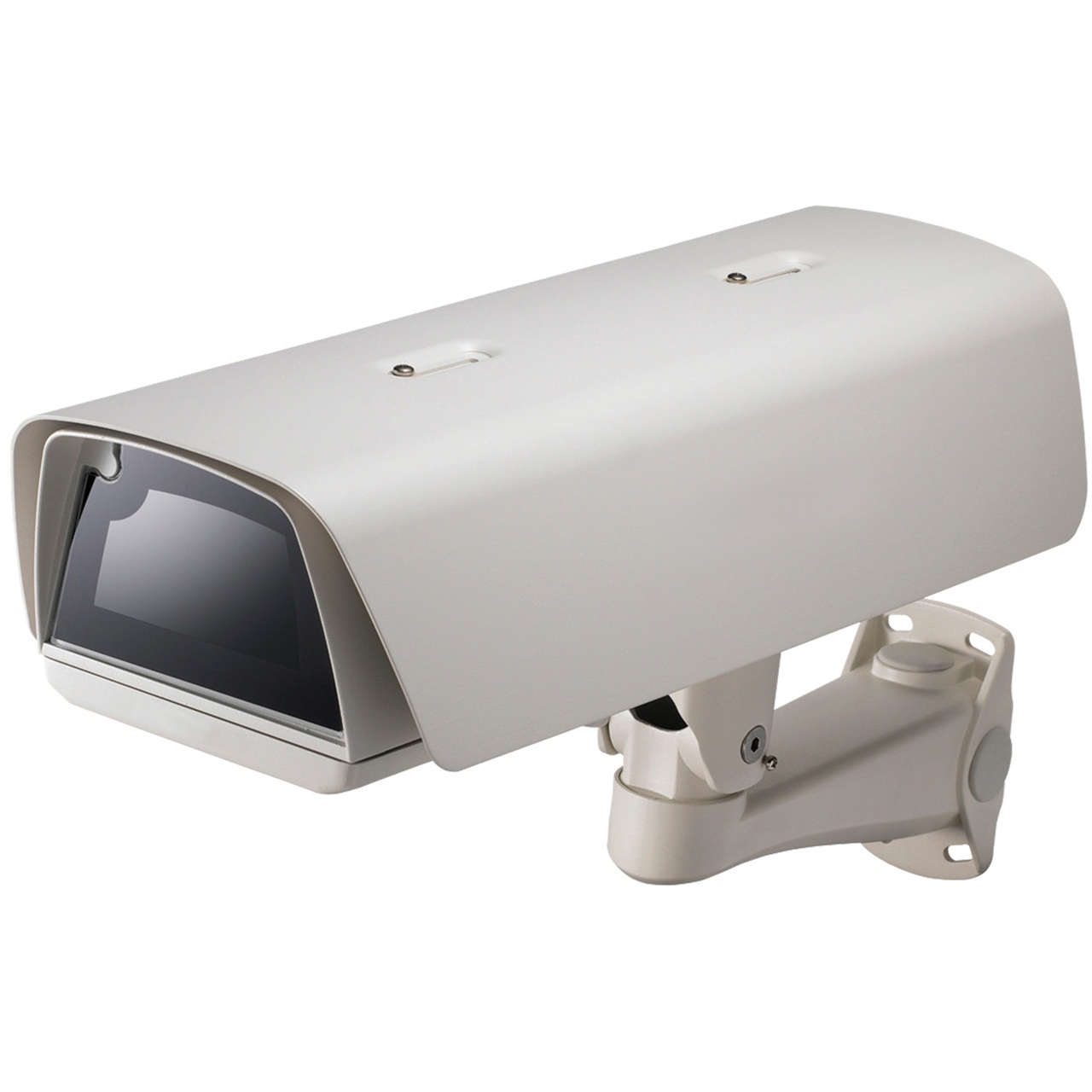

SHB-4301HP Hanwha Techwin Indoor/Outdoor Fixed Camera Housing

Indoor/Outdoor PoE+ housing and wall mount with Power over Ethernet capability.

Specifications

• Purpose - Outdoor Housing
• Product Name - Box Camera Housing
• Features - PoE+ function, Dustproof, Waterproof, IP66
• Material - Aluminium Die-Casting ADC 12
• Use Condition - -35°C ~ +50°C / -31°F ~ +122°F
• Weight - 2.5kg (5.51lb) without Bracket
• Input Power - DC12V (Minimum 30W), PoE+ Power (IEEE802.3at)
• Output Power
  • Fan - 2W
  • Defroster - 5W
  • Heater - 5~9W
• Operation Temperature
  • Fan - Above 35°C± 2°C ON / Below 30°C± 2°C OFF
  • Defroster - Always ON
  • Heater1 - Below 5°C± 5°C ON / Above 15°C± 5°C OFF
• Dimension
  • Outside - 184mm(W) X 127mm(H) X 460mm(D) (7.24 X 5.00 X 18.11")
  • Inside - 99mm(W) X 80mm(H) X 250mm(D) (3.90 X 3.15 X 9.84")
• Color - Ivory
• Accessories
  • Housing
    • 1/4" -20X3/8" Screw (x2), Spring Washer (x1)
    • Flat Washer (x1), Wrench(x1)
    • Gland Cable Cap (x2)
  • Bracket - 1/4" x 1/2" Screw (x4)

SHB-4301HP Specifications PDF
