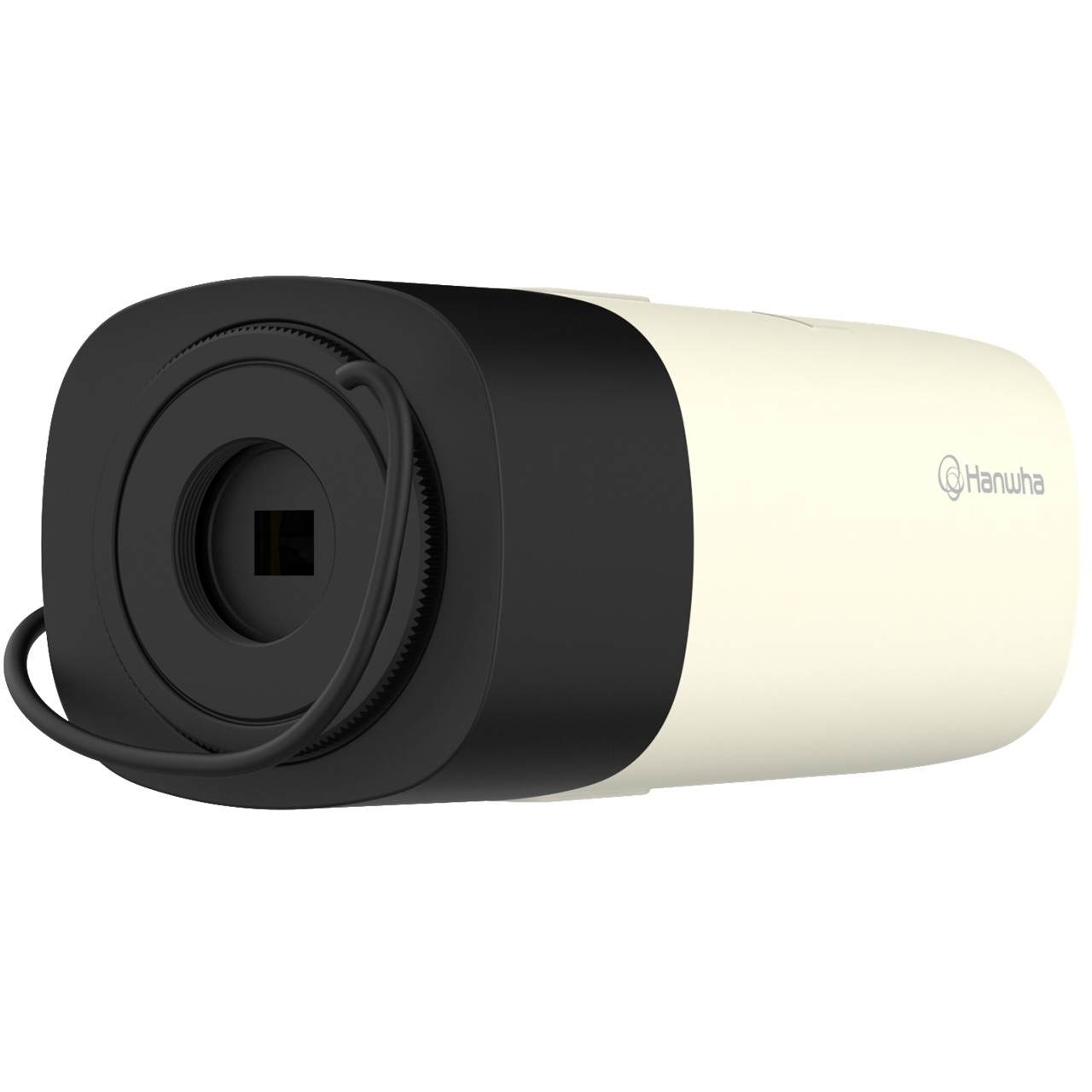

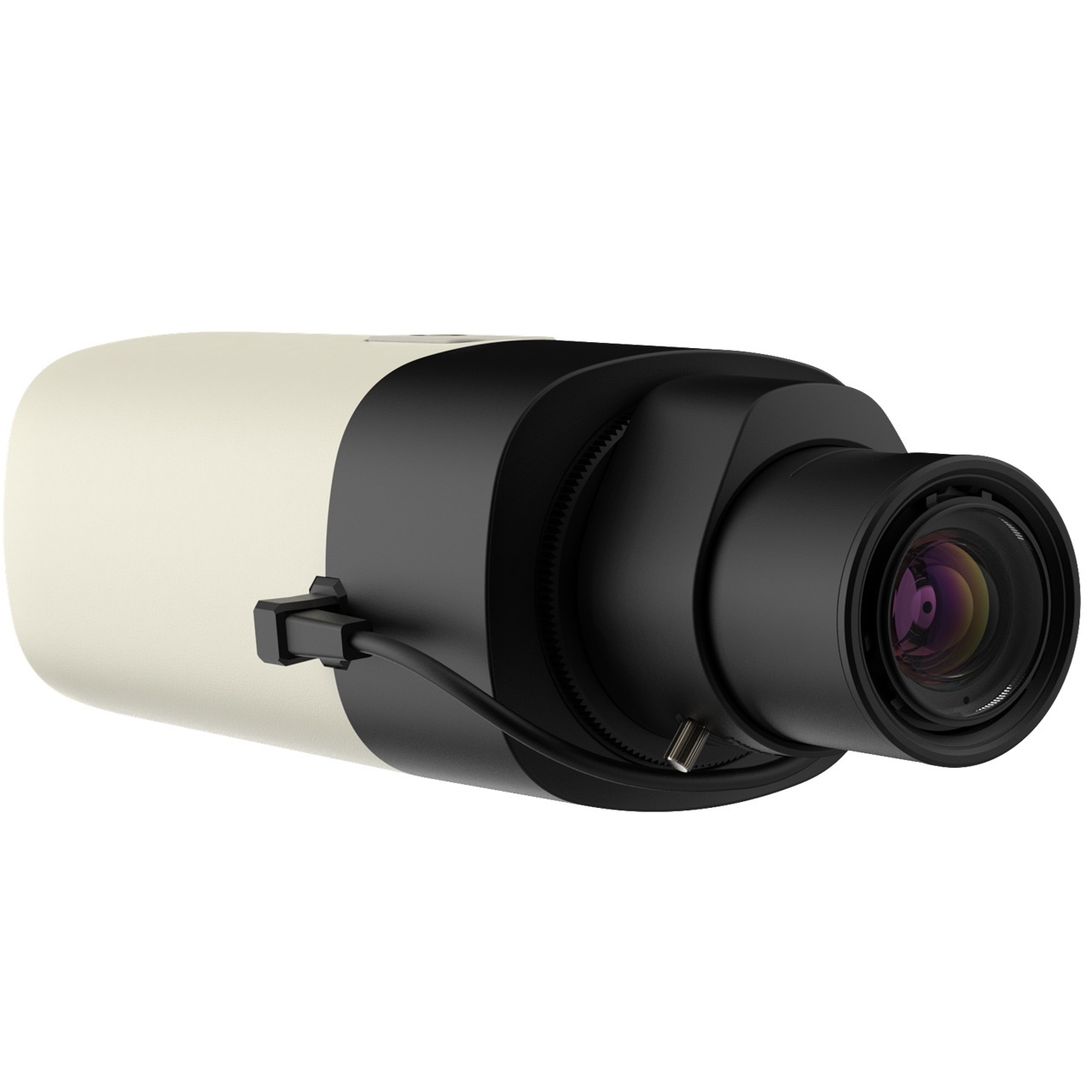

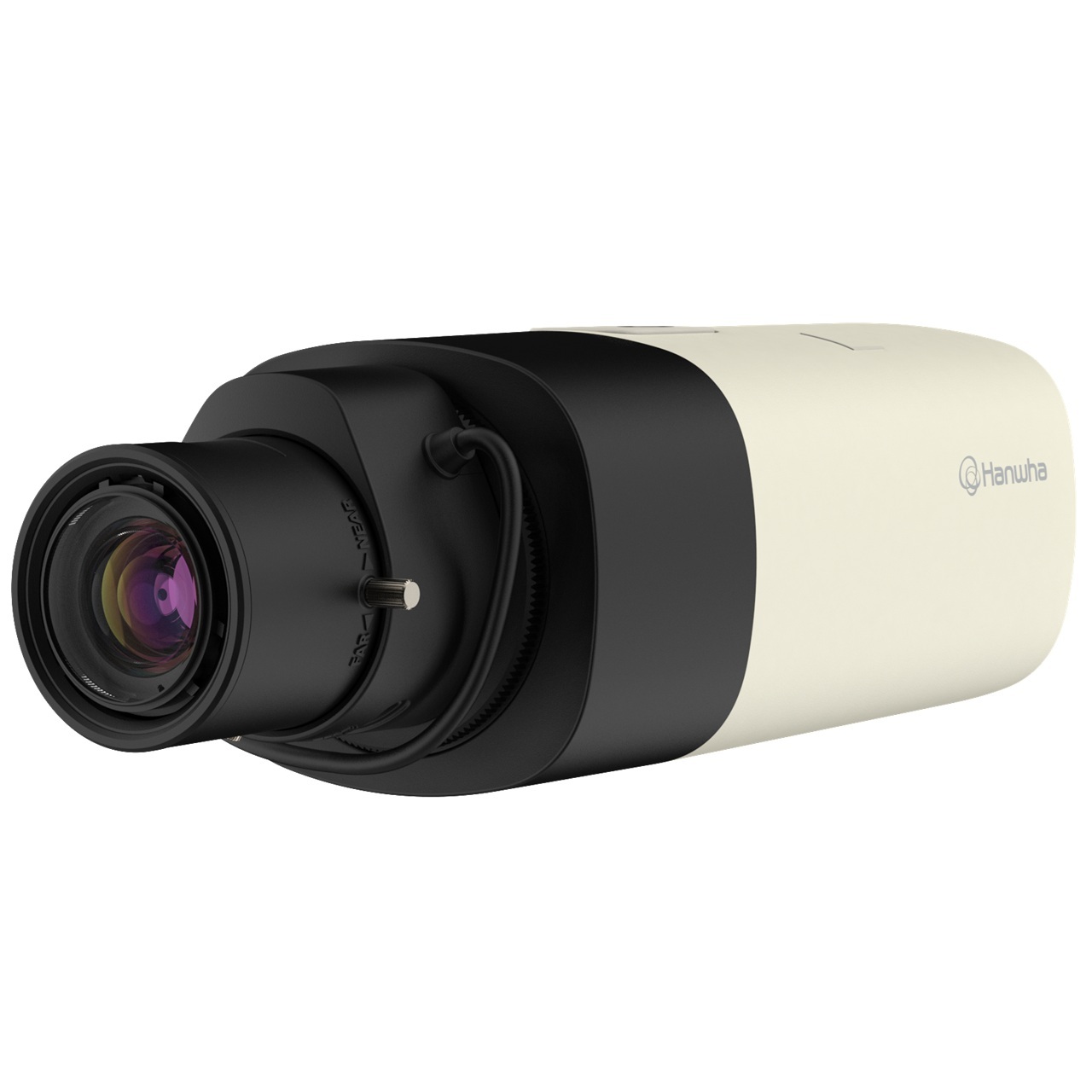

XNB-6000 Hanwha Techwin 60FPS @ 1920 x 1080 Outdoor Day/Night WDR Box IP Security Camera 12VDC/24VAC/POE - No Lens

Wisenet X powered by Wisenet 5 network box camera, 5MP @30fps WDR off/on, Simple focus, H.265/H.264/MJPEG, WiseStream II compression technology, 120dB WDR, USB port for easy installation, Advanced video analytics and sound classification, True D/N, Dual SD card, Hallway view, HLC, Defog detection with simple focus, DIS using a Gyro sensor, 12VDC/24VAC/PoE

Specifications

Video

• Imaging Device- 1/2.8" 2M CMOS
• Total Pixels- 1,945(H) x 1,109(V) 2.16M
• Effective Pixels- 1,945(H) x 1,097(V) 2.13M
• Scanning System- Progressive Scan
• Min. Illumination- Color : 0.07Lux (F1.2, 1/30sec), B/W : 0.007Lux (F1.2, 1/30sec)
• S / N Ratio- 50dB
• Video Out- CVBS : 1.0 Vpp / 75O composite, 720 x 480(N), 720 x 576(P), for installation USB : micro USB type B, 1280 x 720 for installation

Lens

• Focus Control- Simple focus / Manual, Remote control via network, Button control (Manual, Simple focus)
• Lens Type- Manual / DC auto iris, P-Iris
• Mount Type - C / CS

Operational

• Camera Title-
  • Off / On (Displayed up to 85 characters)
  • W/W : English / Numeric / Special characters
  • China : English / Numeric / Special / Chinese characters
  • Common : Multi-line (Max. 5), Color (Grey / Green / Red / Blue / Black / White), Transparency, Auto scale by resolution
• Day & Night- Auto (ICR) / Color / B/W / External / Schedule
• Backlight Compensation- Off / BLC / HLC (Masking / Dimming), WDR
• Wide Dynamic Range- 150dB
• Contrast Enhancement- SSDR (Off / On)
• Digital Noise Reduction- SSNRV (2D+3D noise filter) (Off / On)
• Digital Image Stabilization- Off / On (Built-in Gyro sensor)
• Defog- Off / Auto (Input from fog detection) / Manual
• Motion Detection- Off / On (8ea, 8point polygonal zones), Handover
• Privacy Masking- Off / On (32ea, Polygonal) - Color : Grey / Green / Red / Blue / Black / White, Mosaic
• Gain Control- Off / Low / Middle / High / Manual
• White Balance- ATW / AWC / Manual / Indoor / Outdoor (Included mercury & Sodium)
• Contrast- Level adjusment
• LDC (Lens Distortion Correction)- Off / On (5 levels with min / max)
• Electronic Shutter Speed- Minimum / Maximum / Anti flicker (2 ~ 1/12,000sec)
• Digital PTZ- 24x, Digital PTZ (Preset, Group)
• Flip / Mirror- Off / On, Hallway view : 90°/270°
• Video & Audio Analytics- Tampering, Loitering, Directional detection, Defocus detection, Fog detection, Virtual line, Enter / Exit, (Dis)Appear, Audio detection, Face detection, Motion detection, Digital auto tracking, Sound classification

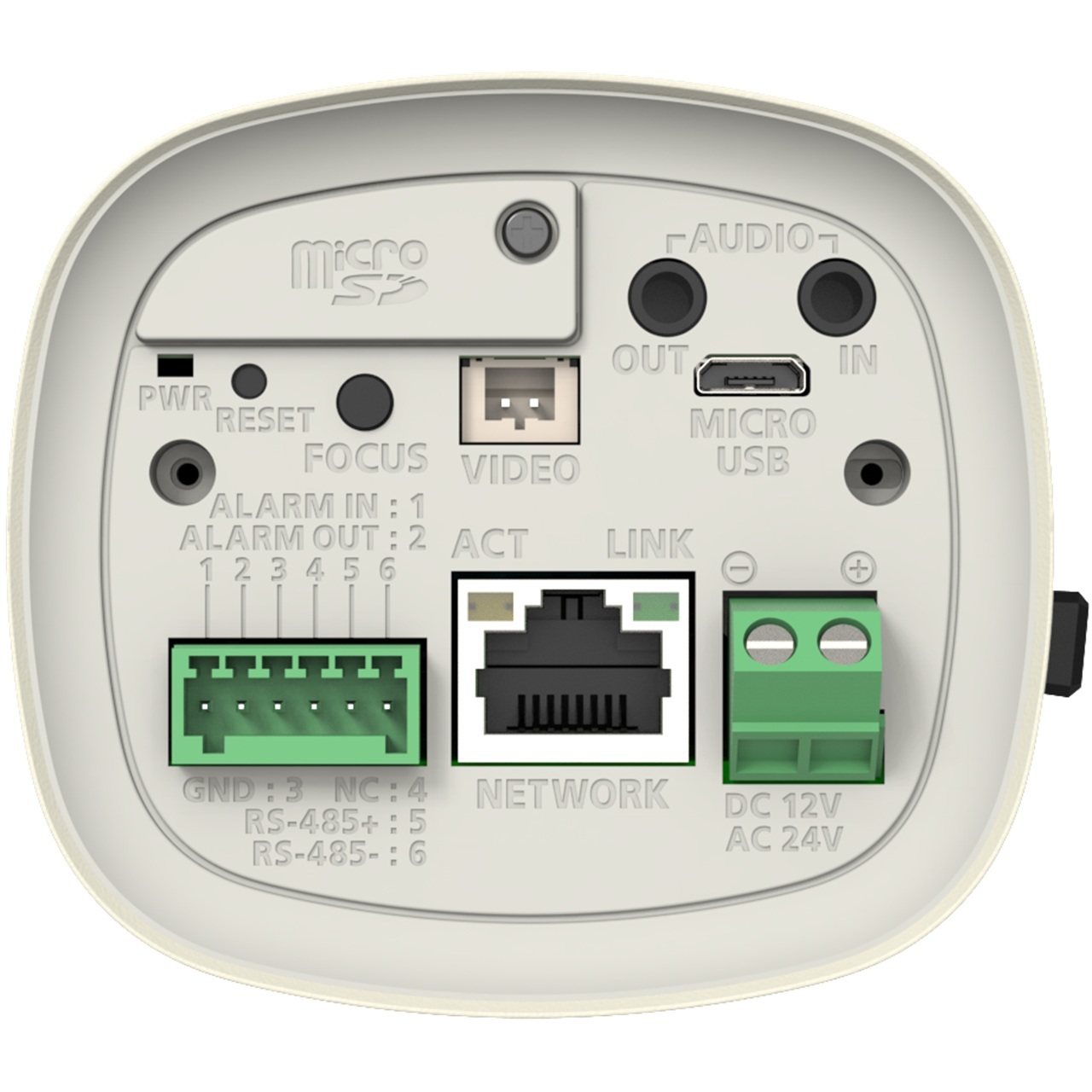

• Alarm I/O- Input 1ea / Output 1ea
• Alarm Triggers- Alarm input, Motion detection, Video & Audio analytics, Network disconnect
• Alarm Events- File upload via FTP, E-mail, Notification via E-mail, Local storage (SD/SDHC/SDXC) or NAS recording at event triggers, External output, DPTZ preset
• Pixel Counter- Support

Network

• Ethernet- RJ-45 (10/100BASE-T)
• Video Compression Format- H.265 / H.264 (MPEG-4 part 10/AVC) : Main / Baseline / High, MJPEG
• Resolution- 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600,800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240
• Max. Framerate- H.265 / H.264 : Max. 30fps at all resolutions, MJPEG : Max. 30fps
• Smart Codec- Manual mode (Area-based : 5ea)
• WiseStream II- Support
• Video Quality Adjustment- H.265 / H.264 : Target bitrate level control, MJPEG : Target bitrate level control
• Bitrate Control Method- H.265 / H.264 : CBR or VBR, MJPEG : VBR
• Streaming Capability- Multiple streaming (Up to 10 profiles)
• Audio In- Selectable (Mic in / Line in), Supply voltage : 2.5V DC (4mA), Input impedance : approx. 2K Ohm
• Audio Out- Line out, Max output level : 1Vrms
• Audio Compression Format- G.711 u-law/G.726 selectable, G.726 (ADPCM) 8KHz, G.711 8KHz G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps, AAC-LC : 48Kbps at 8/16/32/48KHz
• Audio Communication- Bi-directional (2-way)
• IP- IPv4, IPv6
• Protocol- TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
• Security- HTTPS(SSL) login authentication, Digest login authentication IP address filtering, User access log, 802.1X authentication (EAP-TLS, EAP-LEAP)
• Streaming Method- Unicast / Multicast
• Max. User Access- 20 users at unicast mode
• Edge Storage- SD/SDHC/SDXC 2slot (Up to 512GB) - Continuous recording (1st slot to 2nd slot) NAS (Network Attached Storage), Local PC for instant recording
• Application Programming Interface- ONVIF profile S/G, SUNAPI (HTTP API), Wisenet Open Platform
• Webpage Language- English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
• Web Viewer-
  • Supported OS : Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12
  • Non-plugin Webviewer
  • Supported Browser : Google Chrome 54, MS Edge 38, Mozilla Firefox 49( Window 64bit only), Apple Safari 9 * Mac OS X only
  • Plug-in Webviewer
  • Supported Browser : MS Explore 11, Apple Safari 9 * Mac OS X only
• Central Management Software- SmartViewer, SSM

Environmental

• Operating Temperature / Humidity- 10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH
• Storage Temperature / Humidity- 50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH

Electrical

• Input Voltage / Current- 24V AC ±10%, 12V DC ±10%, PoE (IEEE802.3af)
• Power Consumption- Max. 6.5W (12VDC), Max. 7.5W (PoE), Max. 8W (24VAC)

Mechanical

• Color / Material- Black, Ivory / Plastic
• Dimensions (WxH)- 73.1 x 66.6 x 147.8mm (2.88" x 2.62" x 5.82")
• Weight- 420g (0.93lb)
