PNM-7002VD Hanwha Techwin 2.4mm 60FPS @ 4MP Outdoor Day/Night WDR Dome IP Security Camera PoE

Specifications

Video

• Resolution - 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
• Maximum Framerate - H.265/H.264: 2MP Max. 60fps/50fps(60Hz/50Hz), MJPEG: Max. 30fps/25fps(60Hz/50Hz)
• Video Out - CVBS : 1.0 Vp-p / 75Ω composite, 720x480 for installation

Lens

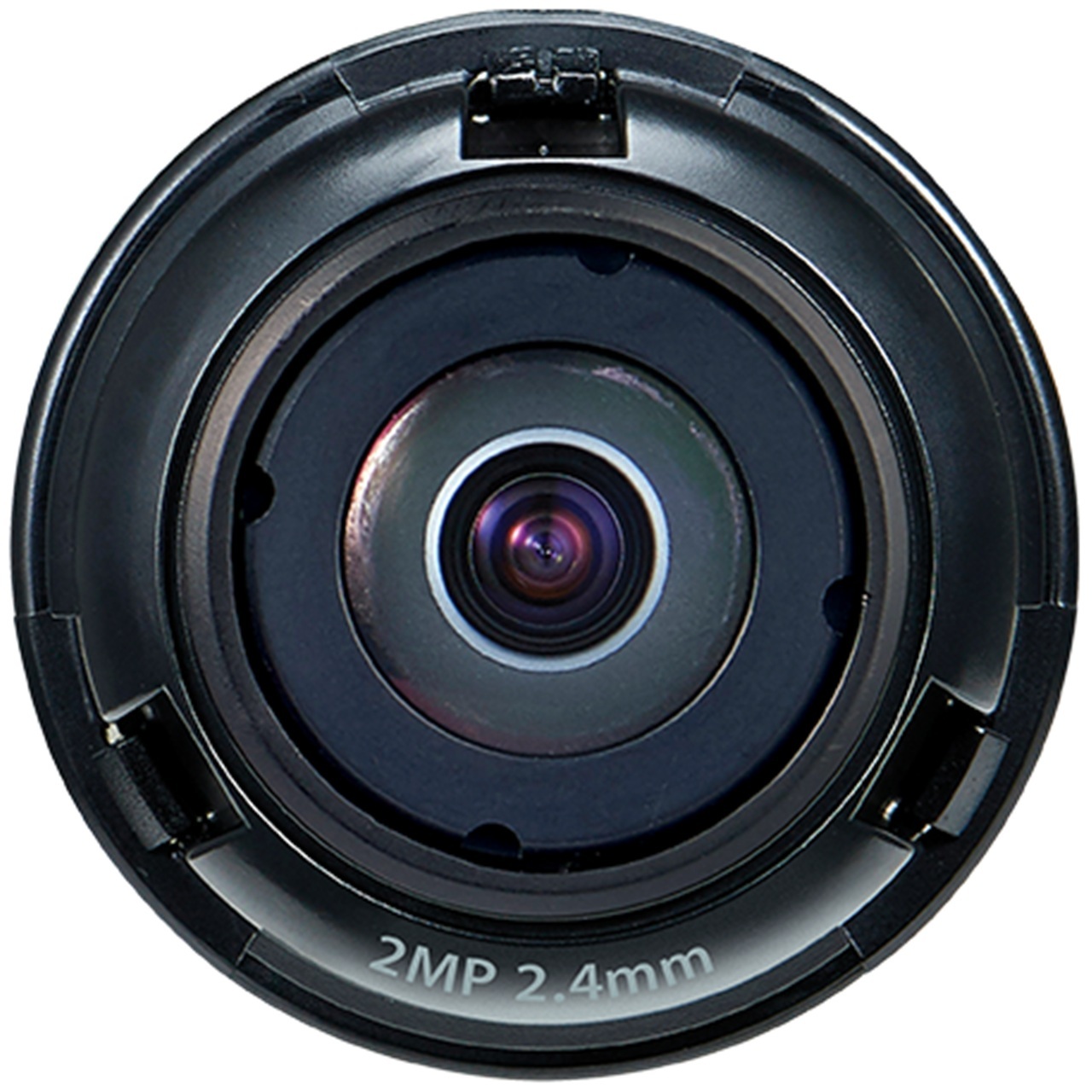

• Optional Lens - SLA-2M2402D(2MP 2.4mm), SLA-2M2802D(2MP 2.8mm), SLA-2M3602D(2MP 3.6mm), SLA-2M6002D(2MP 6.0mm)

Operational

• Camera Title - Displayed up to 85 characters
• Day & Night - Auto(Electrical)
• Backlight Compensation - BLC, HLC, WDR, SSDR
• Wide Dynamic Range - 150dB
• Digital Noise Reduction - SSNR Ⅴ
• Digital Image Stabilization - Support
• Defog - Support
• Motion Detection - 8ea, 8point polygonal zones
• Privacy Masking - 32ea, polygonal zones: Color: Grey/Green/Red/Blue/Black/White, Mosaic
• Gain Control - Low / Middle / High
• White Balance - ATW / AWC / Manual / Indoor / Outdoor
• LDC - Support
• Electronic Shutter Speed - Minimum / Maximum / Anti flicker (2~1/12,000sec)
• Video Rotation - Flip, Mirror, Hallway view(90˚/270˚)
• Analytics - Defocus detection, Directional detection, Face detection, Fog detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line
• Alarm Triggers - Analytics, Network disconnect
• Alarm Events - File upload via FTP and e-mail, Notification via e-mail, SD/SDHC/SDXC recording at event triggers

Network

• Ethernet - RJ-45(10/100/1000BASE-T)
• Video Compression - H.265/H.264: Main/Baseline/High, MJPEG
• Smart Codec - Manual(5ea area), WiseStreamⅡ
• Bitrate Control - H.264/H.265: CBR or VBR, MJPEG: VBR
• Streaming - Unicast(20 users) / Multicast, Multiple streaming(Up to 10 profiles)
• Protocol - IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP
• Security - HTTPS(SSL) Login Authentication, Digest Login Authentication, IP Address Filtering, User access log, 802.1X Authentication(EAP-TLS, EAP-LEAP)
• Application Programming Interface - ONVIF Profile S/T, SUNAPI(HTTP API)

General

• Webpage Language - English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
• Edge Storage - Micro SD/SDHC/SDXC 4 slots maximum 256GB(Each channel)
• Memory - 3GB RAM, 768MB Flash

Environmental & Electrical

• Operating Temperature / Humidity - -40°F ~ +131°F (-40°C ~ +55°C) / Less than 90% RH
• Storage Temperature / Humidity - -58°F ~ +140°F (-50°C ~ +60°C) / Less than 90% RH
• Certification - IP66, IK10
• Input Voltage - PoE+(IEEE802.3at, Class3)
• Power Consumption - Typical: 12.00W, Maximum: 12.95W

Mechanical

• Color / Material - White / Aluminum
• RAL Code - RAL9003
• Product dimensions / weight - 7.78x3.31" (197.6x84mm), 2.76lb (1250g)
