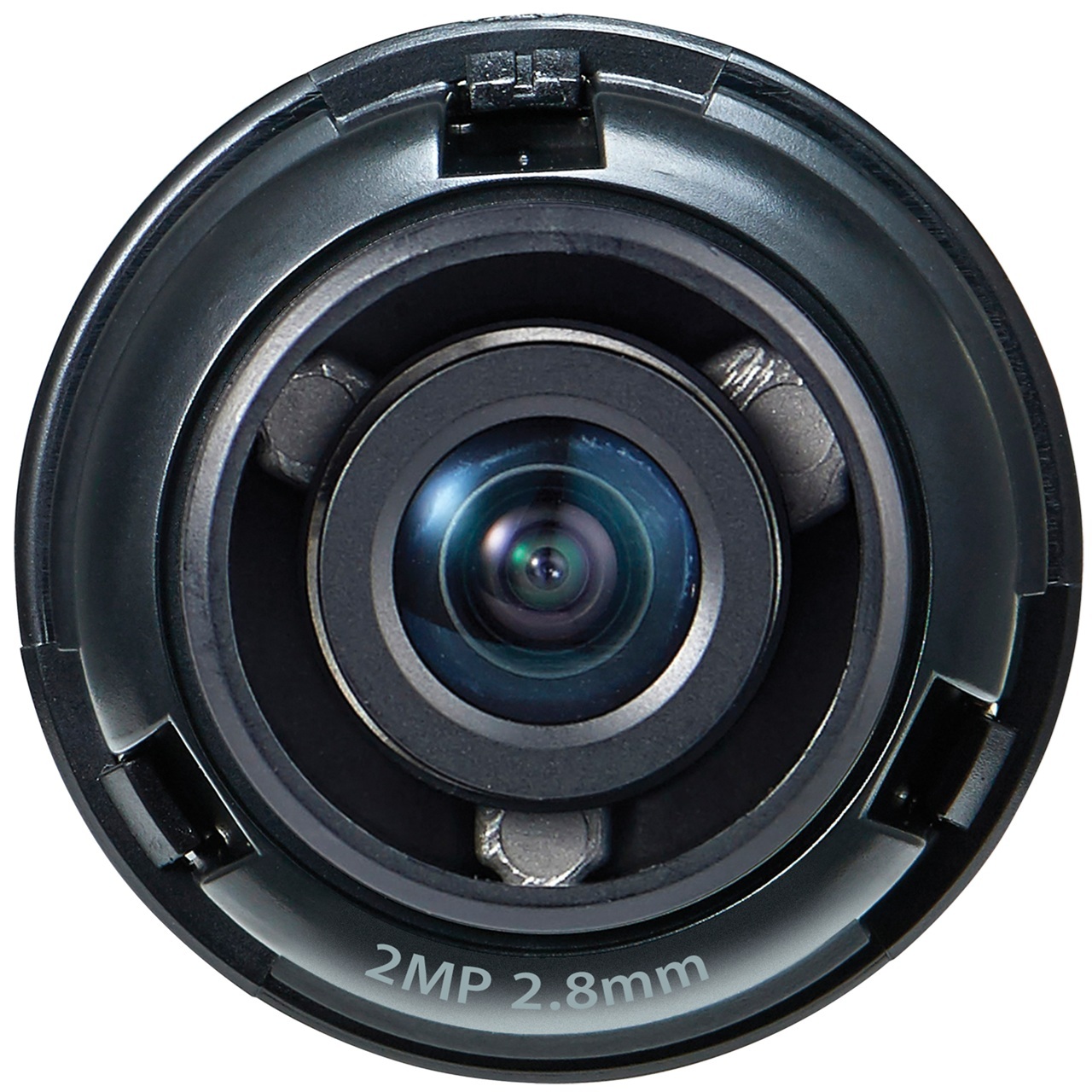

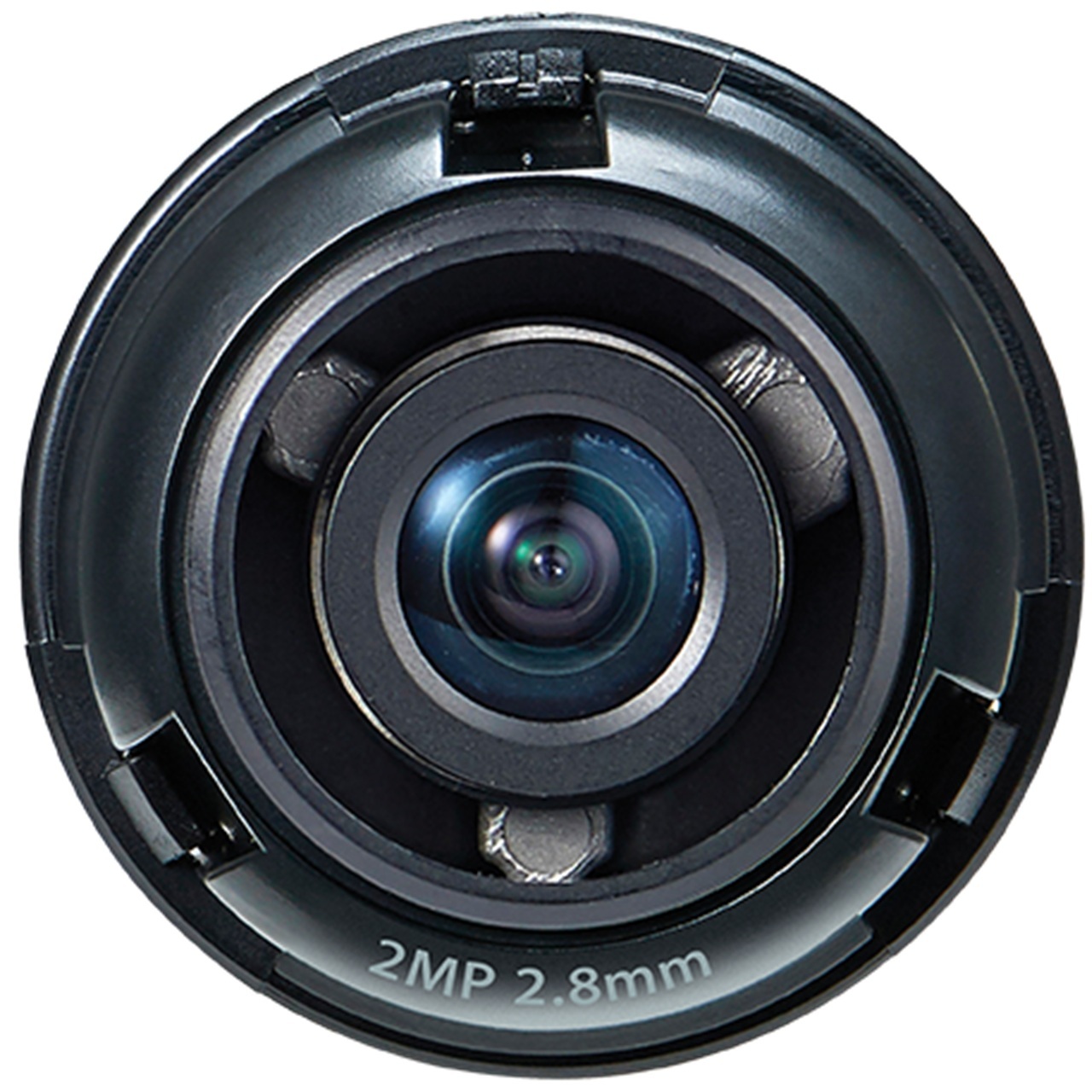

SLA-2M2802D Hanwha Vision 2.8mm Lens 2MP 1/2.8" Format for PNM-7002VD

SLA-2M2802D Hanwha Vision 2.8mm Lens 2MP 1/2.8" Format for PNM-7002VD	SLA-2M2802D Hanwha Vision 2.8mm Lens 2MP 1/2.8" Format for PNM-7002VD
(Click to see larger image and other views)

SLA-2M2802D Hanwha Vision 2.8mm Lens 2MP 1/2.8" Format for PNM-7002VD	SLA-2M2802D Hanwha Vision 2.8mm Lens 2MP 1/2.8" Format for PNM-7002VD
(Click to see larger image and other views)

SKU: SLA-2M2802D

Brand: Hanwha Vision

PNM-7002VD Lens module

Features:

1/2.8" 2MP CMOS
2.8mm fixed focal lens
FoV: H: 107.4, V: 62.2

More details...

MPN: SLA-2M2802D
EAN: 8801089193520

MSRP Price: $85.00

Web Price: $85.00

Quantity:

Add to List

DWG Dealer Program Become a DWG Dealer to see your pricing. Dealer pricing, quoting, volume discounts, and sales support on thousands of products.

Become a DWG Dealer → DWG Dealer Sign In

Product Details

Specifications

Video

Imaging Device - 1/2.8" CMOS
Min. Illumination - Color: 0.055Lux(F2.0, 1/30sec)

Lens

Focal Length (Zoom Ratio) - 2.8mm fixed focal
Max. Aperture Ratio - F2.0
Angular Field of View - H:107.4˚, V:62.2˚, D:122.0˚
Focus Control - Fixed

Pan / Tilt / Rotate

Pan / Tilt / Rotate Range - -176˚~+176˚ / 0˚~51˚ / -90˚~+90˚

Mechanical

Color/ Material - Black / Plastic
Product dimensions / weight - Ø35.5x35.9mm, 30g

SLA-2M2802D Specifications PDF
