TS-832PX-4G-US QNAP 8-Bay NAS 1.7GHz Alpine AL-324 Quad-core 4GB RAM - No HDD

SKU: TS-832PX-4G-US
Brand: QNAP

The quad-core 1.7GHz TS-832PX features eight 3.5-inch SATA 6GB/s drive bays, providing huge storage potential for a wide range of applications and everyday usage. With two 10GbE SFP+ and two 2.5GbE LAN ports, the TS-832PX supports next-generation networks for empowering bandwidth-demanding applications and providing smoother file access and sharing. Various PCIe cards are also supported, including QM2 cards that provide M.2 SATA/NVMe SSD caching and Qtier auto-tiering storage to boost NAS performance.


Specifications


  • CPU - AnnapurnaLabs Alpine AL324 ARM Cortex-A57 quad-core 1.7GHz processor
  • CPU Architecture - 64-bit ARM
  • System Memory - 4 GB SODIMM DDR4(1 x 4 GB)
  • Maximum Memory - 16 GB (1 x 16 GB)
  • Memory Slot - 1 x SO-DIMM DDR4
  • Flash Memory - 512 MB (Dual boot OS protection)
  • Drive Bay - 8 x 3.5" SATA 6Gb/s, 3Gb/s
  • Drive Compatibility - 3.5-inch bays: 3.5-inch SATA hard disk drives, 2.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives
  • Hot-swappable - Yes
  • M.2 SSD Slot - Optional via a PCIe adapter
  • SSD Cache Acceleration Support - Yes
  • 2.5 Gigabit Ethernet Port (2.5G/1G/100M) - 2 (also support 10M)
  • 10 Gigabit Ethernet Port - 2 x 10GbE SFP+
  • Wake on LAN (WOL) - Yes
  • Jumbo Frame - Yes
  • PCIe Slot - 1 Slot 1: PCIe Gen 2 x2
  • USB 3.2 Gen 1 port - 3
  • Form Factor - Tower
  • LED Indicators - System Status, LAN, USB, HDD1~8
  • Buttons - Power, Reset, USB Copy
  • Dimensions (H x W x D) - 7.41 x 12.96 x 11.06 inch
  • Weight (Net) - 14.07 lbs
  • Weight (Gross) - 18.98 lbs
  • Operating temperature - 32F - 104F
  • Relative Humidity - 5-95% RH non-condensing, wet bulb: 80.6˚F
  • Power Supply Unit - 250W, 100-240V AC, 50/60Hz, 3.5A
  • Power Consumption: HDD Sleep Mode - 27.949 W
  • Power Consumption: Operating Mode, Typical - 50.858 W
  • Fan - System fan: 2 x 120mm, 12VDC CPU fan: 1 x 60mm
  • Sound Level - 19.6 db(A)
  • System Warning - Voice prompts or Buzzer
  • Kensington Security Slot - Yes
  • Max. Number of Concurrent Connections (CIFS) - 1500

TS-832PX-4G-US Specifications PDF

MPN: TS-832PX-4G-US
UPC: 885022020201
MSRP Price: $1,110.00
Web Price$1,110.00
Add to List
DWG Dealer Program Become a DWG Dealer to see your pricing. Dealer pricing, quoting, volume discounts, and sales support on thousands of products.
Become a DWG Dealer → DWG Dealer Sign In


Shop by Brand:
QNAP › QNAP Mid-range SMB
Check out some additional items that you may need to purchase with this product:
Check the check boxes next to the additional products that you would like to add to the shopping cart, then click on the "Add to Cart" button above. A check box is not shown if a product requires that you select an option or fill out a field. () indicates a required accessory.
LIC-NAS-EXTW-YELLOW-3Y QNAP Yellow Extended Warranty for 3 Additional Years

LIC-NAS-EXTW-YELLOW-3Y QNAP Yellow Extended Warranty for 3 Additional Years

MSRP Price: $199.00
Web Price $199.00
LIC-NAS-EXTW-YELLOW-3Y-EI QNAP Yellow Extended Warranty for 3 Additonal Years - Email Delivery

LIC-NAS-EXTW-YELLOW-3Y-EI QNAP Yellow Extended Warranty for 3 Additonal Years - Email Delivery

MSRP Price: $199.00
Web Price $199.00
QM2-2P10G1TB QNAP 2 x PCIe Gen3 NVMe SSD & 1 x 10GbE Port Expansion Card to Enhance Performance

QM2-2P10G1TB QNAP 2 x PCIe Gen3 NVMe SSD & 1 x 10GbE Port Expansion Card to Enhance Performance

MSRP Price: $244.00
Web Price $244.00
QM2-2P-244A Dual M.2 22110/2280 PCIe SSD expansion card (PCIe Gen2 x4), Low-profile bracket pre-loaded, Low-profile flat and Full-height are bundled

QM2-2P-244A Dual M.2 22110/2280 PCIe SSD expansion card (PCIe Gen2 x4), Low-profile bracket pre-loaded, Low-profile flat and Full-height are bundled

MSRP Price: $162.00
Web Price $162.00
QM2-2P2G2T QNAP QM2 series, 2 x PCIe 2280 M.2 SSD slots, PCIe Gen3 x 4 , 2 x Intel I225LM 2.5GbE NBASE-T Port

QM2-2P2G2T QNAP QM2 series, 2 x PCIe 2280 M.2 SSD slots, PCIe Gen3 x 4 , 2 x Intel I225LM 2.5GbE NBASE-T Port

MSRP Price: $195.00
Web Price $195.00
QM2-2S-220A QNAP Dual M.2 22110/2280 SATA SSD Expansion Card

QM2-2S-220A QNAP Dual M.2 22110/2280 SATA SSD Expansion Card

MSRP Price: $99.00
Web Price $99.00
QM2-2P-384A Qnap Dual M.2 PCIe SSD Expansion Card - Supports Up to 2 x M.2 2280/22110 Formfactor M.2 PCIe (Gen3 x 4) SSDs, PCIe (Gen3 x 8) Host Interface

QM2-2P-384A Qnap Dual M.2 PCIe SSD Expansion Card - Supports Up to 2 x M.2 2280/22110 Formfactor M.2 PCIe (Gen3 x 4) SSDs, PCIe (Gen3 x 8) Host Interface

MSRP Price: $233.00
Web Price $233.00
QM2-2P-344A Qnap Dual M.2 PCIe SSD Expansion Card - Supports Up to 2 x M.2 2280/22110 Formfactor M.2 PCIe (Gen3 x 4) SSDs, PCIe (Gen3 x 4) Host Interface

QM2-2P-344A Qnap Dual M.2 PCIe SSD Expansion Card - Supports Up to 2 x M.2 2280/22110 Formfactor M.2 PCIe (Gen3 x 4) SSDs, PCIe (Gen3 x 4) Host Interface

MSRP Price: $195.00
Web Price $195.00
QXG-2G1T-I225 QNAP Single Port 2.5GbE 4-Speed Network Card

QXG-2G1T-I225 QNAP Single Port 2.5GbE 4-Speed Network Card

MSRP Price: $88.00
Web Price $88.00
QXG-2G2T-I225 QNAP Dual Port 2.5GbE 4-Speed Network Card

QXG-2G2T-I225 QNAP Dual Port 2.5GbE 4-Speed Network Card

MSRP Price: $110.00
Web Price $110.00
QXG-5G2T-111C QNAP Dual Port 5GbE Multi-Gig Expansion Card

QXG-5G2T-111C QNAP Dual Port 5GbE Multi-Gig Expansion Card

MSRP Price: $155.00
Web Price $155.00
QXP-W6-AX200 QNAP WiFi 6 PCIe Wireless Card with Antenna & Brackets

QXP-W6-AX200 QNAP WiFi 6 PCIe Wireless Card with Antenna & Brackets

MSRP Price: $89.00
Web Price $89.00

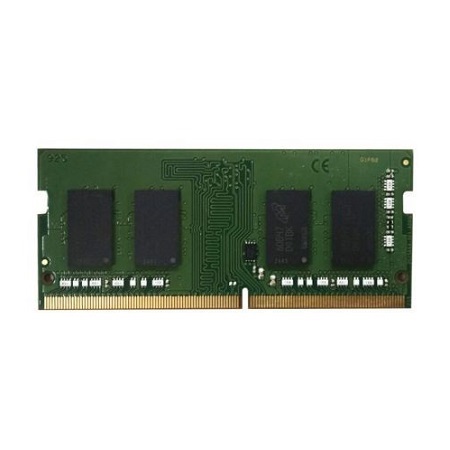

RAM-16GDR4K0-SO-2666 QNAP 16GB DDR4 RAM, 2666 MHz, SO-DIMM, 260 pin, K0 Version

RAM-16GDR4K0-SO-2666 QNAP 16GB DDR4 RAM, 2666 MHz, SO-DIMM, 260 pin, K0 Version

MSRP Price: $260.00
Web Price $260.00

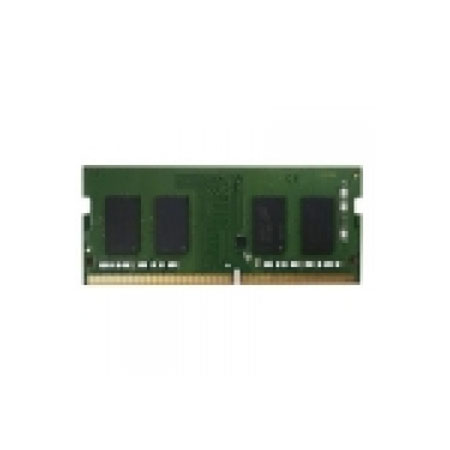

RAM-2GDR4P0-SO-2400 QNAP 2GB DDR4 RAM 2400 MHz SO-DIMM 260 pin P0 version
