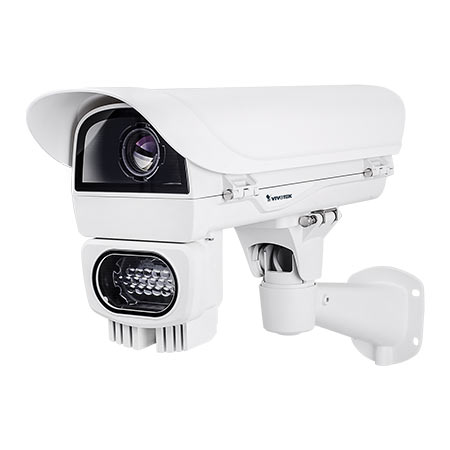

IP9165-LPRKIT-S-40MM Vivotek 12~40mm Varifocal 60FPS @ 1920 x 1080 Outdoor IR Day/Night WDR Pro LPR IP Security Camera Kit 24VAC/24VDC - Special Order


Special Order/Non-Cancelable/Non-Returnable

  • Capture Vehicle Speed up to 60MPH (90km/hr)
  • Embedded LPR Software for Urban/Road Applications
  • Supports License Plates from over 70+ Countries
  • Taking Snapshots from Another Related Overview Camera as Evidence Images
  • Supreme Anti-Glare Capability
  • One Camera Covers Dual Lane
  • Certified by Numerous LPR Software Manufacturers around the World
  • Vandal-Proof IK10-rated and Weather-Proof IP68-rated Housing
More details...
Availability: Special Order
MSRP Price: $3,151.44
Web Price: $3,151.44
Save to my Wish List
Product Details

VIVOTEKs IP9165-LPR Kit (Street) is a standalone LPR camera system featuring a built-in license plate recognition system, supporting white-lists and black-lists for license plate verification. It also offers various APIs for integration with 3rd party systems such as traffic management, toll collection, and weighbridge systems. The IP9165-LPR Kit (Street) is an ideal option for city surveillance, residential communities, and expressway toll-management applications.

With the adoption of snap-in corresponding IR LEDs and a built-in head-light filter, the IP9165-LPR Kit (Street) delivers the best results for license plate recognition in both the highest levels of glare and in the darkest hours of the night. Empowered with VIVOTEK LPR Scene Mode, which provides different exposure levels to avoid overexposure in some lighting conditions, the Kit can capture clear plate images from the vehicles moving at speeds of up to 60MPH (90km/hr). Value-added features such as DIS (Digital Image Stabilization) and i-CS lens (intelligent-CS) can be easily installed and adjusted to provide the perfect LPR solution.

Additionally, in order to provide precise, reliable and authoritative data for use as evidence. The IP9165-LPR Kit can simultaneously combine the LPR result and a snapshot of the linked camera. This feature is beneficial for law enforcement agencies, such as the police and government.


  • Model - IP9165-LPR Kit (Street, 12-40mm, Snap-in IR)
  • Max. Speed - 60MPH (90km/hr)
  • IR Threshold - IR on: 300 Lux IR off: 600 Lux RS485 configurable
  • Shutter Time - 1/1000 to 1/10,000 sec
  • Max. Shutter Time - 1/5 to 1/32,000 sec.
  • IR Illuminators - 48W, 850nm, 10 ~ 30 remote control beam angle Snap-in IR illuminator
  • Capture Range - Up to 35 meters
  • Captured Lanes - Dual Lane *Suggest width per lane: 3.5~4M
  • Power Input - AC 24V or DC 24V
  • Power Consumption - Max. 78 W (IR on), Max. 30 W (IR off), Suggested Power: DC 24V or AC 24V / 3.5A
  • Weight - 6.2 kg
  • Housing - Weather-proof IP68-rated housing, Vandal-proof IK10-rated housing
  • Operating Temperature - Starting Temperature: 32F ~ 140F, Working Temperature: -4F ~ 140F, -40F ~ 140F with optional cold start heater
  • Humidity - 90%


  • Compression - H.265, H.264, MJPEG
  • Maximum Streams - 4 simultaneous streams
  • Image Settings - General settings: video title and time stamp overlay, video orientation (flip, mirror, rotation), day/ night settings; IR control: illuminators, spectrum mode, anti-overexposure; Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR, Lens distortion correction, DIS, scene mode (LPC-parking, LPC-street); Exposure: BLC, HLC, exposure control (exposure level, iris adjustment, exposure time, gain control, iris mode), AE speed adjustment, WDR; Focus: zoom, focus; Privacy mask; Scheduled profile settings


  • Users - Live viewing for up to 10 clients
  • Protocols - Camera: 802.1X, ARP, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP Urban ANPR: Socket client, Socket server, ONVIF event, FTP/FTPS, HTTP/HTTPS
  • Interface - 10 Base-T/100 Base-TX/1000 Base-T Ethernet (RJ-45) *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard
  • ONVIF - Profile G, S supported, specification available at

Solution Integration

  • Video Motion Detection - Five-window video motion detection
  • Embedded Software - VIVOTEK ANPR
  • VADP Package - Trend Micro IoT Security

Intelligent Video

  • Pan/Tilt/Zoom Functionalities - ePTZ: 48x digital zoom (4x on IE plug-in, 12x built in)
  • On-board Storage - Slot type: MicroSD/SDHC/SDXC card slot (Max. SD card capacity: 128GB) Seamless Recording


  • Maximum Frame Rate - 60 fps @ 1920 x 1080
  • S/N Ratio - 66.2 dB

Alarm and Event

  • Alarm Triggers - Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, advanced motion detection, MicroSD card life expectancy
  • Alarm Events - Event notification using digital output, HTTP, SMTP, FTP, NAS server and MicroSD card File upload via HTTP, SMTP, FTP, NAS server and MicroSD card


  • IP Camera Connectors - RJ-45 cable connector for Network/PoE connection, Audio input, Audio output, DC 12V/AC 24V power input, Digital input, Digital output, RS485, BNC
  • Safety Certifications - IP Camera: CE, LVD, FCC Class B, VCCI, C-Tick, UL
  • Warranty - 36 months

System Requirements

  • Operating System - Microsoft Windows 8/7
  • Web Browser - Mozilla Firefox 7~43 (streaming only), Internet Explorer 10/11
  • Other Players - VLC: 1.1.11 or above, QuickTime: 7 or above

Technical Specifications - Network Camera

  • Model - IP9165-LPR
  • CPU - Multimedia SoC (System-on-Chip)
  • Flash - 512MB
  • RAM - 1GB

Camera Features

  • Image Sensor - 1/2" Progressive CMOS
  • Maximum Resolution - 1920x1080
  • Lens Type - Vari-focal, Remote Back Focus
  • Focal Length - f = 12 ~ 40 mm
  • Aperture - F1.8 ~ F2.3
  • Iris type - P-iris (DC-iris reserved)
  • Field of View - 11.6 ~ 34.2 (Horizontal), 6.6 ~ 18.7 (Vertical), 13.3 ~ 39.8 (Diagonal)
  • WDR Technology - WDR Pro II
  • Day/Night - Removable IR-cut filter for day & night function (Deadlight filer design for Anti-Glare)
  • Pan/Tilt/Zoom Functionalities - ePTZ: 48x digital zoom (4x on IE plug-in, 12x built in)
  • On-board Storage - Built-in 32GB MicroSD card for LPR images Slot type: MicroSD/SDHC/SDXC card slot (Max. SD card capacity: 128GB) Seamless Recording


  • Maximum Frame Rate - 60fps @ 1920 x 1080
  • S/N Ratio - 66.2 dB
  • Dynamic Range - 140 dB


  • Audio Capability - Two-way Audio
  • Compression - G.711, G.726
  • Interface - External microphone input, External line output

Technical Specifications - IR Illuminator

  • Model - AI-109
  • Max. Distance - Up to 35meters for LPR street application
  • Beam Angle - 10 ~ 30 remote adjustable
  • Input Power - 24VAC/28VDC with AE-23A enclosure
  • Power Consumption - 48W
  • Weight - 450 g
  • Housing - Weather-proof IP68-rated housing, Vandal-proof IK10-rated housing
  • Operating Temperature - -40 C ~ 50 C (-40F ~ 122F)
  • Color - White
  • Wavelength - 850nm
  • Dimensions - 135 x 106 x 111 mm
  • Included Accessories - CA80I8-2040: U-Type Bracket (134 x 34 x 81.5 mm)
  • Certifications - CE, FCC Class B, EN62471
  • Integrated Control - Built-in photocell for automatic IR on/off

IP9165-LPRKIT-S-40MM Specifications PDF
