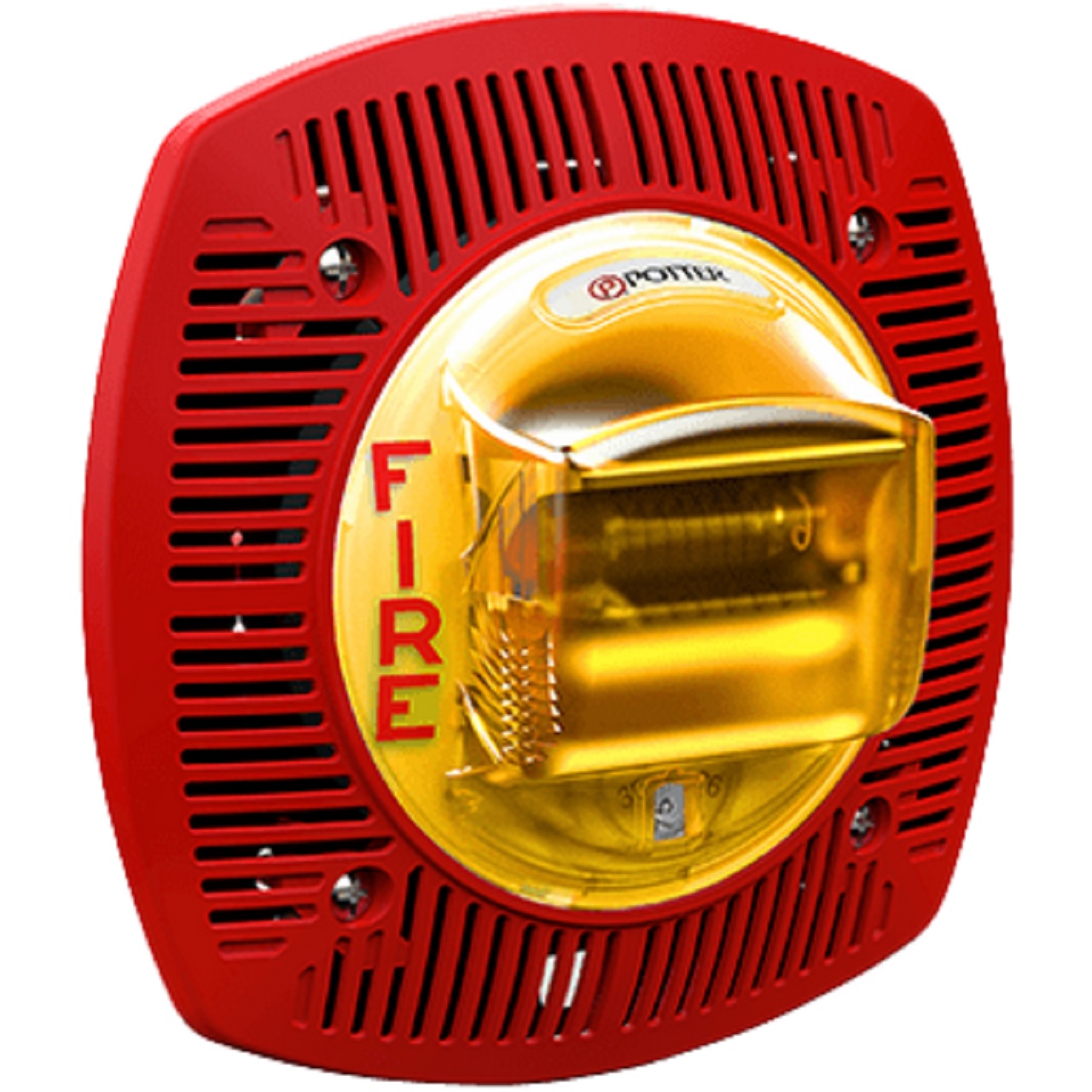

4890296 Potter CSPKSTR-24RRP-WP Weather Proof Red Strobe Speaker - No Label - Red - Non-Returnable

Features

• 24VDC fixed 15/75 candela strobe
• CSPKSTR-24-WP is shipped with outdoor listed back box, potter SpKRBB
• Lens colors available: amber, blue, green, red
• Amber versions come with ALERT wording
• Speaker voltage 25 or 70.7 VRMs standard, field selectable
• Field selectable power taps: 1/8W, 1/4W, 1/2W, 1W, 2W, 4W
• Xenon strobe maintains constant flash rate (1Hz)
• High quality dBA output (intelligible)
• Frequency range 400-4000 Hz
• Screw Terminals, separate in/out wiring (18-12 gauge)
• Tamperproof grill
• Faceplate available in red or off-white
• Product includes a 5 year warranty

Application

The Potter CSPKSTR-24-WP is an outdoor, wall mount, low profile, field adjustable speaker/strobe that offers a quality speaker and visual signal. applications include severe weather, evacuation, and emergency response.

Description

The CSPKSTR-24-WP Series offers a 24VDC, fixed 15/75 candela strobe in lens colors of amber, blue, green, and red. The CSPKSTR-24-WP provides a 25 or 70.7 VRMs speaker with field selectable power taps of 1/8W, 1/4W, 1/2W, 1W, 2W, or 4W. The strobes can be synchronized using the Potter AVSM Synchronization Control Module, FACP, or power supplies that produce a Gentex Synchronization protocol.

Included with the CSpKSTR-24-Wp Series is the SpKRBB outdoor back box. The SPKRBB provides protection from weather related conditions and allows the necessary full candela output.

The CSPKSTR-24-WP body is constructed of high impact textured plastic.

Architect and Engineering Specifications

The alarm speaker shall be Potter CSPKSTR-24-WP Colored Lens Series or equivalent. The speaker shall be capable of producing alarm tones or voice on all 25 or 70.7 VRMs audio systems. The speaker shall provide incremental tap settings of 1/8, 1/4, 1/2, 1, 2, or 4 watts. Minimum dBA ratings at 1/4 watt shall be 76.7 dBA and at 4 watts 87.9dBA. Tap settings shall be adjustable with field selectable jumper pins. The speaker shall also have an optional visual signal capability.

The visual signal shall have a 1 Hz flash rate regardless of input voltage. All field wiring connections shall be made via separate in-out terminal connections.

The appliance has extended temperature range of -31°F to 150°F (-35° to 66°C). The appliance shall satisfy all outdoor and severe environment applications. The SPKRBB back box includes a gasket that must be inserted between the box and device. There are drain holes in the back box to allow for drainage, the seal on the SPKRBB is not water tight. The speaker/strobe shall be ANSI/UL listed and comply with all local, state and federal fire alarm codes/standards.

Technical Specifications

• Speaker Operating Voltage - 25VRMs or 70.7VRMs
• Strobe Operating Voltage - 16-33VDC
• Synchronization Module - Potter AVSM
• Environmental Limitations - -31°F to 150°F
• Unit Dimensions - 6.1” (15.494cm) square X 1.88” (4.7752cm) deep
• Back Box - 4” X 2 1/8” deep box or Potter SPKRBB surface back box
• Shipping Weight - 1.5 lbs
