IP9165-LPCKIT-S1-V2 Vivotek 12~40mm Varifocal 60FPS @ 1920 x 1080 Outdoor IR Day/Night WDR Pro LPC IP Security Camera Kit 24VAC/24VDC - Special Order

VIVOTEK's IP9165-LPC Kit represents a total solution for LPC (License Plate Capture) applications by leveraging the top tier image quality and traffic monitoring ability of the IP9165-LPC box camera. The CaMate IR Illuminator utilizing CVA Tech provides adjustable beam angles for different distances.

Specifications

• Model - IP9165-LPC Kit (Street): 60MPH (90 km/hr), wwith CM48I8-2040 IR
• Max. Speed - IP9165-LPC Kit (Street)/LPC-A Kit (Street): 60MPH (90 km/hr)
• IR Threshold - IR on: 300 Lux, IR off: 600 Lux, RS485 configurable
• Shutter Time - IP9165-LPC Kit (Street)/LPC-A Kit (Street): 1/1,000 to 1/10,000 sec.
• Max. Shutter Time - 1/5 to 1/32,000 sec.
• IR Illuminators - IP9165-LPC Kit (Street): CM48I8-2040 *1, 48W, 20° ~ 40° adjustable beam
• Capture Range - Up to 35 meters *Suggested Distance: 10 ~ 20m
• Captured Lanes - IP9165-LPC-A Kit (Street): Road-side: 1 Lane Gantry: 2 Lanes *Suggested width per lane: 3.5 ~ 4M
• Power Input - AC/DC 24V
• Power Consumption - IP9165-LPC Kit (Street)/LPC-A Kit (Street): Max. 78 W, AC/DC 24V Suggested Power: DC 24V or AC 24V / 3.5A
• Weight - IP9165-LPC-A Kit (Street): 6,200 g
• Housing - Weather-proof IP68-rated housing, Vandal-proof IK10-rated housing
• Operating Temperature - Starting Temperature: 32°F ~ 140°F, Working Temperature: -4°F ~ 140°F, -40°F ~ 140°F with optional cold start heater
• Humidity - 90%

Video

• Compression - H.265, H.264, MJPEG
• Maximum Streams - 4 simultaneous streams
• Image Settings - Adjustable image size, quality and bitrate;Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, AE speed, privacy masks; Scheduled profile settings, HLC, defog, 3DNR, DIS, video rotation, lens profile, LPC scene mode

Network

• Users - Live viewing for up to 10 clients
• Protocols - IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, CIFS/SMB, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, TLS
• Interface - 10 Base-T/100 Base-TX/1000 Base-T Ethernet (RJ-45) *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard
• ONVIF - Supported, specification available at www.onvif.org

Intelligent Video

• Pan/Tilt/Zoom Functionalities - ePTZ: 48x digital zoom (4x on IE plug-in, 12x built in)
• On-board Storage - Slot type: MicroSD/SDHC/SDXC card slot (Max. SD card capacity: 128GB) Seamless Recording

Video

• Maximum Frame Rate - 60 fps @ 1920 x 1080
• S/N Ratio - 66.2 dB

Alarm and Event

• Alarm Triggers - Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, advanced motion detection, MicroSD card life expectancy
• Alarm Events - Event notification using digital output, HTTP, SMTP, FTP, NAS server and MicroSD card File upload via HTTP, SMTP, FTP, NAS server and MicroSD card

General

• IP Camera Connectors - RJ-45 cable connector for Network/PoE connection, Audio input, Audio output, DC 12V/AC 24V power input, Digital input, Digital output, RS485, BNC
• Safety Certifications - IP Camera: CE, LVD, FCC Class B, VCCI, C-Tick, UL
• Warranty - 36 months

System Requirements

• Operating System - Microsoft Windows 8/7
• Web Browser - Mozilla Firefox 7~43 (streaming only), Internet Explorer 10/11
• Other Players - VLC: 1.1.11 or above, QuickTime: 7 or above

Technical Specifications - Network Camera

• Model - IP9165-LPC
• CPU - Multimedia SoC (System-on-Chip)
• Flash - 128MB
• RAM - 1GB

Camera Features

• Image Sensor - 1/2" Progressive CMOS
• Maximum Resolution - 1920x1080
• Lens Type - Vari-focal, Remote Back Focus
• Focal Length - f = 12 ~ 40 mm
• Aperture - F1.8 ~ F2.3
• Iris type - P-iris (i-CS/DC-iris reserved)
• Field of View - 11.6° ~ 34.2° (Horizontal), 6.6° ~ 18.7° (Vertical), 13.3° ~ 39.8° (Diagonal)
• WDR Technology - WDR Pro II
• Day/Night - Removable IR-cut filter for day & night function (Deadlight filer design for Anti-Glare)
• Pan/Tilt/Zoom Functionalities - ePTZ: 48x digital zoom (4x on IE plug-in, 12x built in)
• On-board Storage - Slot type: MicroSD/SDHC/SDXC card slot (Max. SD card capacity:128GB) Seamless Recording

Video

• Maximum Frame Rate - 60fps @ 1920 x 1080
• S/N Ratio - 66.2 dB
• Dynamic Range - 140 dB

Audio

• Audio Capability - Two-way Audio
• Compression - G.711, G.726
• Interface - External microphone input, External line output

Technical Specifications - IR Illuminator

• Model - AI-109
• Max. Distance - AI-109: 150 ~ 350 meters
• Beam Angle - AI-109: 10° ~ 30° remote adjustable

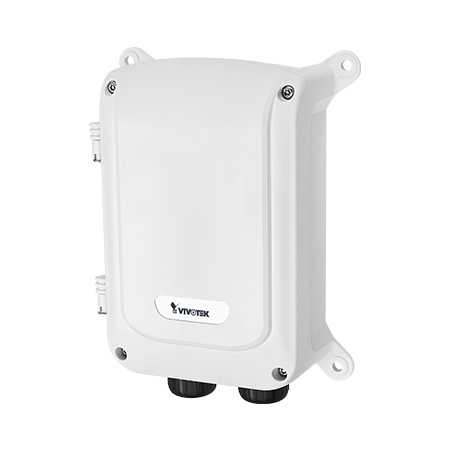

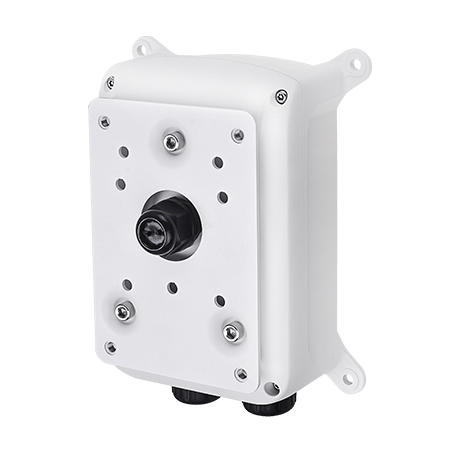

• Input Power - AI-109: 24VAC/28VDC with AE-23A encolsure
• Power Consumption - AI-109: 48W
• Weight - AI-109: 1.2 kg
• Housing - Weather-proof IP68-rated housing, Vandal-proof IK10-rated housing
• Operating Temperature - AI-109: -40 °C ~ 50 °C (-40°F ~ 122°F)
• Color - AI-109: White
• Wavelength - 850nm
• Dimensions - AI-109: 135 x 106 x 111 mm
• Certifications - CM48I8-2040: IEC 62471, EN 50130-4, CE: EN61000-6- 3, EN60598-1, EN60598-2-5, FCC Class B, EN60529
• Integrated Control - Built-in photocell for automatic IR on/off
