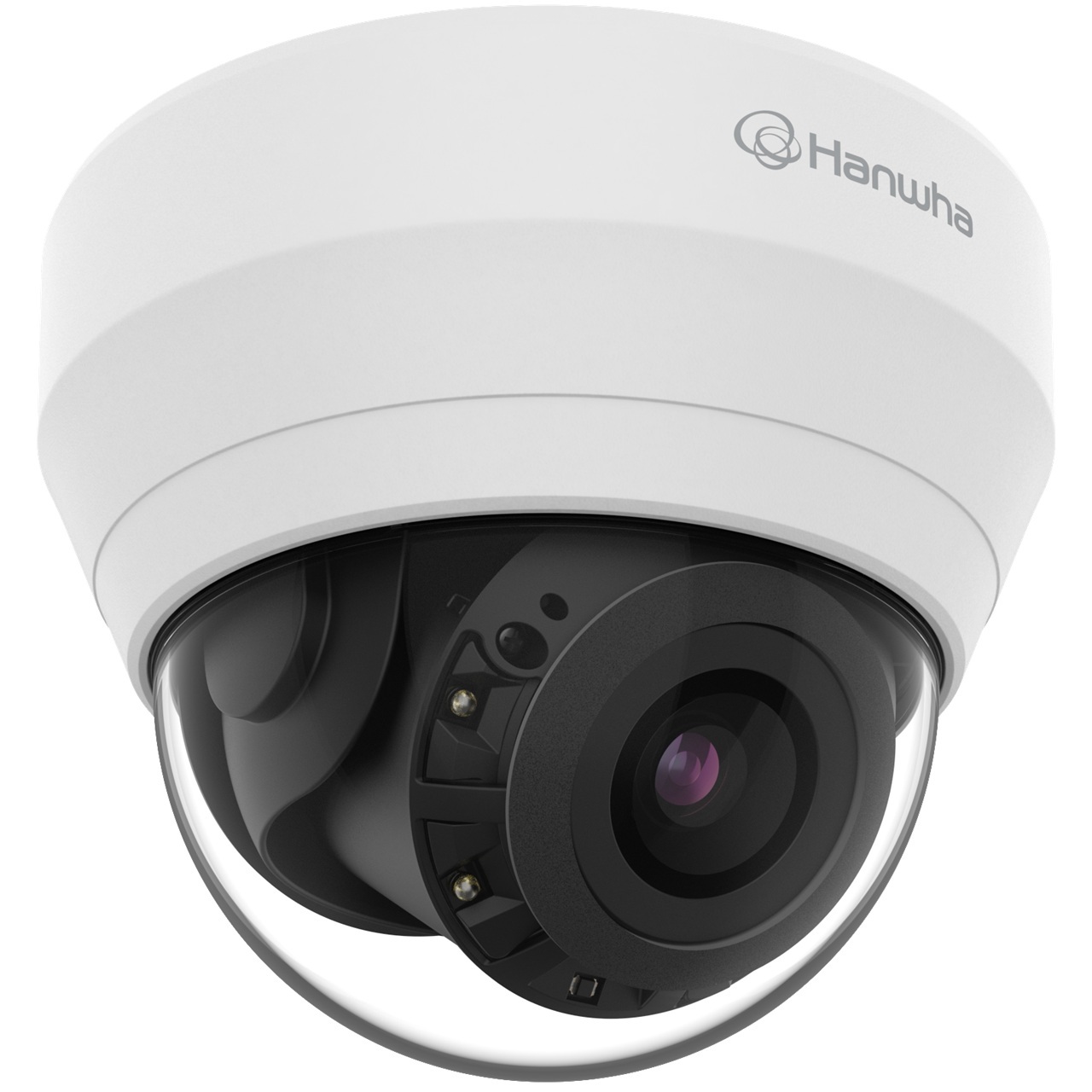

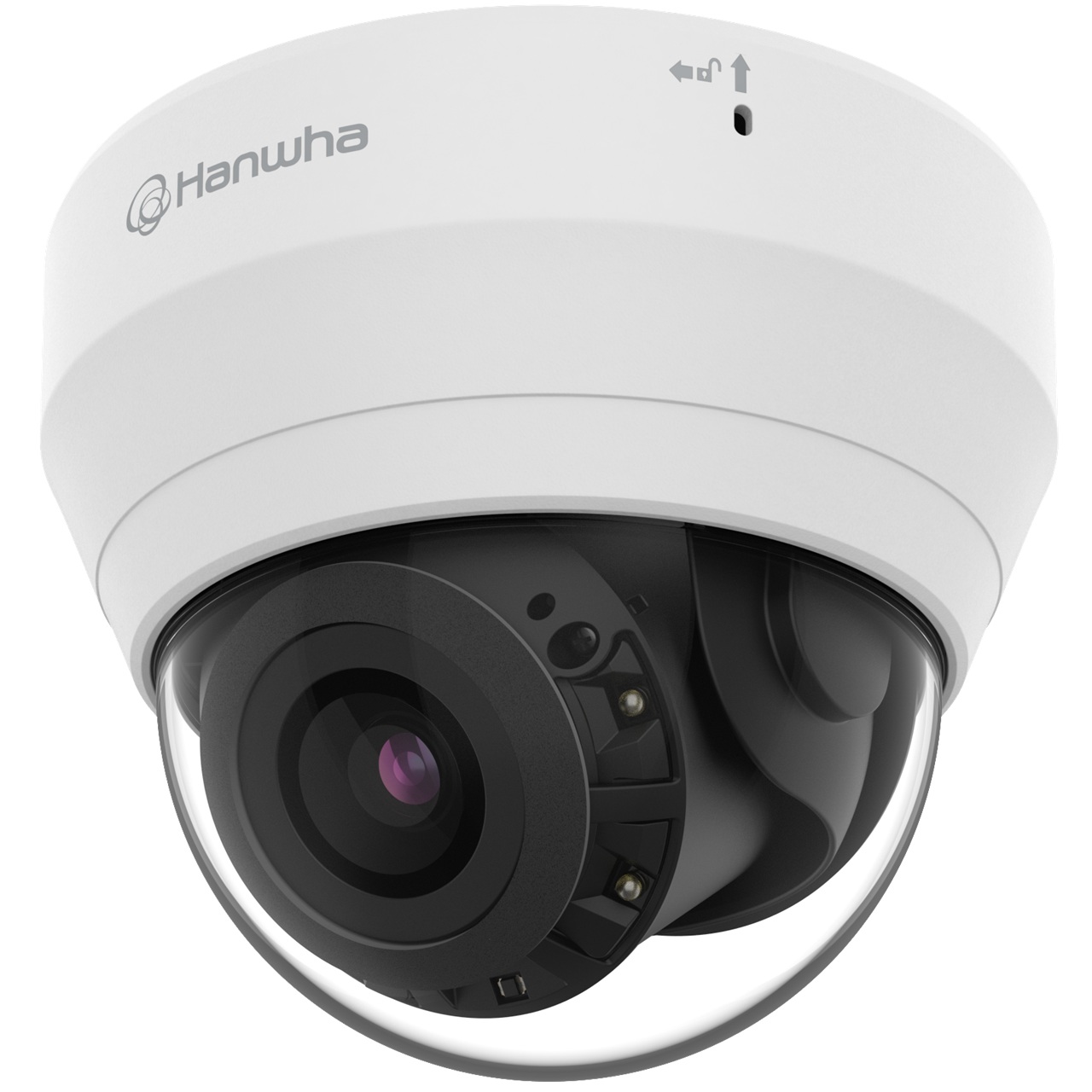

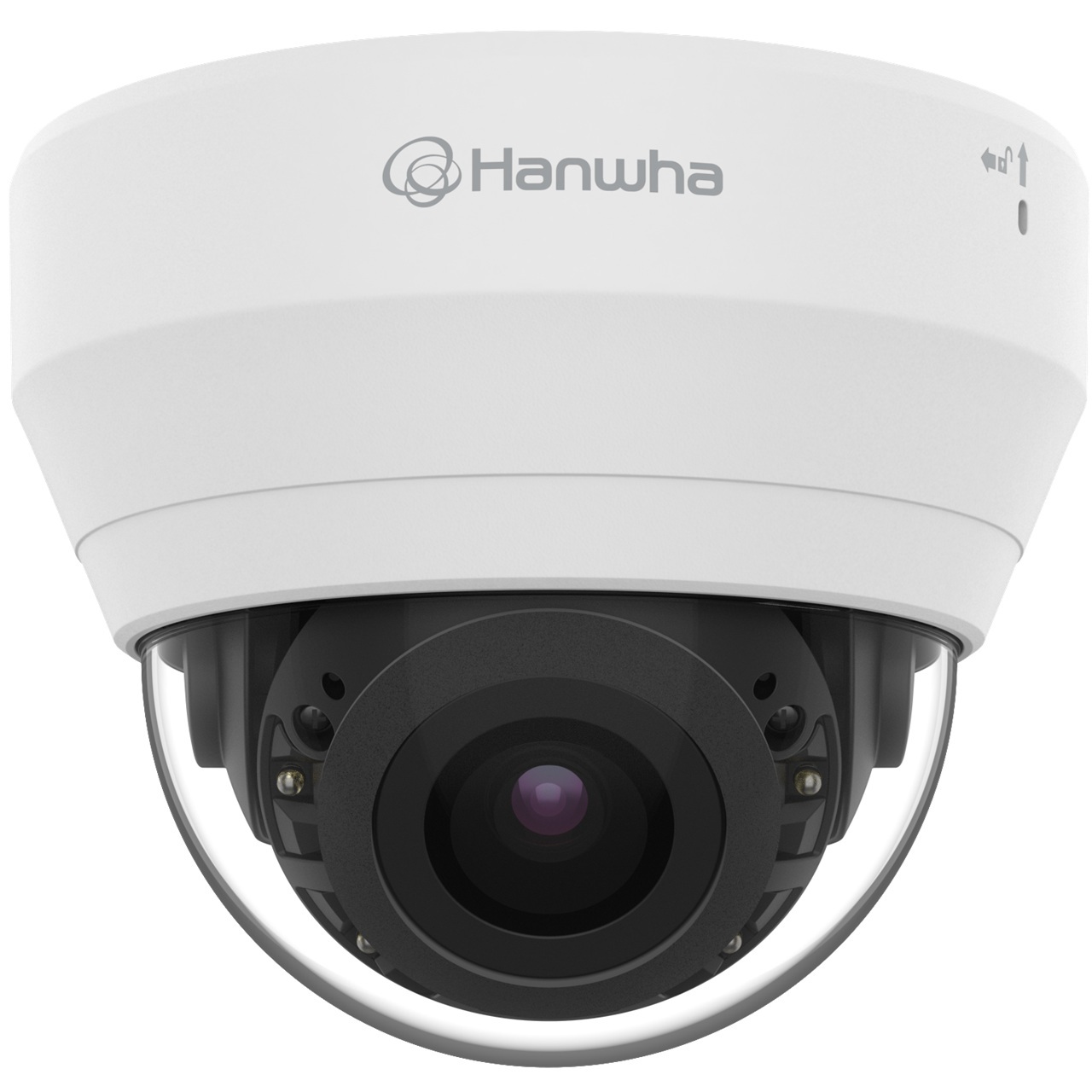

QND-7082R Hanwha Vision Q Series 3.2-10mm Motorized 30FPS @ 4MP Indoor IR Day/Night WDR Dome IP Security Camera 12VDC/PoE

Specifications

Video

• Imaging Device - 1/3" CMOS
• Resolution - 2560x1440, 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
• Max. Framerate - H.265/H.264 : Max. 30fps at 4M all resolutions, MJPEG : Max. 15fps
• Min. Illumination - Color : 0.1Lux (F1.6, 1/30sec) B/W : 0Lux (IR LED On)
• Video Out - CVBS : 1.0 Vpp/75Ω composite, 720x480(N), 720x576(P) for installation

Lens

• Focal Length (Zoom Ratio) - 3.2~10mm(3.1x) motorized varifocal
• Max Aperture Ratio - F1.6(Wide) ~ F2.9(Tele)
• Angular Field of View - H : 98.6Ëš(Wide) ~ 30.8Ëš(Tele), V : 52.3Ëš(Wide) ~ 17.3Ëš(Tele), D : 115.7Ëš(Wide) ~ 35.3Ëš(Tele)
• Focus Control - Simple focus
• Lens Type - DC auto iris

Pan / Tilt / Rotate

• Pan / Tilt / Rotate Range - 0°~350°/ 0°~67°/0°~355°

Operational

• Camera Title - Displayed up to 85 characters
• Day & Night - Auto(ICR)
• Backlight Compensation - BLC, WDR, SSDR
• Wide Dynamic Range - (120dB)
• Digital Noise Reduction - SSNRâ…¤
• Motion Detection - 4ea, Polygonal zones
• Privacy Masking - 6ea, rectangular zones
• Gain Control - Low / Middle / High
• White Balance - ATW / AWC / Manual / Indoor / Outdoor
• LDC - Support
• Electronic Shutter Speed - Minimum / Maximum / Anti flicker (1/5~1/12,000sec)
• Video Rotation - Flip, Mirror, Hallway view(90Ëš/270Ëš)
• Analytics - Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line
• Alarm Interface In/Out - Input 1ea, Output 1ea
• Alarm Triggers - Analytics, Network disconnect Alarm input
• Alarm Events - File upload via FTP and e-mail, Notification via e-mail, SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover
• Audio In - Built-in mic
• IR Viewable Length - 20m(65.62ft)

Network

• Ethernet - RJ-45 (10/100BASE-T)
• Video Compression - H.265/H.264: Main/High, MJPEG
• Audio Compression - G.711 u-law / G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz, G.726 16Kbps, 24Kbps, 32Kbps, 40Kbps
• Smart Codec - Manual (5ea area), WiseStreamâ…¡
• Video Quality Adjustment - H.265/H.264 : Target bitrate level control, MJPEG : Quality level control
• Bitrate Control - H.264/H.265: CBR or VBR MJPEG: VBR
• Streaming - Unicast (6 users) / Multicast Multiple streaming (Up to 3 profiles)
• Protocol - IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP
• Security - HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access Log 802.1X Authentication
• Application Programming Interface - ONVIF Profile S/G/T, SUNAPI (HTTP API)

General

• Webpage Language - English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
• Edge Storage - Micro SD/SDHC/SDXC 1slot 128GB
• Memory - 512MB RAM, 256MB Flash

Environmental & Electrical

• Operating Temperature / Humidity/ Others - -10ËšC~+55ËšC (+14ËšF~+131ËšF) / Less than 95% RH
• Storage Temperature / Humidity - -30ËšC~+60ËšC (-22ËšF~+140ËšF) / Less than 95% RH
• Input Voltage - PoE(IEEE802.3af, Class3), 12VDC
• Power Consumption - PoE: Max 8.6W, typical 6.3W 12VDC: Max 7.6W, typical 5.4W

Mechanical

• Color / Material - White / Plastic
• RAL Code - RAL9003
• Product Dimensions - Ø119.8 x 98.8mm (Ø4.72 x 3.89")
• Weight - 320g (0.705 lb)
• Compatible Conduit hole / Gangbox - Included : Double - SBD-120GP : Single, Double, 4"Octagon
• Hanging Mount (Dome) - SBP-122HMW
• Skin Cover (Dome) - SPB-INW72 (White), SPG-IND72B (Black)

DORI (EN62676-4 standard)

• Detect (25PPM/ 8PPF) - Wide: 27m(89.86ft) / Tele: 129m(422.61ft)
• Observe (63PPM/ 19PPF) - Wide: 11m(35.95ft) / Tele: 52m(169.04ft)
• Recognize (125PPM/ 38PPF) - Wide: 6m(17.97ft) / Tele: 26m(84.52ft)
• Identify (250PPM/ 76PPF) - Wide: 3m(8.99ft) / Tele: 13m(42.26ft)
