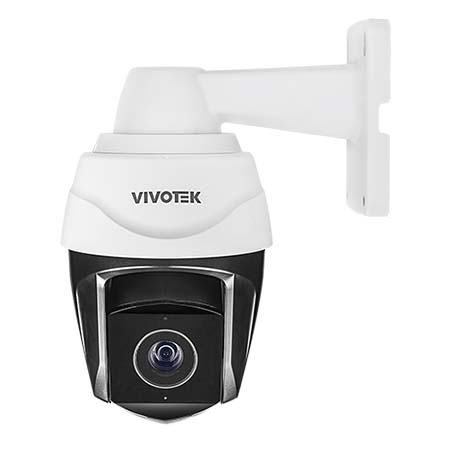

SD9368-EHL Vivotek 4.25-170mm 40x Optical Zoom 60FPS @ 1080p Outdoor IR Day/Night WDR PTZ IP Security Camera 24VAC/48VDC/PoE

Specifications

System Information

• Model - SD9368-EHL
• CPU - Multimedia SoC (System-on-Chip)
• Flash - 8 GB
• RAM - 2 GB

Camera Features

• Image Sensor - 1/2.8" Progressiv e CMOS
• Max. Resolution - 1920 x 1080
• Lens Type - 40x Optical Zoom, Auto Focus
• Focal Length - f = 4.7 ~ 170 mm (40x zoom)
• Aperture - F1.6 ~ F4.95
• Iris type - DC-Iris
• Field of View - 65.70° ~ 1.88° (Horizontal), 39.39° ~ 1.09° (Vertical), 73.03° ~2.13° (Diagonal)
• Shutter Time - 1 sec to 1/100,000 sec
• WDR Technology - WDR Pro
• Day/Night - Yes
• Removable IR-cut filter - Yes
• IR Illuminators - Built-in IR Illuminators up to 250 meters with Smart IR, IR LED*8
• Minimum Illumination - 0.04 lux @ F1.6 (Color), 0.005 lux @ F1.6 (B/W), 0 lux with IR illumination on
• Pan Speed - 450° / sec
• Pan Range - 360° endless
• Tilt Speed - Preset speed: 450°/s
• Tilt Range - -20° to 90° (auto flip)
• Preset Locations - 256 preset locations
• Pan/Tilt/Zoom Functionalities - 32x digital zoom (4x on IE plug-in, 8x built in), Auto Pan mode, Auto Patrol mode, Mechanical Auto flip
• Storage - Seamless Recording to MicroSD/SDHC/SDXC card and recording to network-attached storage (NAS)
• Built-in Installation Aids - Remote f ocus, remote zoom

Video

• Video Compression - H.265, H.264, MJPEG
• Maximum Frame Rate - 60 fps @ 1920 x 1080
• Maximum Streams - 3 video streams (up to 8 configurable profile)
• S/N Ratio - 50 dB
• Dynamic Range - 120 dB
• Video Streaming - Adjustable resolution, quality and bitrate Smart Stream II
• Image Settings - General settings: v ideo title and time stamp ov erlay, v ideo orientation (f lip, mirror), day /night settings; Illuminators: illuminators, anti-ov erexposure; Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curv e), def og, HLM, 3DNR, EIS, scene mode (auto, deblur); Exposure: BLC, HLC, exposure control (exposure lev el, iris adjustment, exposure time, gain control, iris mode), AE speed adjustment, WDR; Focus; Priv acy mask; Scheduled prof ile settings; Pixel calculator

Audio

• Audio Capability - Two-way audio (Full duplex)
• Compression - G.711, G.726
• Interface - External line input, External line output

Network

• Users - Live viewing for up to 10 clients
• Security - Access list, digest authentication, HTTPS , IEEE 802.1x, password protection, secure boot, signed f irmware, Trend Micro IoT Security (brute f orce attack event, cy berattack ev ent, quarantine ev ent), user access log, user account management
• Protocols - 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP/SFTP, HTTP, HTTPS, ICMP, IGMPv 3, IPv 4, IPv 6, NTCIP, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP
• Interface - 10 Base-T/100 Base-TX/1000 Base-T Ethernet (RJ-45), *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard
• ONVIF - Profile G, S, T supported, specification available at www.onvif.org

Solution Integration

• Smart Tracking Advanced - Smart tracking Adv anced (Default, license embedded; including intrusion detection, loitering detection, line crossing detection, face detection)
• VADP Package - Smart Tracking Adv anced, Trend Micro IoT Security (3-year free trial), Stratocast

Alarm and Event

• Event Trigger - Audio detection, camera tampering detection, cy bersecurity ev ents (brute force attack event, cy berattack ev ent, quarantine event), digital input, manual trigger, motion detection, periodical trigger, recording notif ication, SD card life expectancy, smart tracking advanced trigger, system boot, preset reached
• Event Action - Event notification via audio clip, camera link, digital output, email, HTTP, FTP, NAS server,,SD card, File upload v ia email, HTTP, FTP, NAS serv er, SD card; trigger track, trigger patrol, move to preset

General

• Connectors - RJ-45 cable connector f or 10/100 Mbps PoE network connection, Audio line input, Audio line output, DC 48V power input, AC 24V power input, Digital input*2, Digital output*1
• LED Indicator - System power and status indicator
• Power Input - AC 24V, DC 48V, IEEE 802.3 bt Class 6 PoE (Simultaneous Power Redundancy Supported)
• Power Consumption - PoE: Max. 51W/26W (IR on/off) DC48V: Max. 51W/26W (IR on/off ), AC24V: Max. 51W/26W (IR on/of f )
• Dimensions - 256 x 336 mm
• Weight - 7.1 kg
• Certifications - EMC: CE (EN 55032 Class A, EN55035, EN50121-4), UKCA (BS EN 55032: 2015 +A11: 2020 , BS EN 55035: 2017), FCC (FCC Part 15 Subpart B Class A), IC (ICES-003:2020 Issue7, Class A), RCM (AS/NZS CISPR 32 Class A), VCCI (VCCI-CISPR 32 Class A); Saf ety : UKCA (BS EN 62368-1:2014+A11:2017), UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471); Env ironment: IK10 (IEC 62262), IP66 (IEC 60529), NEMA (NEMA 250 Ty pe 4X); IA: BIS (IS 13252), BSMI
• Safety Certifications - CE, FCC Class A, VCCI, C-tick, NEMA 4X, UL
• Operating Temperature - Starting Temperature: -40°C ~ 55°C (-40°F ~ 131°F), Working Temperature: -40°C ~ 60°C (-40°F ~ 140°F) (IR on)
• Humidity - 98% RH (non-condensing)
• Warranty - 36 Months

System Requirements

• Operating System - Microsof t Windows 10/8/7, Mac 10.12 (Chrome only )
• Web Browser - Chrome 58.0 or above Internet Explorer 10/11
• Other Players - VLC: 1.1.11 or above, Quicktime: 7 or above

DORI (EN 62676-4 Standard)

• Detect (25PPM/8PPF) - Wide: 61.1 m (200.4 ft), Tele: 2239 m (7345.7 ft)
• Observe (63PPM/19PPF) - Wide: 24.2 m (79.5 ft), Tele: 888.5 m (2914.9 ft)
• Recognize (125PPM/38PPF) - Wide: 12.2 m (40 ft), Tele: 447.8 m (1469.1 ft)
• Identif y (250PPM/76PPF) - Wide: 6.1 m (20 ft), Tele: 223.9 m (734.5 ft)

Included Accessories

• Packing Contents - Wall mount bracket, Quick installation guide, alignment sticker, screw pack, desiccant bag, waterproof accessory bag, conduit ring, terminal block
