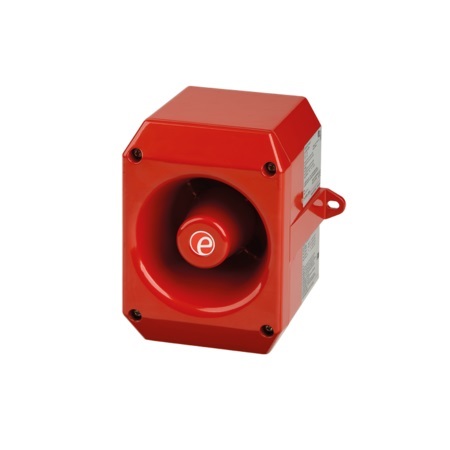

1430569 Potter E2 D2xS1 Alarm Horn Sounder

The corrosion proof, marine grade aluminium die cast enclosure is chromated and powder coated providing resilience in the harshest of environments. One device, globally certified: ATEX, IECEx Zone 2 & 22; NEC/CEC CI D2 and CII D2; NEC CI Zone 2 and Zone 22; CEC Zone 2 & 22 and CII D2. UL, cUL & ULC approved 24Vdc version for public mode fire alarm use.

Specifications

• Maximum output - 116dB(A) @ 1 metre [107dB(A) @ 10ft/3m]
• Nominal output - 112dB(A) @ 1m +/- 3dB – Tone 2 [103dB(A) @ 10ft/3m]
• No. of tones - 64 (UKOOA / PFEER compliant)
• No. of stages - 4
• Volume control - Adjustable -12dB(A) [Tone 2]
• Effective range - 125m/410ft @ 1KHz
• Voltages DC - 24V dc (10-30V dc); 48V dc (38-58V dc
• Voltages AC - 115V ac 50/60Hz; 230V ac 50/60Hz
• Stage switching - DC units: negative or positive, AC units: common supply line
• Ingress protection - EN60529: IP66, UL50E / NEMA250: 4 / 4X / 3R / 13
• Housing material - Marine grade aluminium Al Si12 Cu
• Colour - Red (RAL3000), Grey (RAL7038)
• Cable entries - 2 x M20 x 1.5mm threaded gland entries, Adaptors available to 1/2"NPT, 3/4"NPT and M25
• Terminals - 0.5 – 2.5mm² (20-14 AWG)
• Grounding stud - M5
• Operating temp - -40 to +70°C [-40° to +158°F] – Class I Div 2, -40 to +50°C [-40° to +122°F] – All other markings
• Relative humidity - 95%
• Weight - DC: 2.48kg/4.96Ibs
