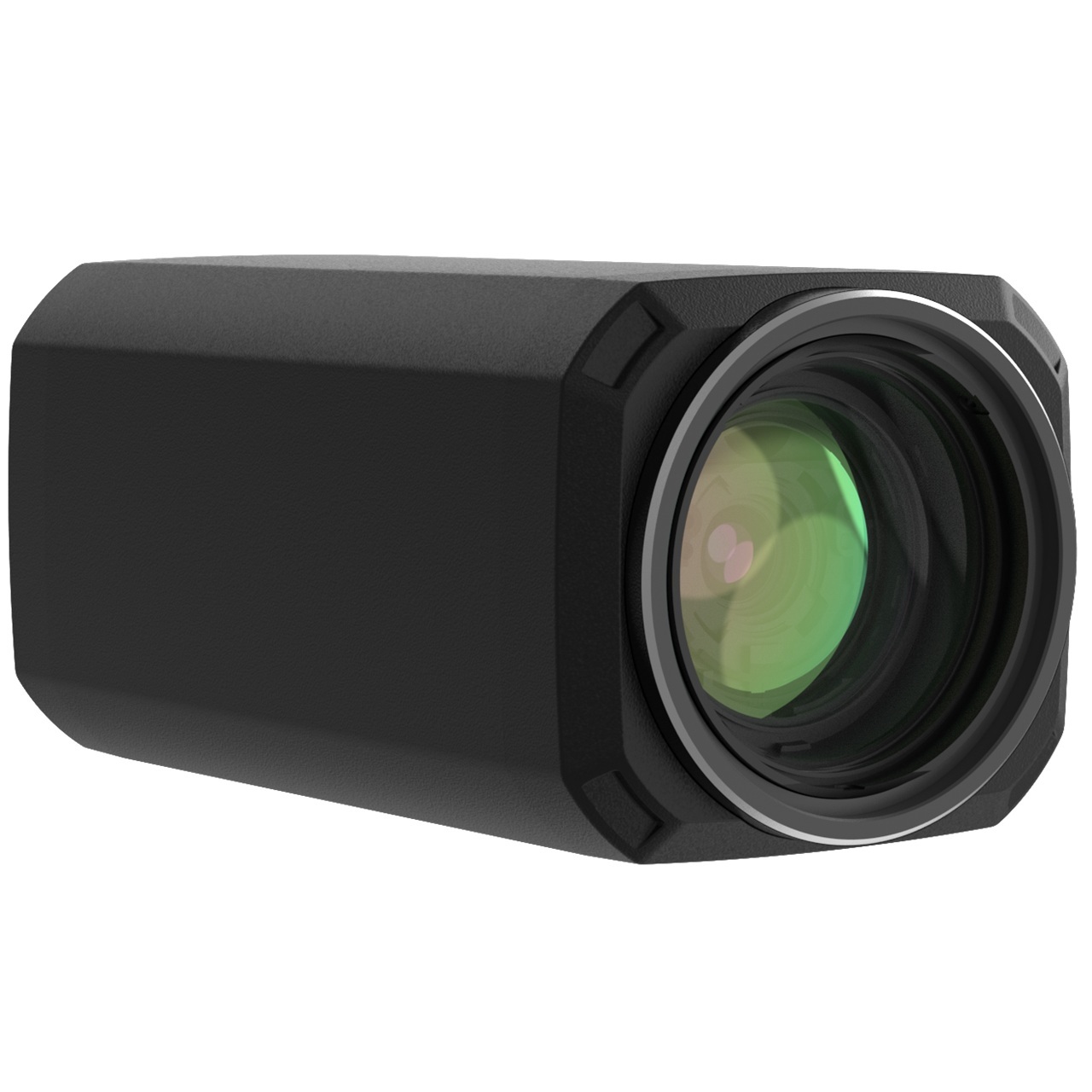

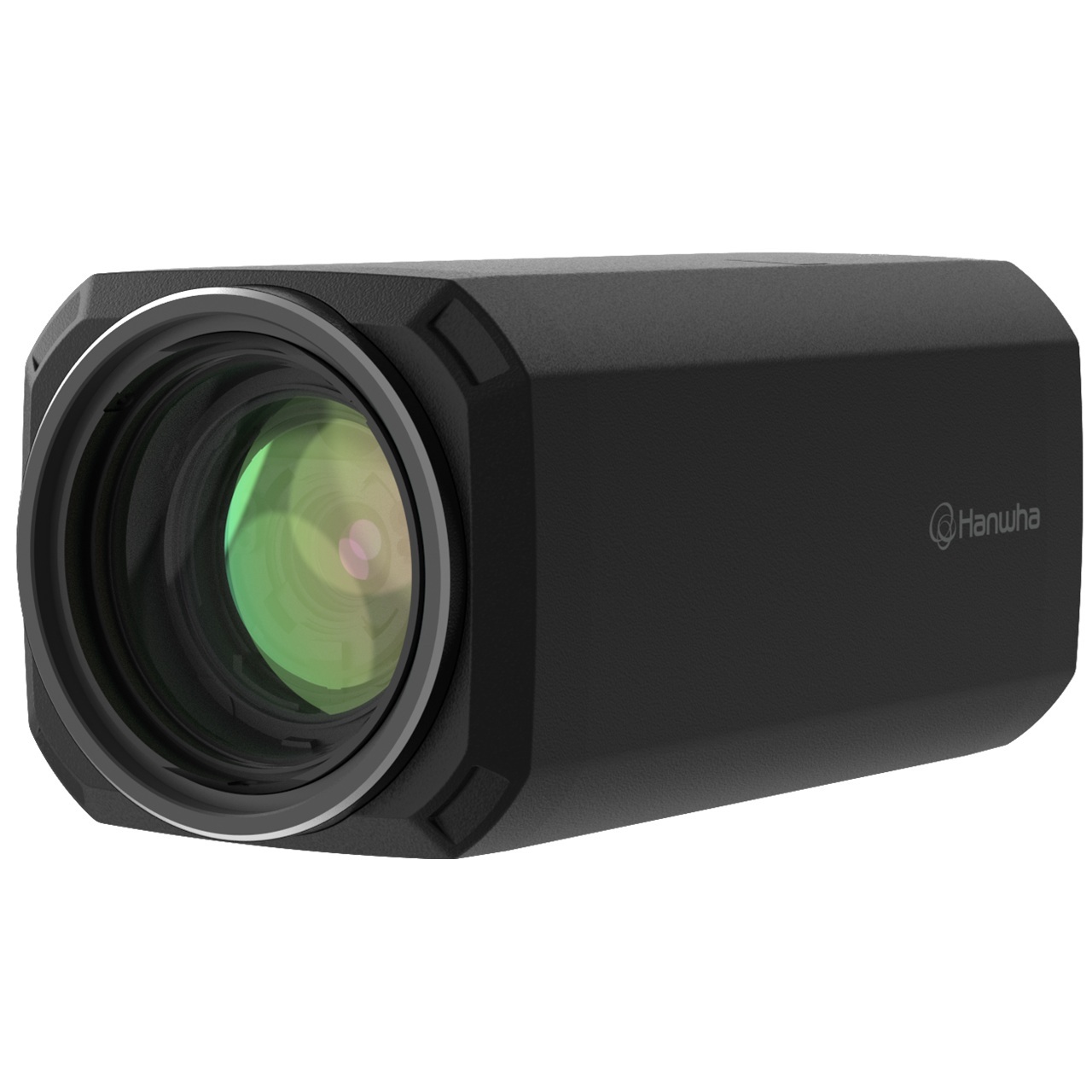

XNZ-L6320A Hanwha Vision X Series 4.44-142.6mm 32x Optical Zoom 60FPS @ 2MP Outdoor Day/Night WDR Box IP Security Camera 12VDC/PoE

Specifications

Video

• Imaging Device - 1/2.8" 2MP CMOS
• Resolution - 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
• Max. Framerate - H.265/H.264: Max. 60fps/50fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz)
• Min. Illumination - Color: 0.05Lux (1/30sec, F1.6) B/W: 0.005Lux (1/30sec, F1.6)
• Video Out - CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation

Lens

• Focal Length (Zoom Ratio) - 4.44 ~ 142.6mm (Optical 32X) (digital 32x, total 1024x zoom)
• Max. Aperture Ratio - F1.6(Wide) ~ F4.4(Tele)
• Angular Field of View - H: 64.66Ëš(Wide)~2.29Ëš(Tele) / V: 38.08Ëš(Wide)~1.30Ëš(Tele)
• Min. Object Distance - Wide 1.5m(4.92ft) ,Tele 2m(6.56ft)
• Focus Control - Auto, One shot AF
• Lens Type - DC auto iris

Operational

• Camera Title - Displayed up to 85 characters
• Direction Indicator - Support
• Day & Night - Auto (ICR)
• Backlight Compensation - BLC, HLC, WDR, SSDR
• Wide Dynamic Range - (120dB)
• Digital Noise Reduction - SSNRâ…¤
• Digital Image Stabilization - Support
• Defog - Support
• Motion Detection - 8ea, 8point Polygonal zones
• Privacy Masking - 32ea, rectangular Support - Color: Grey/Green/Red/Blue/Black/White - Mosaic
• Gain Control - OFF/ LOW/ MID/ HIGH
• White Balance - ATW / AWC / Manual / Indoor / Outdoor / Mercury / Sodium
• Electronic Shutter Speed - Minimum / Maximum / Anti flicker (2~1/12,000sec)
• Video Rotation - Flip, Mirror
• Analytics - Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification

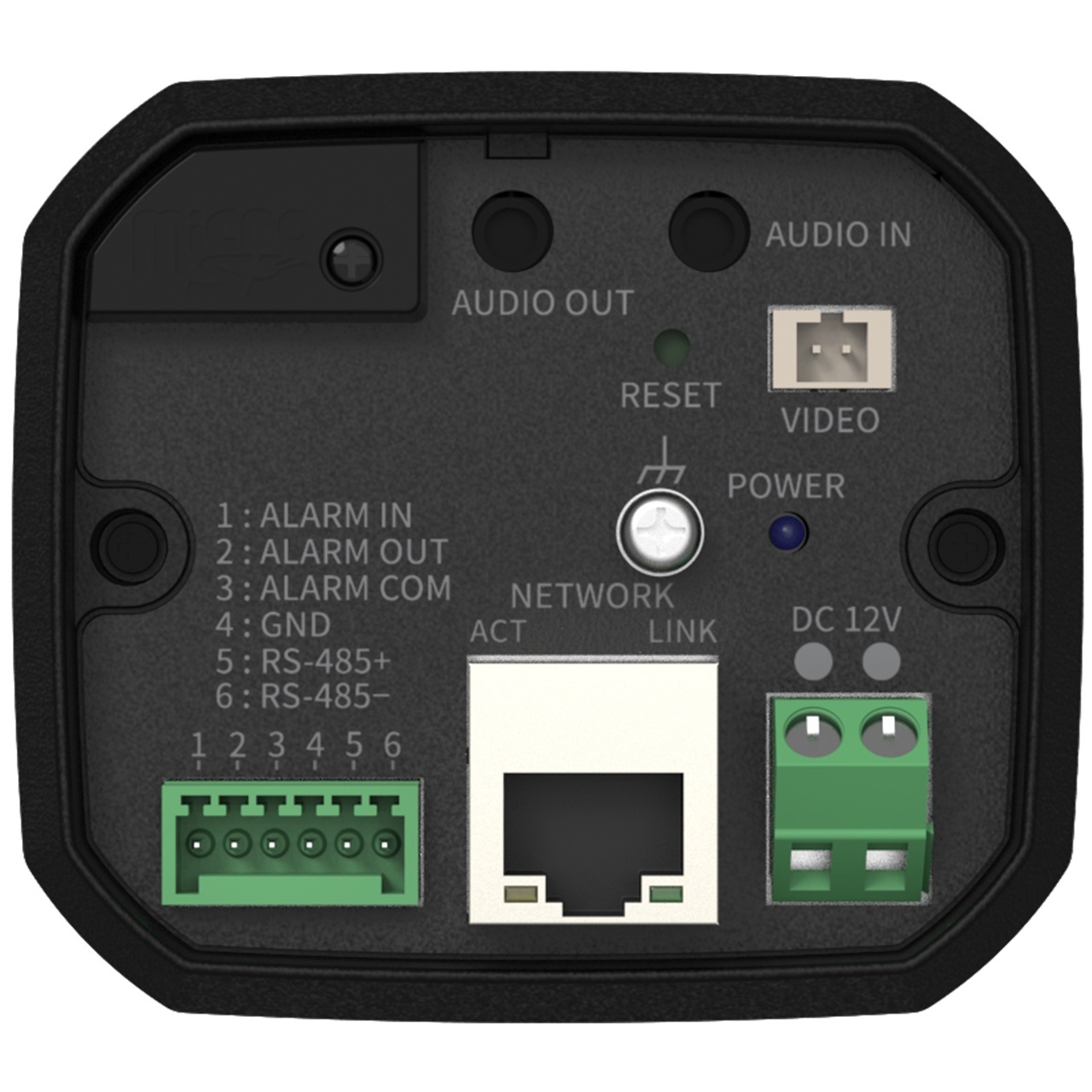

• Serial Interface - RS-485 (Samsung-T, Pelco-D/P, Panasonic, Bosch, AD, GE, Vicon, Honeywell)
• Alarm I/O - Input 1ea / Output 2ea
• Alarm Triggers - Analytics, Network disconnect, Alarm input
• Alarm Events - File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at Event Triggers Alarm output Handover(PTZ Preset)
• Audio In - Selectable(mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
• Audio Out - Line out, Max.output level: 1Vrms

Network

• Ethernet - Metal shielded RJ-45(10/100BASE-T)
• Video Compression - H.265/H.264: Main/Baseline/High, MJPEG
• Audio Compression - G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz
• Smart Codec - Manual(5ea area), WiseStreamâ…¡
• Bitrate Control - H.264/H.265: CBR or VBR MJPEG: VBR
• Streaming - Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles)
• Protocol - IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP
• Security - HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access Log 802.1X Authentication(EAP-TLS, EAP-LEAP) Device certificate(Hanwha Techwin Root CA)
• Application Programming Interface - ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform

General

• Webpage Language - English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
• Memory - 1024MB RAM, 256MB Flash
• Edge Storage - Micro SD/SDHC/SDXC 1slot 256GB

Environmental & Electrical

• Operating Temperature / Humidity - -10°C ~ +55°C(-14°F ~ +131°F) / Less than 90% RH
• Storage Temperature / Humidity - -50°C~+60°C (-58°F~+140°F) / Less than 90% RH(Non-condensing)
• Input Voltage - PoE(IEEE802.3af, Class3), 12VDC
• Power Consumption - PoE: Max 7.5W, Typ 5.0W 12VDC: Max 5.7W, Typ 3.7W

Mechanical

• Color / Material - Black / Metal
• Product Dimensions / Weight - 72x63.9 x 135.4mm(2.83x2.52x5.33"), 480g(1.06 lb)

DORI (EN62676-4 standard)

• Detect (25PPM/ 8PPF) - Wide: 60.7m(199.1ft) / Tele: 1921.3m(6303.4ft)
• Observe (63PPM/ 19PPF) - Wide: 24.3m(79.6ft) / Tele: 768.5m(2521.4ft)
• Recognize (125PPM/ 38PPF) - Wide: 12.1m(39.8ft) / Tele: 384.3m(1260.7ft)
• Identify (250PPM/ 76PPF) - Wide: 6.1m(19.9ft) / Tele: 192.1m(630.3ft)
