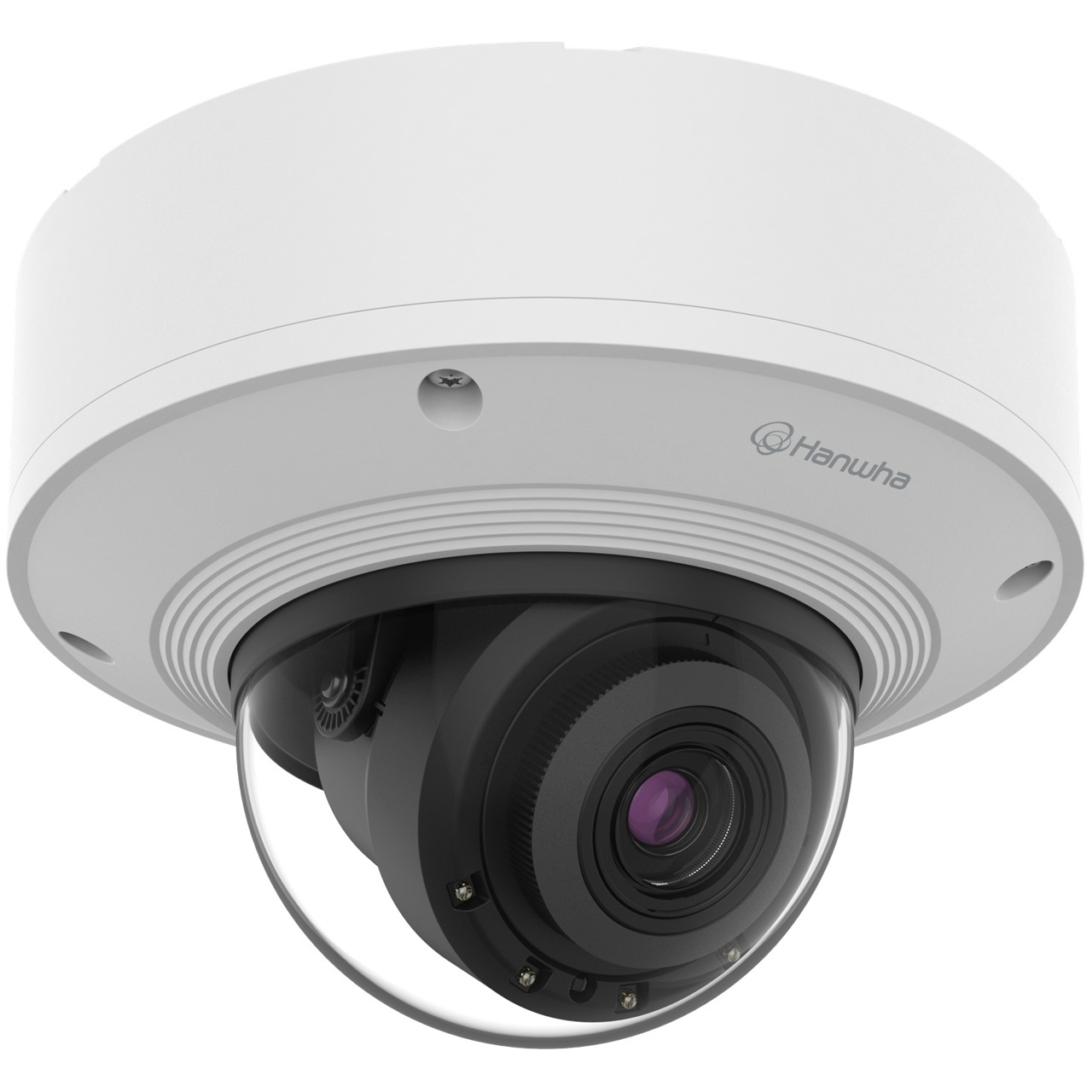

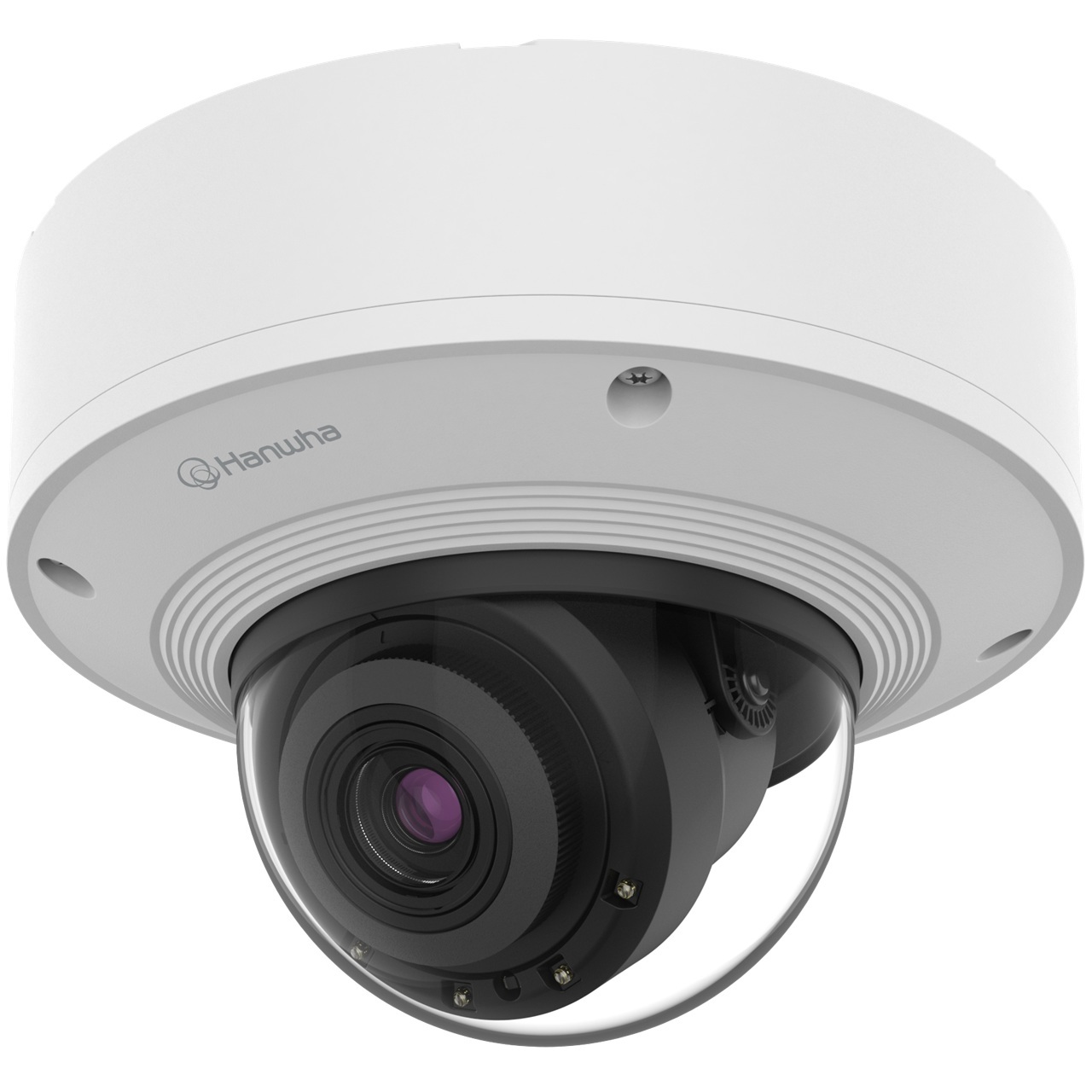

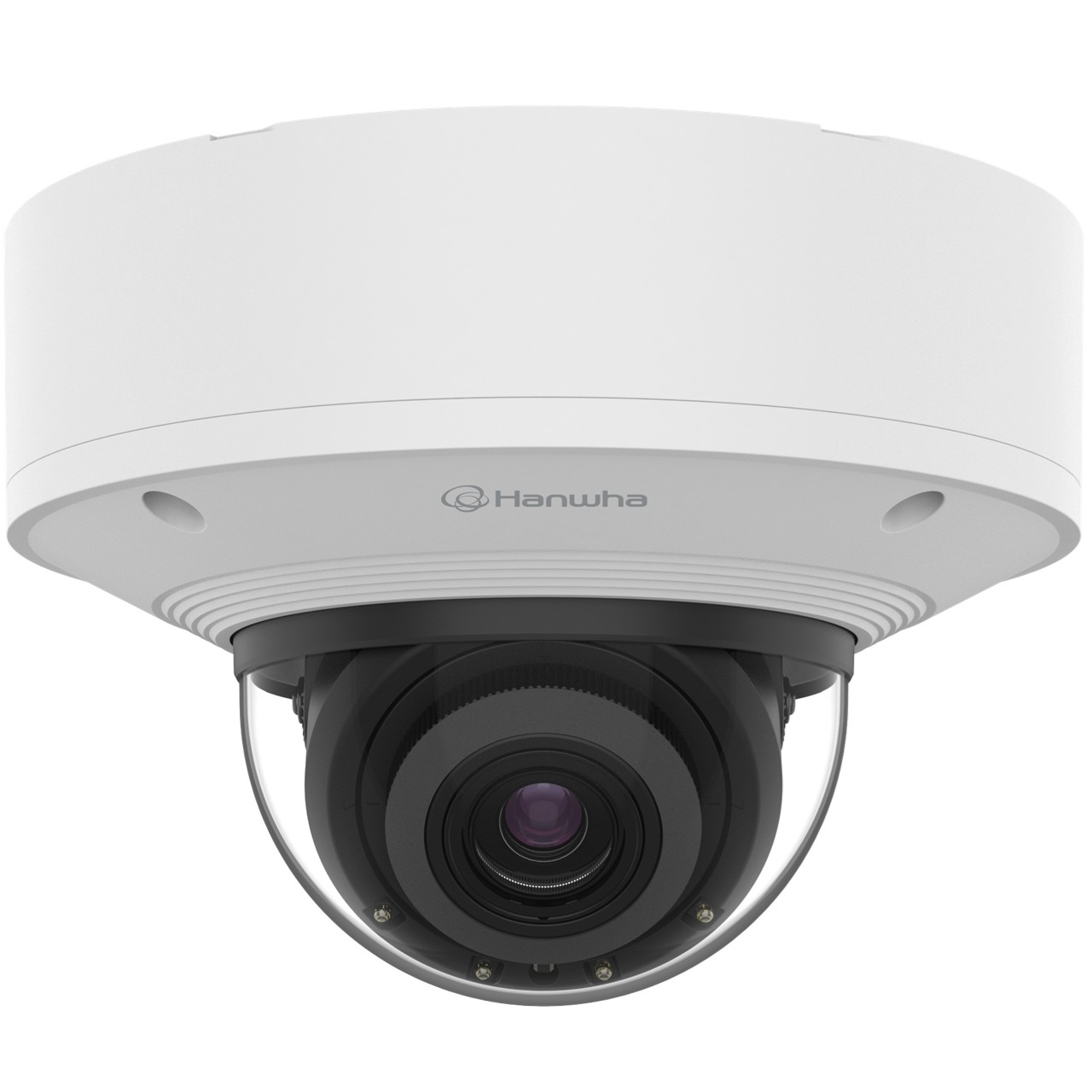

PNV-A9081RLP Hanwha Vision P Series 4.5-10mm Motorized 30FPS @ 4k Outdoor IR Day/Night WDR Dome IP Security Camera 12VDC/PoE

Introduction

Wisenet LPR Camera with Next-Generation Road AI Analytics

Hanwha Vision’s Wisenet Road AI is an advanced, edge-based camera system that uses a Convolutional Neural Network (CNN) deep learning model to accurately detect, identify, and classify vehicles. Going beyond basic license plate capture, it provides Make, Model, and Color Recognition (MMCR) for richer, real-time vehicle data. This CNN technology is a significant leap forward from older systems that rely on manually programmed rules. The latest version of Wisenet Road AI offers several key improvements:

Specifications

Video

• Imaging Device - 1/1.8" CMOS
• Resolution - 3840x2160, 3072x1728, 2592x1944, 2688x1520, 2560x1440, 2048x1536, 1920x1080, 1600x1200, 1280x1024,1280x960, 1280x720, 1024x768, 800 x 600, 800 x 448, 720 x 576, 720x480, 640x480, 640x360
• Max. Framerate - H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz)
• Min. Illumination - Color: 0.05Lux(F1.6, 1/30sec) BW: 0.005Lux(F1.6, 1/30sec), 0Lux(IR LED on)
• Video Out - CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation USB: Micro USB Type B, 1280x720 for installation

Lens

• Focal Length (Zoom Ratio) - 4.5~10mm(2.2x) motorized varifocal
• Max. Aperture Ratio - F1.6(Wide)~F2.65(Tele)
• Angular Field of View - H:101.4°(Wide)~45.5°(Tele) / V:53.6°(Wide)~25.5°(Tele) / D:120.7°(Wide)~52.3°(Tele)
• Min. Object Distance - 0.5m(1.64ft)
• Focus Control - Simple focus
• Lens Type - P iris

Pan / Tilt / Rotate

• Pan / Tilt / Rotate Range - 0Ëš~360Ëš / -45Ëš~85Ëš / 0Ëš~355Ëš

Operational

• Camera Title - Displayed up to 85 characters
• Day & Night - AIuto (ICR)
• Backlight Compensation - BLC, WDR, SSDR
• Digital Noise Reduction - SSNRV
• Digital Image Stabilization - Stabilization Support(built-in gyro sensor)
• Motion Detection - 8ea, polygonal zones
• Privacy Masking - 6ea, rectangle zones - Color: GrayBlack/White
• Gain Control - LOW/ MID/ HIGH
• White Balance - ATW / AWC / Manual / Indoor / Outdoor
• LDC - Support
• Electronic Shutter Speed - Minimum, Maximum, Anti flicker (1/5~1/12,000sec)
• Video Rotation - Flip, Mirror, Hallway view(90Ëš/270Ëš)
• Analytics - Defocus detection, Motion detection, Tampering, Audio detection, Sound classification, Shock detection
• Alarm I/O - Input 1ea / Output 1ea / DC 12V Power(Max. 50mA) 1ea
• Alarm Triggers - Analytics, Network disconnect, Alarm input
• Alarm Events - File upload via FTP and E-Mail Notification via E-Mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output Handover Audio playback
• Audio In - Selectable(mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
• Audio Out - Line out, Max.output level: 1Vrms
• IR Viewable Length - 30m(98.42ft)

Network

• Ethernet - Metal shielded RJ-45(10/100/1000 BASE-T)
• Video Compression - H.265/H.264: Main/High, MJPEG
• Audio Compression - G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz
• Smart Codec - Manual(5ea area), WiseStreamâ…¡
• Bitrate Control - H.264/H.265: CBR or VBR MJPEG: VBR
• Streaming - Unicast(6 users) / Multicast Multiple streaming(Up to 3 profiles)
• Protocol - IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast)
• Security - HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) Device Certificate(Hanwha Techwin Root CA) Secure boot
• Application Programming Interface - ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform

General

• Webpage Language - English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
• Memory - 4096MB RAM, 512MB Flash
• Edge Storage - Pre-installed with 32GB Micro SD to support 10,000 LPR images

Environmental & Electrical

• Operating Temperature / Humidity - -40°C ~ +55°C(-40°F ~ +131°F) / Less than 90% RH * Start up should be done at above -30°C
• Storage Temperature / Humidity - -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH
• Certification - IP66/IP67/IP6K9K, IK10+, NEMA4X
• Input Voltage - PoE+(IEEE802.3at), 12VDC
• Power Consumption - PoE+: Max 20.00W, typical 17.00W 12VDC: Max 18.70W, typical 15.00W

Mechanical

• Color / Material - White / Aluminum
• RAL Code - RAL9003
• Product Dimensions / Weight - Ø180x125mm(7.09x4.92"), Weight : 1.90Kg (4.19lb)
• Compatible Conduit hole / Gangbox - 3/4"(M25) Single, Double, 4"Octagon, Square
• Hanging Mount (Dome) - SBP-187HMW

Wisenet Road AI LPR/ANPR/MMCR

• Solution - Community Traffic
• Speed Description - Moderate Speed
• Lane Coverage - 1 lane (3.6m/12ft Wide) (with built in IR)
• Speed limit - Up to 45mph (with built in IR)
• Min. Forward Distance - 12m (38ft)
• Max. Forward Distance - 12m (40ft) (with built in IR)
• Max. Horizontal Angle - 25°
• Max. Vertical Angle - 25°
• Horizontal Offset - Up to 5m (18ft)
• Camera Height - Up to 5m (18ft)
• Vehicle Recognition - Make : 70+ Model : 600+ Color : 11
• Available Countries - USA, Canada, Mexico, Brazil, Uruguay, Paraguay, Argentina, Colombia, Chile
