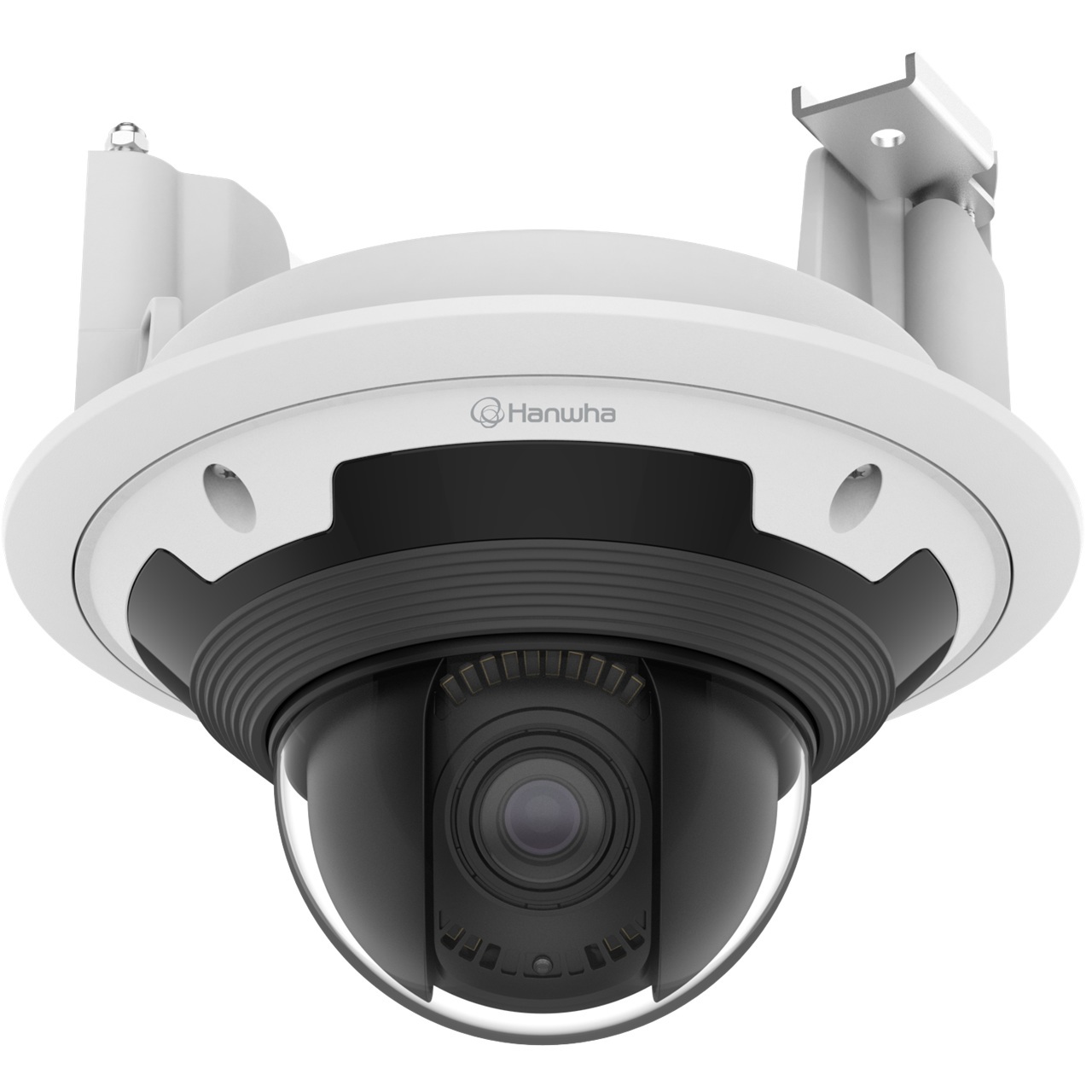

SHD-1370FPW Hanwha Vision Plenum In-Ceiling Housing

SHD-1370FPW Hanwha Vision Plenum In-Ceiling Housing	SHD-1370FPW Hanwha Vision Plenum In-Ceiling Housing
(Click to see larger image and other views)

SHD-1370FPW Hanwha Vision Plenum In-Ceiling Housing	SHD-1370FPW Hanwha Vision Plenum In-Ceiling Housing
(Click to see larger image and other views)

SKU: SHD-1370FPW

Brand: Hanwha Vision

Plenum in-ceiling housing

Features:

In-ceiling Mount Plenum compatible with XNV-6123R, XNV-6083RZ/8083RZ/9083RZ, XNV-6083Z/8083Z, XNV-6083R/8083R/8093R/9083R, XNV-8082R/9082R, PNV-A6081R/A9081R

More details...

MPN: SHD-1370FPW
EAN: 8801089225382

MSRP Price: $125.00

Web Price$125.00

Quantity:

Add to List

DWG Dealer Program Become a DWG Dealer to see your pricing. Dealer pricing, quoting, volume discounts, and sales support on thousands of products.

Become a DWG Dealer → DWG Dealer Sign In

Product Details

Specifications

Mechanical

Color - White
Material - Aluminum
RAL code - RAL9003
Product dimensions / weight - ø205x103mm(ø8.07x4.05") / 770g(1.70lb)
Tile thickness - 10~70mm (0.4~2.8")
Mount Screw size - TR20
Max. load - 3kg(6.61lb) * Maximum load of ceiling board: 6.5kg(14.30lb)
Conduit hole - 12.7mm(1/2")(M20) / 19.1mm(3/4")(M25)
Supported products - PNV-A6081R, XNV-6083R, XNV-6123R, XNV-6083RZ ※ For further compatible models, please visit our website or use Toolbox

SHD-1370FPW Specifications PDF

Check out some additional items that you may need to purchase with this product:

Check the check boxes next to the additional products that you would like to add to the shopping cart, then click on the "Add to Cart" button above. A check box is not shown if a product requires that you select an option or fill out a field. (

) indicates a required accessory.

SHD-1370FPW Hanwha Vision Plenum In-Ceiling Housing

Plenum in-ceiling housing

Features:

Specifications
