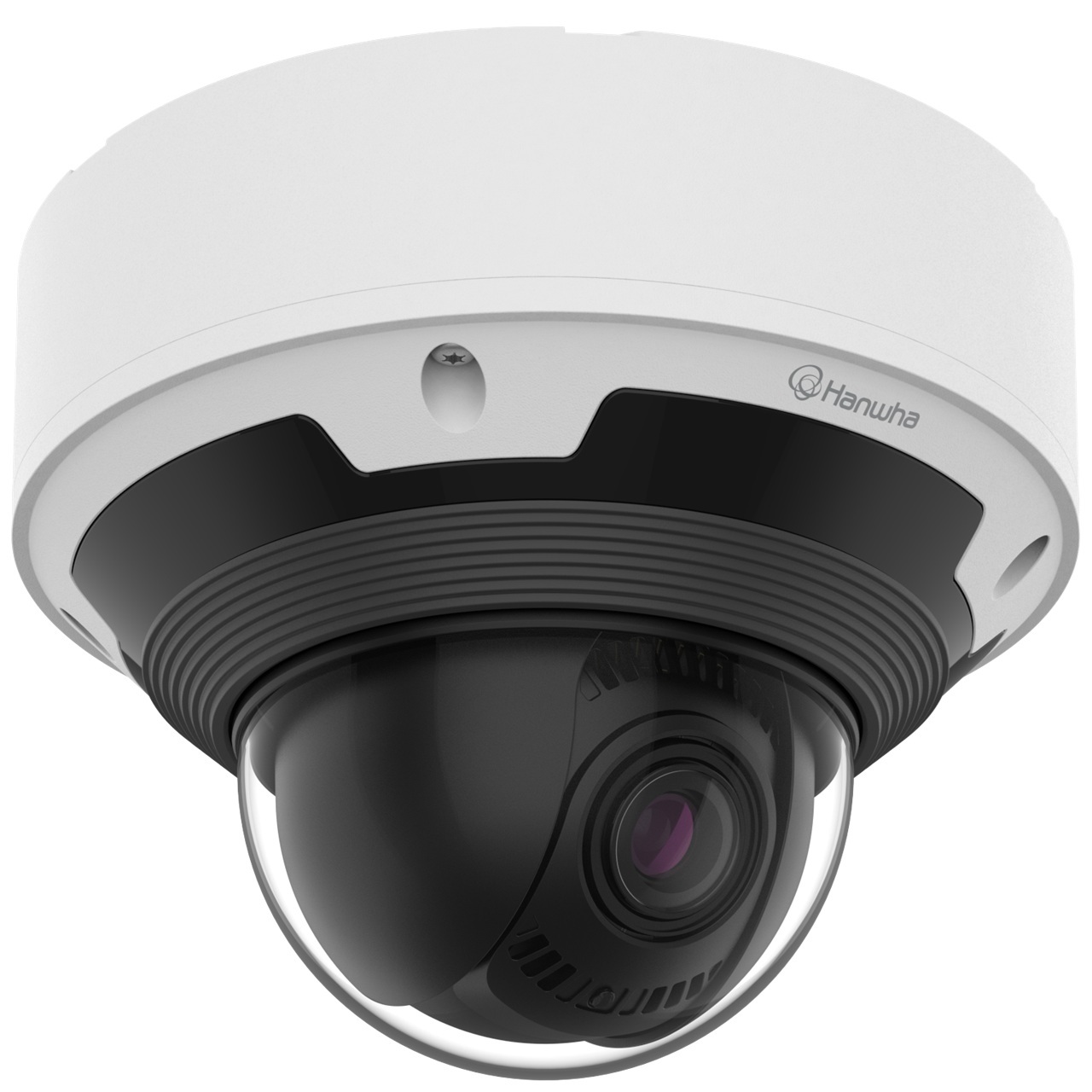

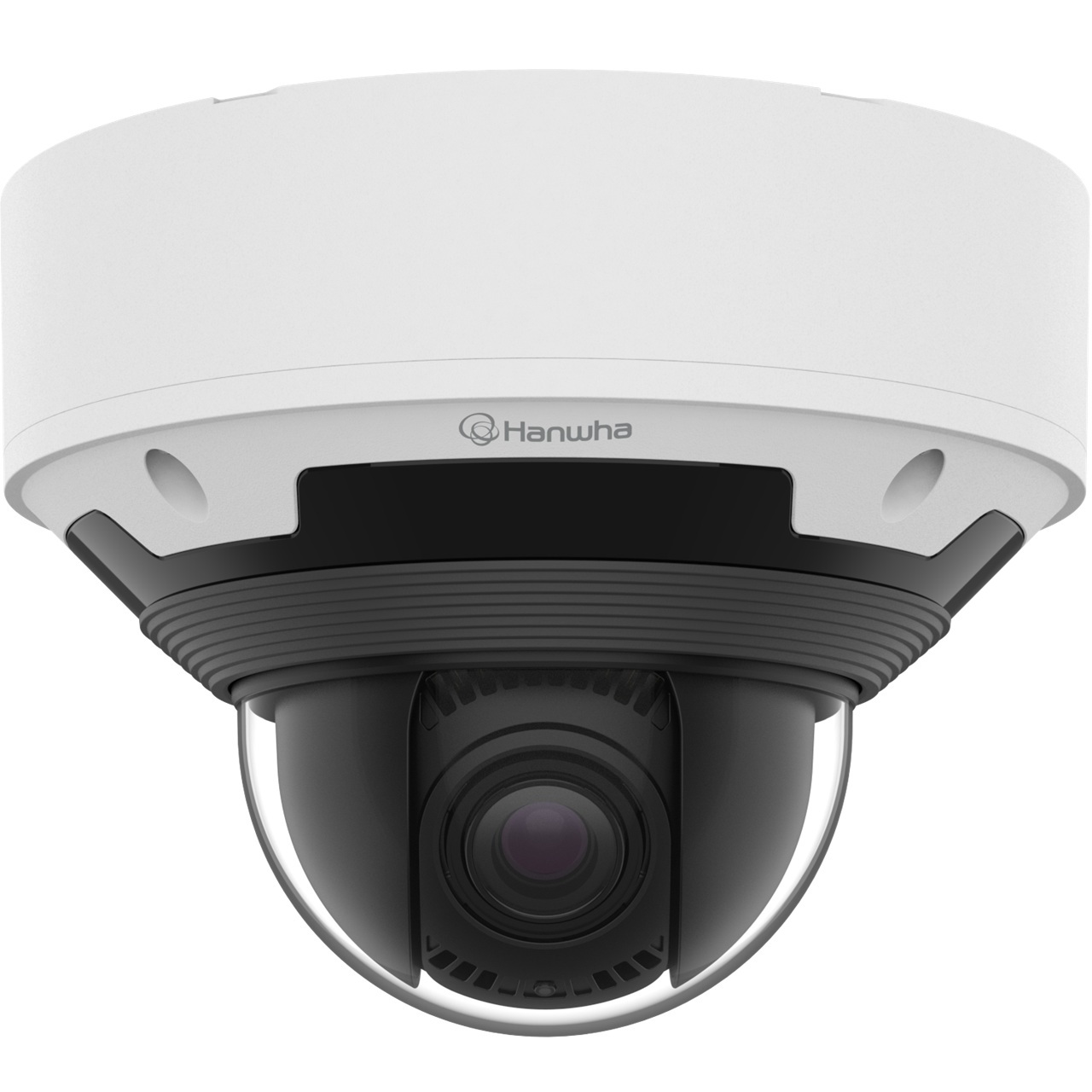

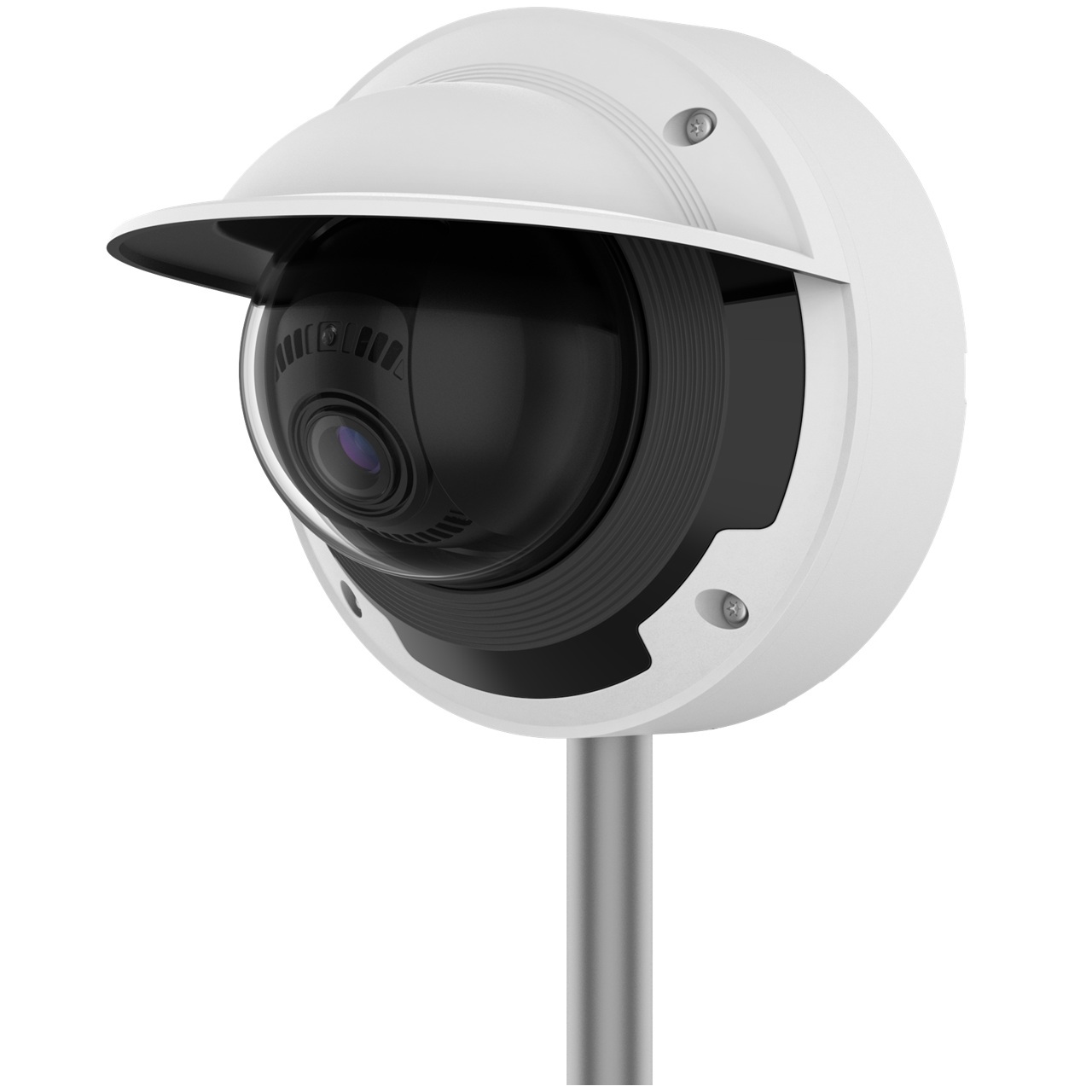

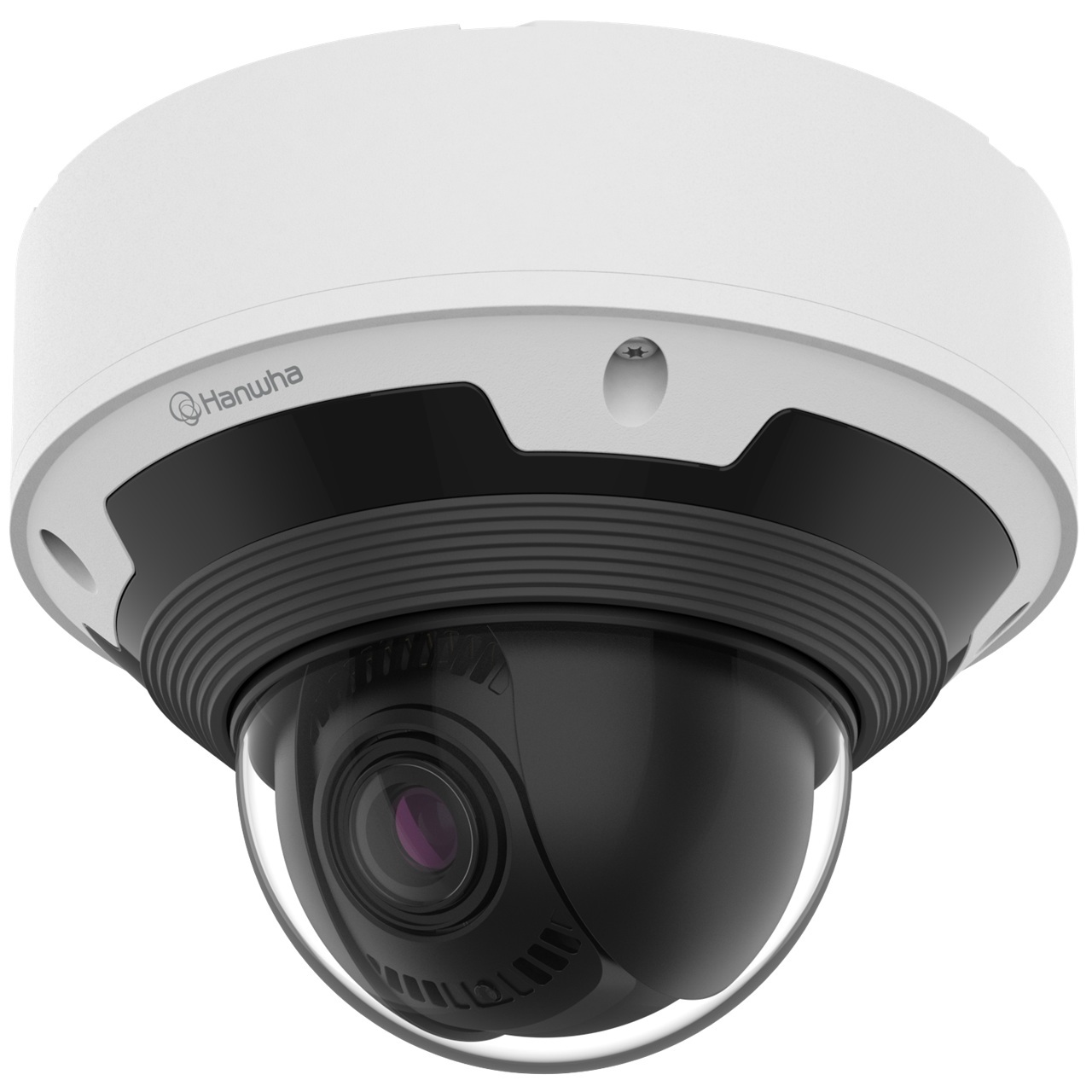

XNV-9083RZ Hanwha Vision X Series 4.4~9.3mm Motorized 30FPS @ 4K Outdoor IR Day/Night WDR Dome IP Security Camera 12VDC/PoE

Specifications

Video

• Imaging Device - 1/1.8" progressive CMOS
• Resolution - 3840x2160, 3328x1872, 3072x1728, 2592x1944, 2688x1520, 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
• Max. Framerate - H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 15fps/12fps(60Hz/50Hz)
• Min. Illumination - Color: 0.03Lux(F1.3, 1/30sec, 30IRE) BW: 0.003Lux(F1.3, 1/30sec, 30IRE), 0Lux(IR LED on)

Lens

• Focal Length (Zoom Ratio) - 4.4~9.3mm(2.1x) motorized varifocal
• Max. Aperture Ratio - F1.3(Wide)~F2.15(Tele)
• Angular Field of View - H: 113°(Wide)~47°(Tele) V: 58°(Wide)~26°(Tele) D: 138°(Wide)~54°(Tele)
• Min. Object Distance - 0.5m(1.64ft)
• Focus Control - Simple focus, Manual
• Lens Type - P-iris (IR corrected)

Pan / Tilt / Rotate

• Pan / Tilt / Rotate Range - Remote adjustment(Max. 200cycles) 0°~350° / 0°~85° / 0°~340°

Operational

• Camera Title - Displayed up to 85 characters
• Day & Night - Auto (ICR)
• Backlight Compensation - BLC, HCL, WDR, SSDR
• Wide Dynamic Range (dB) - extremeWDR (120dB)
• Digital Noise Reduction - WiseNRâ…¡(Based on AI engine), SSNRâ…¤
• Digital Image Stabilization - Support
• Defog - Support
• Motion Detection - 8ea, 8 Point Polygonal zones
• Privacy Masking - 32ea, 4 Points Quadrangle zones - Color : Gray, Green, Red, Blue, Black, White - Mosaic
• Gain Control - Off / Max Gain / Manual
• White Balance - ATW / Narrow ATW / AWC / Manual / Indoor / Outdoor
• LDC - Support (Fill/stretch mode)
• Electronic Shutter Speed - Minimum / Maximum / Prefer / Anti flicker (2~1/12,000sec) Auto Prefer shutter control(Based on AI engine)
• Video Rotation - Flip, mirror, Hallway view(90Ëš/270Ëš)
• Analytics - Classified object type : Person/Face/Vehicle/License plate Attributes : Vehicle(Type:car/bus/truck/motorcycle/bicycle) Support DetectionShot Analytics events based on AI engine - Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit) Analytics events - Defocus detection, Motion detection, Tampering, Fog detection, Virtual area(Appear/Disappear) * Audio detection, Sound classification(with NW I/O box SPM-4210)
• Alarm Triggers - Analytics, Network disconnect, App event, Time schedule * Alarm input(with NW I/O Box SPM-4210)
• Alarm Events - When alarm trigger occurred - File upload(image) : e-mail/FTP - Notification : e-mail - Recording : SD/SDHC/SDXC or NAS recording at event triggers - Alarm output(with NW I/O box SPM-4210) - Handover(PTZ preset, Send message by HTTP/HTTPS/TCP)
• IR Viewable Length - 15m(49.21ft) 30m(98.43ft) based on scene

Network

• Ethernet - Metal shielded RJ-45(10/100/1000BASE-T)
• Video Compression - H.265/H.264: Main/High MJPEG
• Smart Codec - Manual(5ea area), WiseStreamâ…¡, WiseStreamâ…¢(Based on AI engine)
• Bitrate Control - H.264/H.265: CBR or VBR MJPEG: VBR
• Streaming - Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles, 3 virtual channel support)
• Protocol - IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast)
• Security - TPM 2.0 (FIPS 140-2 level 2) HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2) Device Certificate(Hanwha Techwin Root CA, pre-installed) Secure by default certificate Secure OS/Boot/Storage, Verify firmware forgery
• Application Programming Interface - ONVIF Profile S/G/T/M SUNAPI(HTTP API) Wisenet open platform

General

• Webpage Language - English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Greek, Hungarian
• Edge Storage - Micro SD/SDHC/SDXC 2slot Max. 1TB (512GB * 2)
• Memory - RAM 4GB, Flash 512MB

Environmental & Electrical

• Operating Temperature / Humidity/ Others - -50°C~+55°C(-58°F ~ +131°F) * Start up should be done at above -30°C 0~95%RH(non-condensing) Humidity control /w AIR vent
• Storage Temperature / Humidity - -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH
• Certification - IP66/IP67/IP6K9K, NEMA4X, IK10+
• Input Voltage - PoE+(IEEE802.3at type 2, Class4)
• Power Consumption - PoE+: Max 22.5W, typical 12.1W

Mechanical

• Color / Material - White / Aluminum Hard-coated dome bubble
• RAL Code - RAL9003
• Product Dimensions / Weight - Ø180x135mm(7.09x5.31"), 2000g(4.41 lb)
• Compatible Conduit hole / Gangbox - 19.1mm(3/4")(M25) single, double, 4" octagon, 4" square
• Hanging Mount (Dome) - SBP-187HMW

Certifications & Standards

• EMC - EN 50121-4 FCC 47 CFR 15 Subpart B Class A ICES-3(A)/NMB-3(A) CE/UKCA - EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3 VCCI CISPR 32 Class A RCM AS/NZS CISPR 32 Class A KS C 9832 Class A , KS C 9835
• Safety - UL 62368-1, CAN/CSA C22.2 NO. 62368-1 IEC 62471
• Environment - EN IEC 63000 IEC 60529 IP66/IP67, ISO 20653 IP6K9K, IEC 62262 IK10+ NEMA 250 type 4X

DORI (EN62676-4 standard)

• Detect (25PPM/ 8PPF) - Wide: 51.7m(166.77ft) / Tele: 176.6m(579.49ft)
• Observe (63PPM/ 19PPF) - Wide: 20.3m(66.71ft) / Tele: 70.7m(231.80ft)
• Recognize (125PPM/ 38PPF) - Wide: 10.2m(33.35ft) / Tele: 35.3m(115.90ft)
• Identify (250PPM/ 76PPF) - Wide: 5.1m(16.68ft) / Tele: 17.7m(57.95ft)
