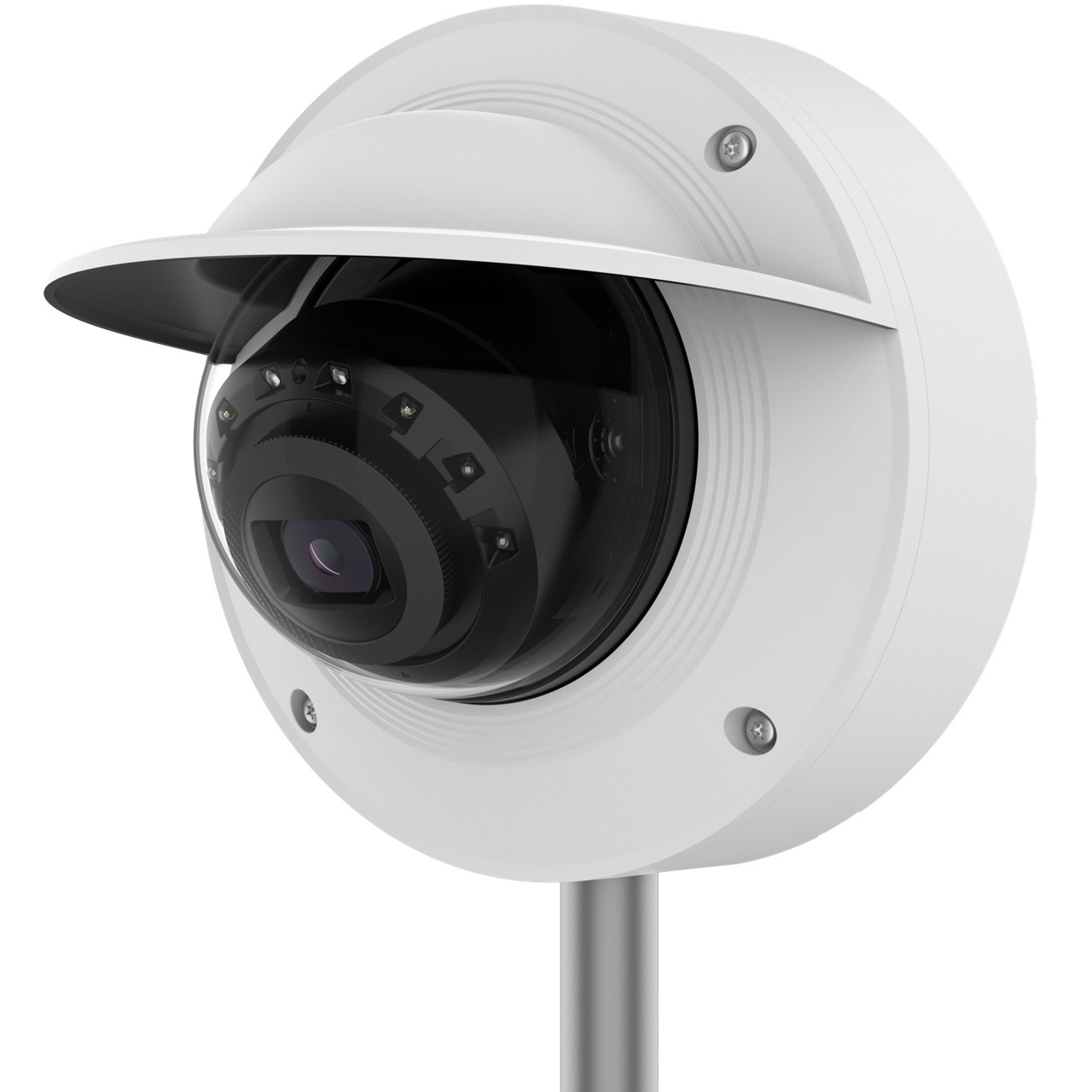

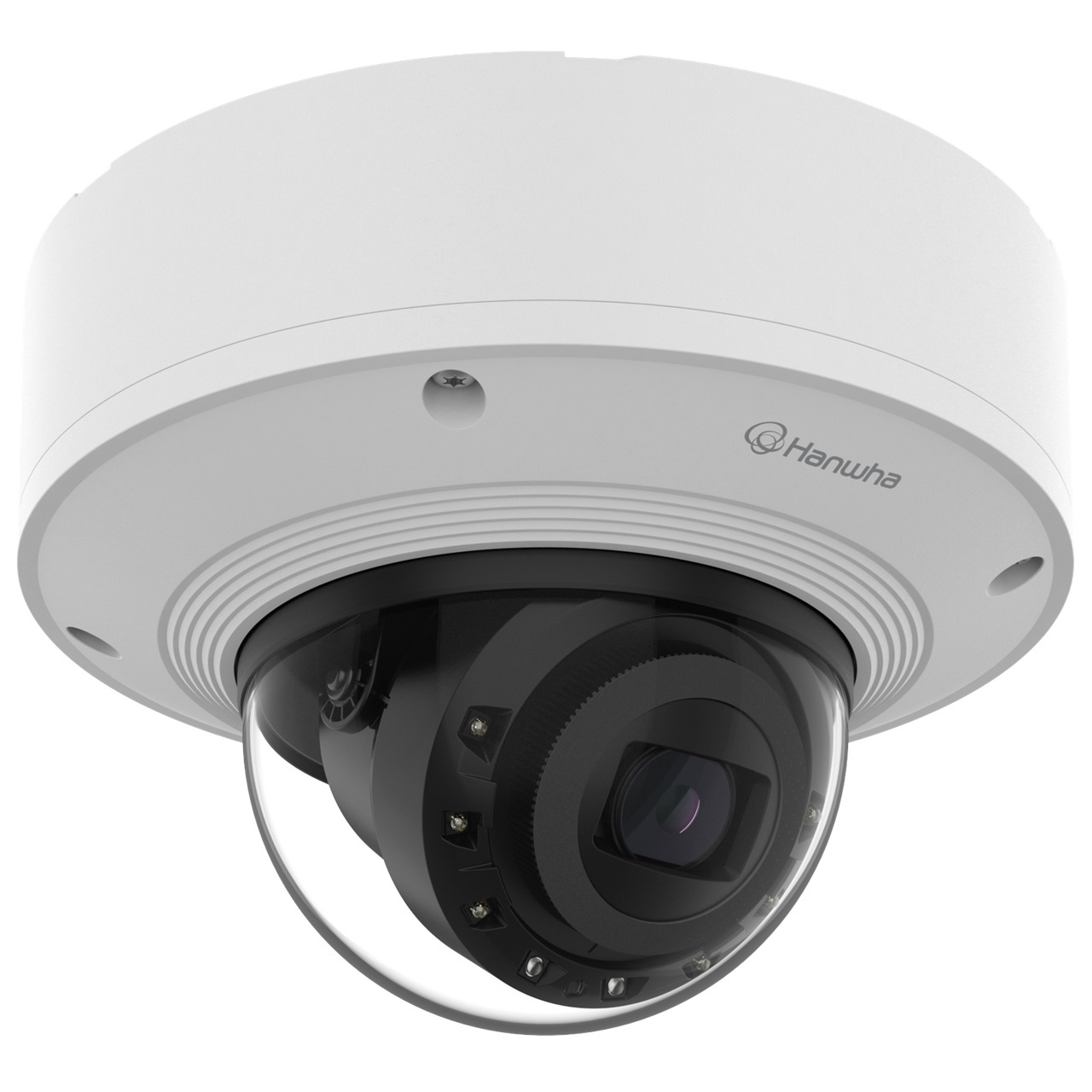

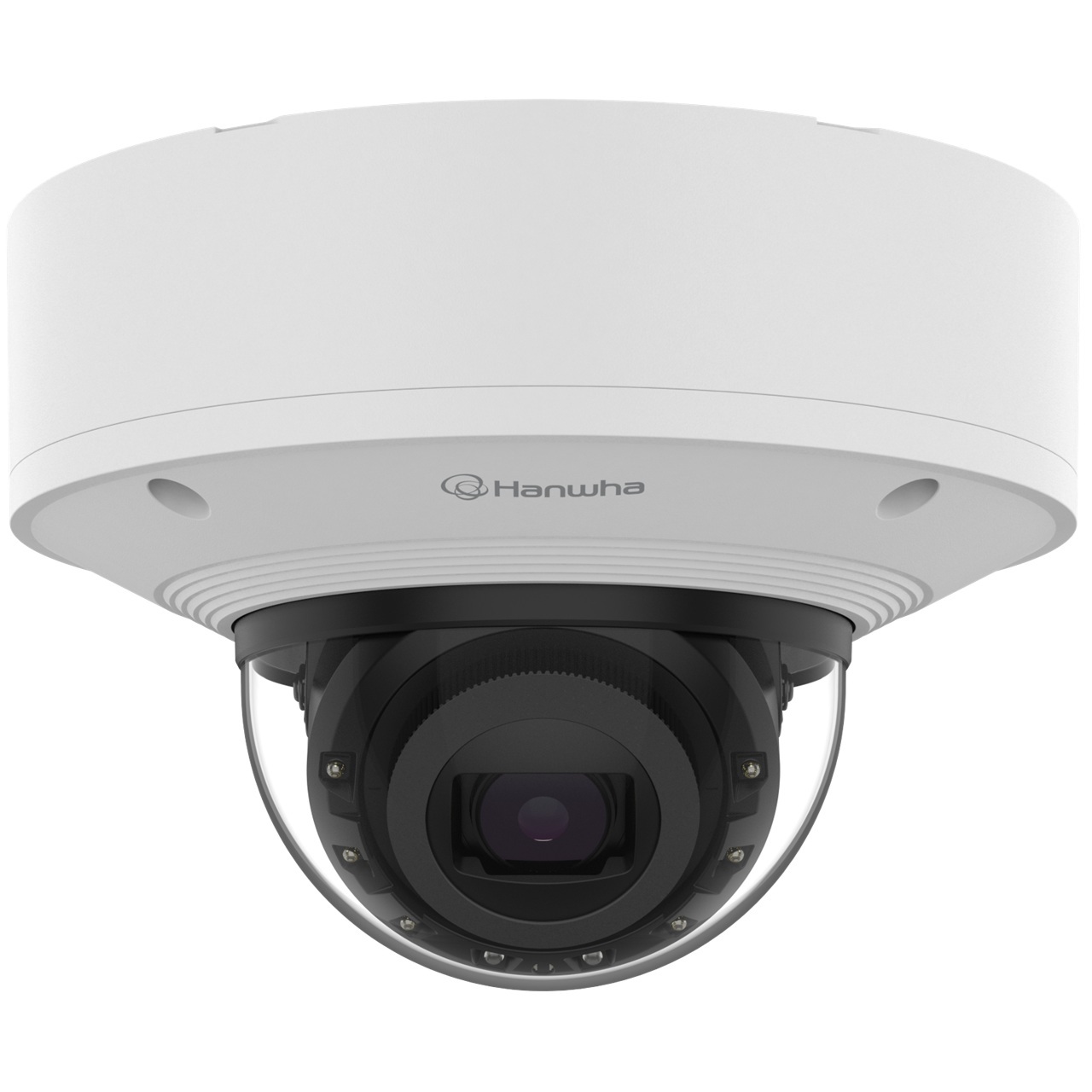

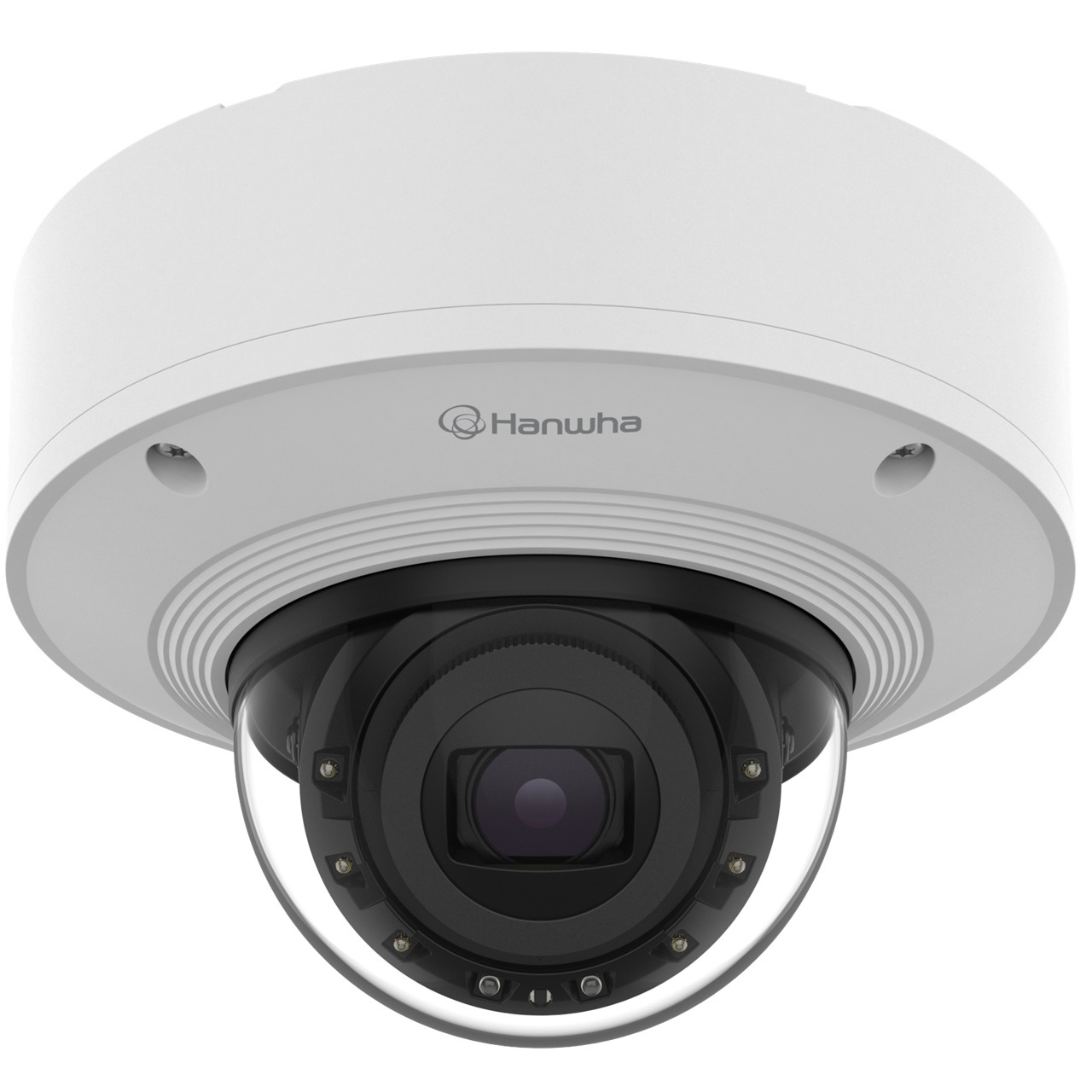

XNV-8093R Hanwha Vision X Series 10.9-29mm Motorized 30FPS @ 6MP Outdoor IR Day/Night WDR Dome IP Security Camera 12VDC/PoE

Specifications

Video

• Imaging Device - 1/1.8" CMOS
• Resolution - 3328x1872, 3072x1728, 2592x1944, 2688x1520, 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
• Max. Framerate - H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 15fps/12fps(60Hz/50Hz)
• Min. Illumination - Color: 0.06Lux(F1.7, 1/30sec, 30IRE) BW: 0.006Lux(F1.7, 1/30sec, 30IRE), 0Lux(IR LED on)
• Video Out - CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation USB: Micro USB Type B, 1280x720 for installation

Lens

• Focal Length (Zoom Ratio) - 10.9~29mm(2.7x) motorized varifocal
• Max. Aperture Ratio - F1.7(Wide) ~ F1.73(Tele)
• Angular Field of View - H : 42.0°(Wide)~15.0°(Tele) V : 22.8°(Wide)~8.4°(Tele) D : 48.7°(Wide)~17.1°(Tele)
• Min. Object Distance - Wide : 2.5m(8.20ft), Tele : 6m(19.69ft)
• Focus Control - Simple focus, Manual
• Lens Type - DC auto iris with hall sensor

Pan / Tilt / Rotate

• Pan / Tilt / Rotate Range - 0°~360° / -45°~85° / 0°~355°

Operational

• Camera Title - Displayed up to 85 characters
• Day & Night - Auto(ICR)
• Backlight Compensation - BLC, HCL, WDR, SSDR
• Wide Dynamic Range - extremeWDR(120dB)
• Digital Noise Reduction - WiseNRâ…¡(Based on AI engine), SSNRâ…¤
• Digital Image Stabilization - Support(built-in gyro sensor)
• Defog - Support
• Motion Detection - 8ea, 8 Point Polygonal zones
• Privacy Masking - 32ea, Quadrangle zones - Color : Gray, Green, Red, Blue, Black, White - Mosaic
• Gain Control - Support
• White Balance - ATW / Narrow ATW / AWC / Manual / Indoor / Outdoor
• LDC - Support(Fill/stretch mode)
• Electronic Shutter Speed - Minimum / Maximum / Anti flicker (2~1/12,000sec) Prefer shutter control(Based on AI engine)
• Video Rotation - Flip, Mirror, Hallway view(90°/270°)
• Analytics - Analytics events based on AI engine : Object detection (Person/Face/Vehicle(car/bus/truck/motorcycle/bicycle)/License plate), IVA (Virtual line/Area, Enter/Exit, Loitering, direction, Appear/Disappear, intrusion) - Analytics events : Defocus detection, Motion detection, Tampering, Fog detection, Audio detection, Sound classification, Shock detection
• Business Intelligence - Based on AI engine: People counting, Queue management, Heatmap
• Alarm I/O - 2 configurable I/O ports, DC 12V output(Max. 50mA)
• Alarm Triggers - Analytics, Network disconnect, Alarm input, App event, Time schedule
• Alarm Events - When alarm trigger occurred - File upload(image) : e-mail/FTP - Notification : e-mail - Recording : SD/SDHC/SDXC or NAS recording at event triggers - Alarm output - Handover(PTZ preset, Send message by HTTP/HTTPS/TCP) - Audio clip playback
• Audio In - Selectable(mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
• Audio Out - Line out, Max.output level: 1Vrms
• IR Viewable Length - WiseIR 70m(229.66ft)

Network

• Ethernet - Metal shielded RJ-45(10/100/1000BASE-T)
• Video Compression - H.265/H.264: Main/High, MJPEG
• Audio Compression - G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz
• Smart Codec - Manual(5ea area), WiseStreamâ…¡, WiseStreamâ…¢(Based on AI engine)
• Bitrate Control - H.264/H.265: CBR or VBR MJPEG: VBR
• Streaming - Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles, 3 virtual channel support)
• Protocol - IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast)
• Security - TPM 2.0 (FIPS 140-2 level 2) HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2) Device Certificate(Hanwha Techwin Root CA, pre-installed) Secure by default certificate Secure OS/Boot/Storage, Verify firmware forgery
• Application Programming Interface - ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform

General

• Webpage Language - English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish,, Portuguese, Czech, Polish, Turkish, Dutch, Greek, Hungarian
• Edge Storage - Micro SD/SDHC/SDXC 2slot Max. 1TB (512GB * 2)
• Memory - 4GB RAM, 512MB Flash

Environmental & Electrical

• Operating Temperature / Humidity - -50°C~+55°C(-58°F ~ +131°F) * Maximum temperature : +60°C (intermittent) NEMA TS-2 : 74°C * Start up should be done at above -30°C less than 95%RH(non-condensing) Humidity control /w GORE vent
• Storage Temperature / Humidity - -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH
• Certification - IP66/IP67, NEMA4X, IK10
• Input Voltage - PoE+(IEEE802.3at, Class4), 12VDC
• Power Consumption - PoE+: Max 22.5W, typical 17.9W 12VDC: Max 20.0W, typical 15.6W Power redundancy failover

Mechanical

• Color / Material - White / Aluminum Hard-coated dome bubble
• RAL Code - RAL9003
• Product Dimensions / Weight - Ø180x125mm(7.09x4.92"), 1900g(4.19 lb)
• Compatible Conduit hole / Gangbox - 3/4" (M25) single, double, 4" octagon, 4" square

DORI (EN62676-4 standard)

• Detect (25PPM/ 8PPF) - Wide: 173.4m(568.88ft) / Tele: 505.6m(1,658.71ft)
• Observe (63PPM/ 19PPF) - Wide: 69.4m(227.55ft) / Tele: 202.2m(663.48ft)
• Recognize (125PPM/ 38PPF) - Wide: 34.7m(113.78ft) / Tele: 101.1m(331.74ft)
• Identify (250PPM/ 76PPF) - Wide: 17.3m(56.89ft) / Tele: 50.6m(165.87ft)
