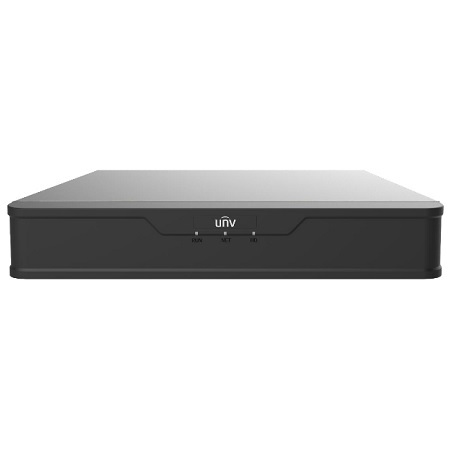

XVR302-16Q3 Uniview Q3 Series 16 Channel HD-TVI/HD-CVI/AHD/Analog + 8 Channel IP DVR Up to 128FPS @ 8MP - No HDD

Specifications

Video/Audio Input

• Analog Video Input - 16-ch, BNC
• IP Video Input - 8-ch(only IP up to 24ch), each channel up to 8MP
• Supported Analog Camera Types
  • Support AHD input - 8MP@15fps, 5MP@20fps, 4MP@30fps, 1080P@30fps, 720P@30fps
  • Support TVI input - 8MP@15fps, 5MP@20fps, 4MP@30fps, 1080P@30fps, 720P@30fps
  • Support CVI input - 8MP@15fps, 5MP@25fps, 4MP@30fps, 1080P@30fps, 720P@30fps, Support CVBS input
• Audio Input - 1-ch, RCA
• Audio Compression - G.711U

Video/Audio Output

• CVBS Output - 1-ch, BNC
• VGA Output - 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
• HDMI Output - 3840 x 2160/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
• Audio Output - 1-ch, RCA
• Synchronous Playback - 16
• Live view display - HDMI/VGA: 1/4/6/8/9/16
• Two-way Audio - 1-ch, RCA

Network

• Incoming Bandwidth - 80Mbps (Up to 112Mbps after all analog channel conversion)
• Outgoing Bandwidth - 160Mbps
• Remote Users - 128
• Protocols - TCP/IP, P2P, UPnP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP
• Browser
  • IE(IE10/11) for Windows
  • Firefox (version 52.0 and above) for Windows
  • Chrome(version 45 and above) for Windows
  • Edge(version 79 and above) for Windows

Encoding

• Recording Resolution - 8MP Lite/5MP/5MP Lite/4MP Lite/1080P/720P/CIF
• Frame Rate
  • Main stream - 8MP Lite@8fps, Sub stream - D1@8fps, 5MP Lite @12fps, 4MP Lite@15fps, 1080P@15fps, 720p@30fps
  • Sub stream - D1@12fps, D1@15fps, D1@15fps, D1@30fps
• Audio Sample Rate - 8KHz,16 bit per channel
• Audio Bit Rate - 64Kbps per channel

Decoding

• Capability - Analog: 16 x 8MP Lite@8, 8x 5MP Lite@12, 8x 4MP Lite@15, 8x 1080P@15, IP: 1 x 8MP@30, 2 x 4MP@30, 4 x 1080P@30

Hard Disk

• SATA - 2 SATA interface
• Capacity - Up to 8TB for each HDD (The maximum HDD capacity varies with environment temperature)

General Alarm

• General Alarm - Motion detection
• Alert Alarm - IP Conflict, Network Disconnected, Disk offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal

External Interface

• Network Interface - 1 RJ45 10M/100M self-adaptive Ethernet Interface
• USB Interface - Rear panel: 2 x USB2.0
• RS485 - 1
• Alarm In - 4-ch
• Alarm Out - 1-ch

General

• Power Supply - 12V DC Power Consumption: ≤ 10 W( without HDD )
• Working Environment - +14°F ~ +131°F ( -10°C ~ + 55°C ), Humidity ≤ 90% RH(non-condensing)
• Dimensions(WxDxH) - 10.2" x 8.9"x1.8" (260mm x226mmx 47mm)
• Weight ( without HDD ) - 2.42lb ( ≤1.1 Kg )

Certification

• Certification - UL /CE /FCC /RoHS /WEEE
