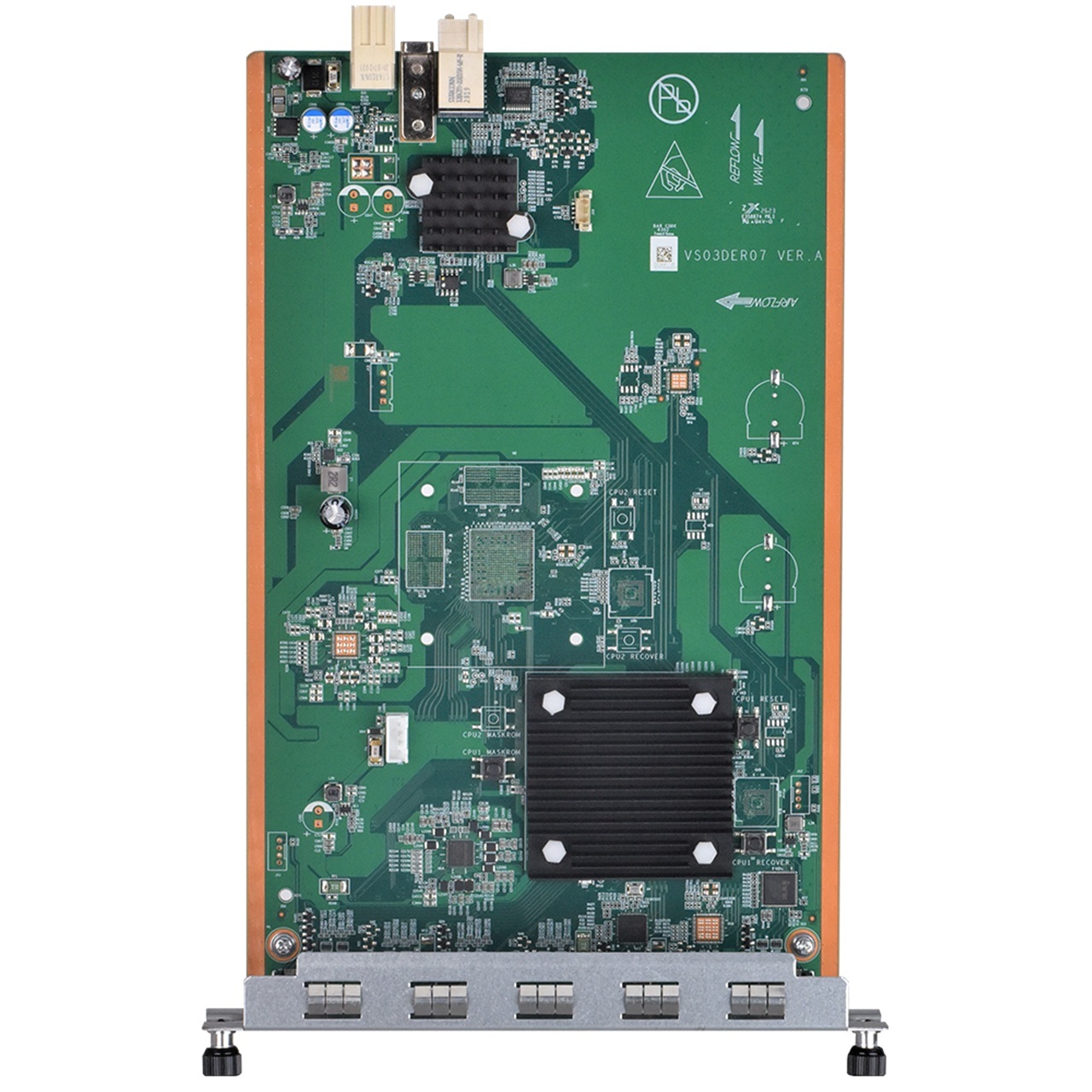

FB-HD04-B-NB Uniview 4 Channel HDMI Output Decoding Card

Specifications

Video/Audio Output

• HDMI Output
  • HDMI1 & HDMI2: - 4K (3840x2160) /60Hz, 4K (3840x2160) /30Hz, 1920x1080 /60Hz, 1920x1080 /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz
  • HDMI3 & HDMI4: - 1920x1080 /60Hz, 1920x1080 /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz

Decoding

• Decoding Capability - HDMI1 & HDMI2 & HDMI3 & HDMI4: 4 x 16MP@30, 5 x 12MP@30, 8 x 4K@30, 12 x 5MP@30, 16 x 4MP@30, 20 x 3MP@30, 32 x 1080P@30, 54 x 960P@30, 64x 720P@30
• Multi-window - 1/4/5/6/7/8/9/16

Working Environment

• Working Temperature - -10°C ~ + 55°C (14°F to +131°F)
• Working Humidity - 10% ~ 90% (non-condensing)

Weight

• Weight - <1 Kg (2.2 lb)
