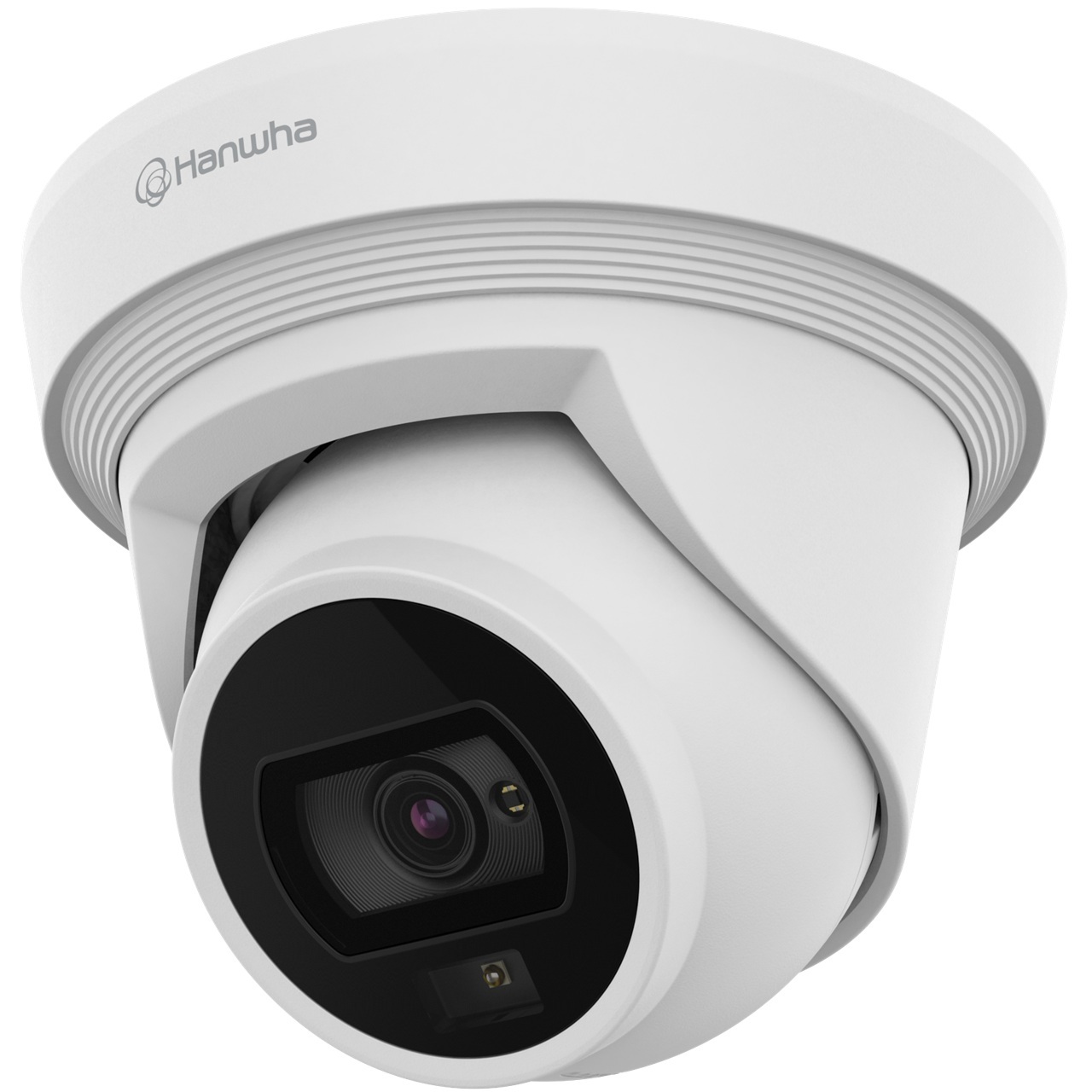

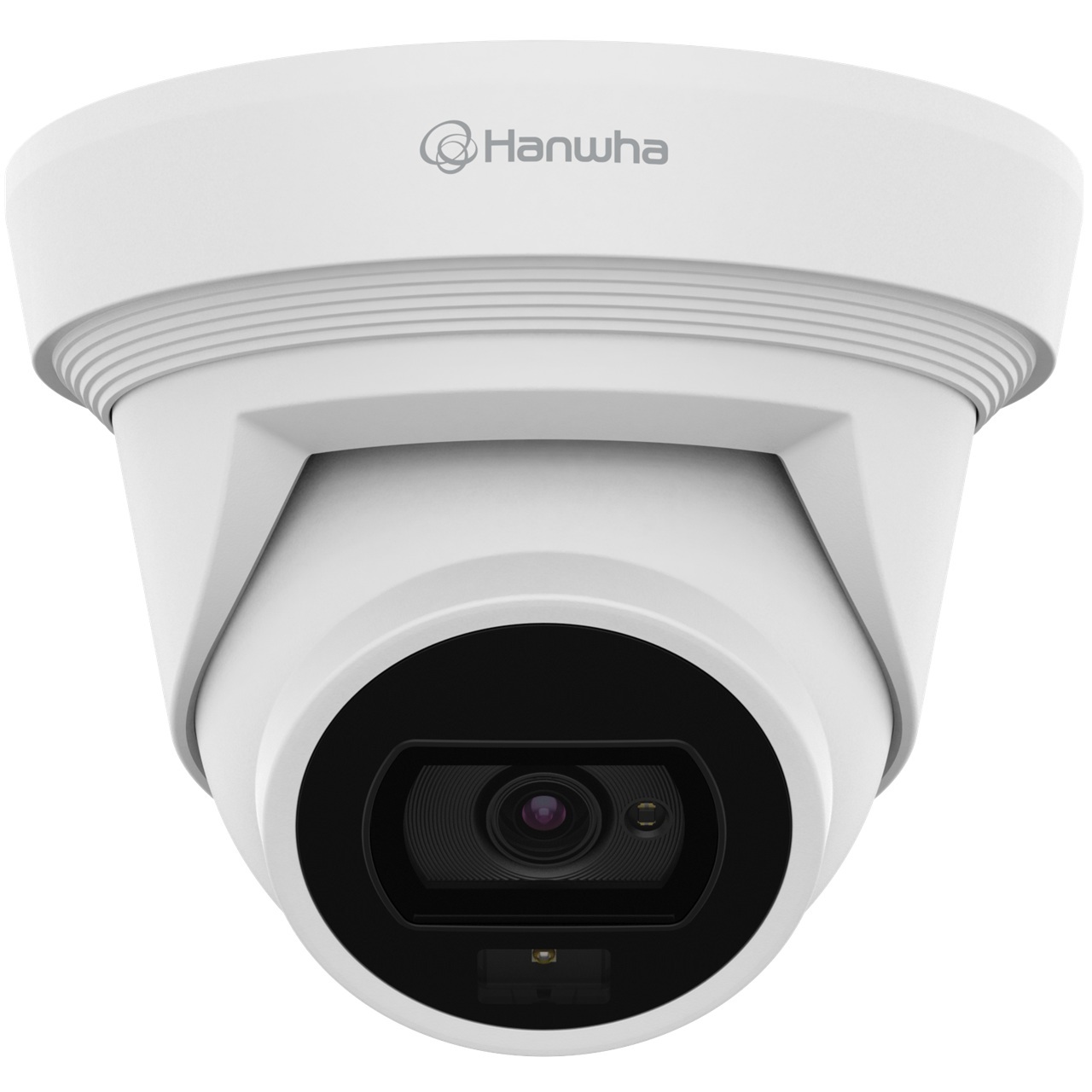

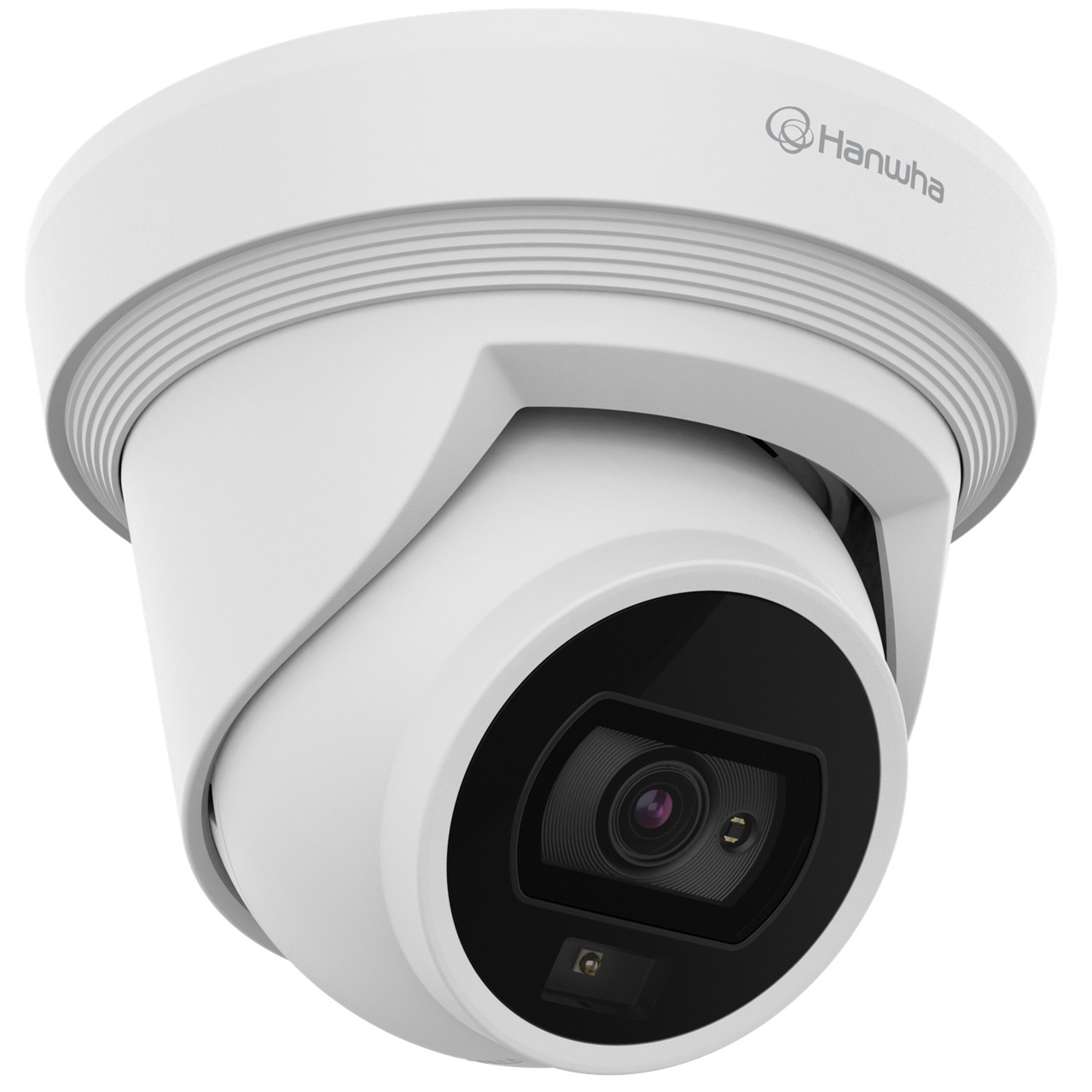

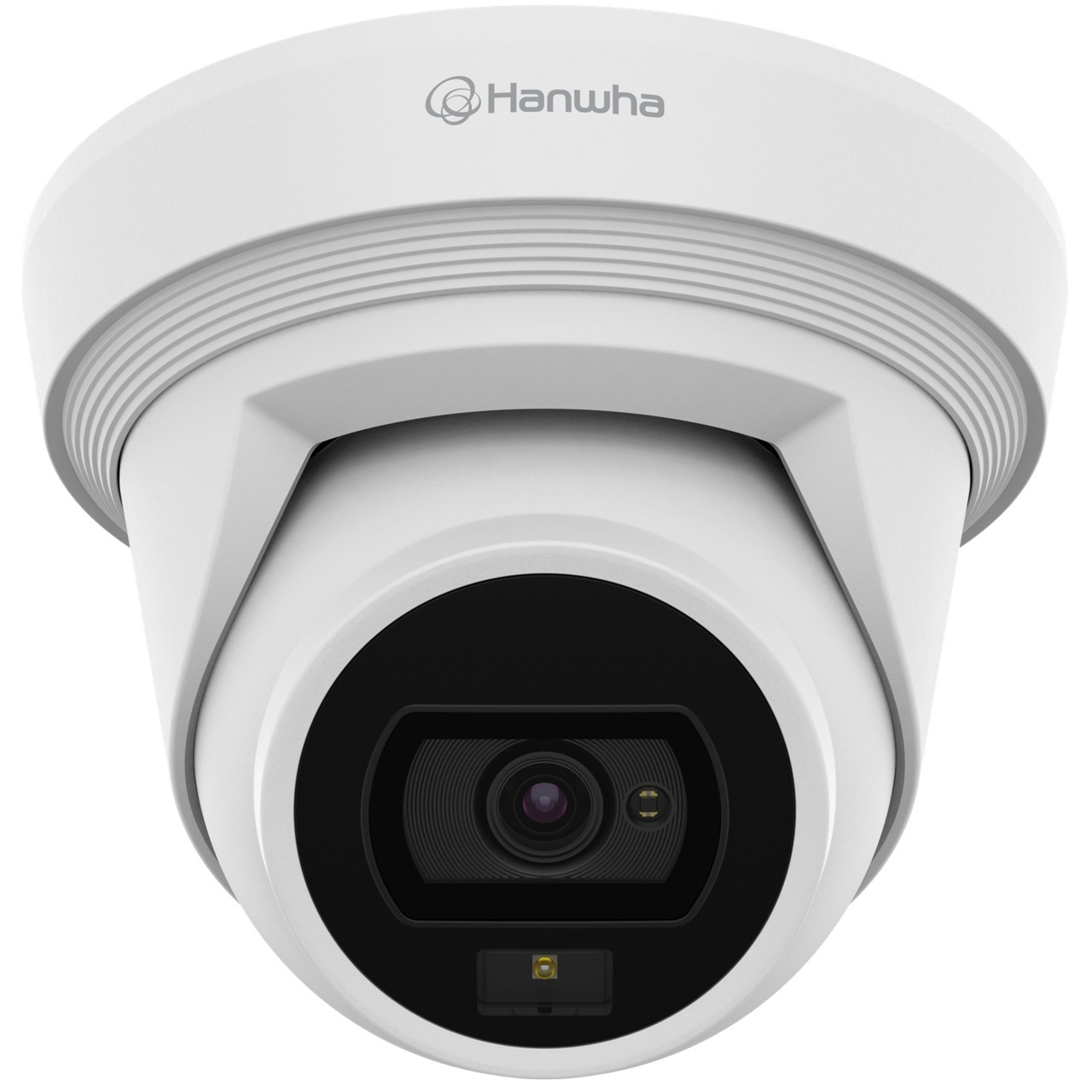

QNE-C8013RL Hanwha Techwin 3mm 30FPS @ 5MP Outdoor IR Day/Night WDR Dual Flat-Eye Dome IP Security Camera POE

Specifications

Video

• Imaging Device - 1/2.8" CMOS
• Resolution - 2592x1944, 2560x1440, 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
• Max. Framerate - H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 30fps (@5MP Max. 5fps)
• Min. Illumination - Color: 0.022Lux (F1.2, 1/30sec) BW: 0.0022Lux (F1.2, 1/30sec, 30IRE), 0Lux(IR LED on)

Lens

• Focal Length (Zoom Ratio) - 3.0mm fixed focal
• Max. Aperture Ratio - F1.2
• Angular Field of View - H: 97° / V: 53° / D: 113°
• Min. Object Distance - 2.0m(6.56ft)
• Focus Control - Fixed
• Lens Type - Fixed IRIS
• Mount Type - M12

Pan / Tilt / Rotate

• Pan / Tilt / Rotate Range - 0°~350° / 0°~75° / 0°~360°

Operational

• Camera Title - Displayed up to 85 characters
• Day & Night - Auto(ICR)
• Backlight Compensation - BLC, WDR, SSDR
• Wide Dynamic Range - 120dB
• Digital Noise Reduction - WiseNRⅡ(Based on AI engine), SSNRⅤ
• Motion Detection - 8ea, 8point polygonal zones
• Privacy Masking - 32ea, 4point Quadrangle zones
• Gain Control - Low / Middle / High
• White Balance - ATW /AWC /Manual /Indoor /Outdoor
• LDC - Support
• Electronic Shutter Speed - Minimum / Maximum / Anti flicker (1/5~1/12,000sec)
• Digital PTZ - Support
• Video Rotation - Flip, Mirror, Hallway view(90°/270°)
• Analytics
  • Classified object type - Person/Vehicle(Type:car/bus/truck/motorcycle/bicycle)
  • Attributes - Person, Vehicle(Type:car/bus/truck/motorcycle/bicycle)
  • Support DetectionShot - Analytics events based on AI engine
  • Motion detection*, Object detection, Virtual line*(Crossing/Direction), Virtual area* (Loitering/Intrusion/Enter/Exit)
  • Analytics events - Defocus detection, Tampering, Virtual area(Appear/Disappear)
  • * Some of the video analytics only works with people and vehicle detection
• Business Intelligence - Based on AI engine: People counting, Vehicle counting, Queue management, Heatmap
• Alarm Triggers - Analytics, Network disconnect
• Alarm Events
  • When alarm trigger occurred
  • File upload(image) : e-mail/FTP
  • Notification : e-mail
  • Recording : SD/SDHC/SDXC or NAS recording at event triggers
  • Handover(PTZ preset, Send message by HTTP/HTTPS/TCP)
  • Light alarm
• Light Type - Dual light (White warm light, IR)
• IR Viewable Length - White LED : 30m(98.42ft), IR : 30m(98.42ft)
• IR Wavelength - long-life 850 nm IR LED

Network

• Ethernet - RJ-45(10/100BASE-T)
• Video Compression - H.265/H.264: Main/High, MJPEG
• Smart Codec - Manual(5ea area), WiseStreamⅢ(Based on AI engine)
• Video Quality Adjustment - H.264/H.265: Target bitrate level control, MJPEG: Quality Level control
• Bitrate Control - H.264/H.265: CBR or VBR MJPEG: VBR
• Streaming - Unicast(20 users) / Multicast Multiple streaming(Up to 5 profiles)
• Protocol - IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP (TCP, UDP Unicast), MQTT
• Application Programming Interface - ONVIF Profile S/G/T/M SUNAPI(HTTP API)

Security

• OS / Firmware Protect - Secure boot, Signed firmware, Firmware encryption
• User authentication - Digest Authentication, Prevent brute-force attack
• Network authentication - 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2)
• Secure Communication - HTTPS, SRTP, WSS(Websocket secure)
• Access Control - Access control based on IP address
• Data Protect - Authentication information encryption, ZIP compression encryption
• Audit - User Access/System/Event log management
• Device ID - Device Certificate(Hanwha Private Root CA)
• Secure Storage - SDcard partition encrypt

General

• Webpage Language - English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
• Edge Storage - Micro SD/SDHC/SDXC 1slot 256GB
• Memory - 2GB RAM, 1GB Flash
• Operating Temperature / Humidity - -40°C~+60°C(-40°F~+140°F) / 0~95% RH * Start up should be done at above -30°C Humidity control /w Air sheet
• Storage Temperature / Humidity - -50°C~+60°C(-58°F~+140°F) / 0~95% RH
• Certification - IP66/IP67, IK10
• Input Voltage - PoE(IEEE802.3af, Class3)
• Power Consumption - PoE: Max 10.0W, typical 4.5W

Mechanical

• Color / Material - White / Aluminum
• RAL Code - RAL9003
• Product Dimensions / Weight - ø140.0x99.6mm(ø5.51x3.92"), 790g(1.74 lb)
• Compatible Conduit hole / Gangbox - Conduit hole : None, Gangbox : Single, Double, 4" Octagon
• Hanging Mount (Dome) - SBP-140HMW
• Backbox - SBV-140BW
• Ceiling Mount (Assy) - SBP-300CMW1/900CMW, SBP-150CMI/300CMI, SBP-300CMTW, SBP-300CMTS
• Wall Mount - SBP-140WMW, SBP-300WMW/WMW1, SBP-390WMW2
• Pole Mount - SBD-140PMW, SBP-300PMW2, SBD-140PMB
• Parapet Mount - SBP-300LMW, SBP-156LMW1
• Corner Mount - SBP-300KMW1, SBD-140KMB
• Tilt Mount - SBV-140TMW
• Cabinet - SBP-300NBW

Certifications & Standards

• EMC
  • FCC 47 CFR 15 Subpart B Class A
  • ICES-3(A)/NMB-3(A)
  • CE/UKCA
  • EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3
  • VCCI CISPR 32 Class A
  • RCM AS/NZS CISPR 32 Class A
• Safety - UL 62368-1, CAN/CSA C22.2 NO. 62368-1 IEC/EN 62471
• Environment - IEC/EN 63000, IEC/EN 60529 IP66/IP67, IEC/EN 62262 IK10

DORI (EN62676-4 standard)

• Detect (25PPM/ 8PPF) - 45.9m(150.49ft)
• Observe (63PPM/ 19PPF) - 18.3m(60.19ft)
• Recognize (125PPM/ 38PPF) - 9.2m(30.09ft)
• Identify (250PPM/ 76PPF) - 4.6m(15.05ft)
