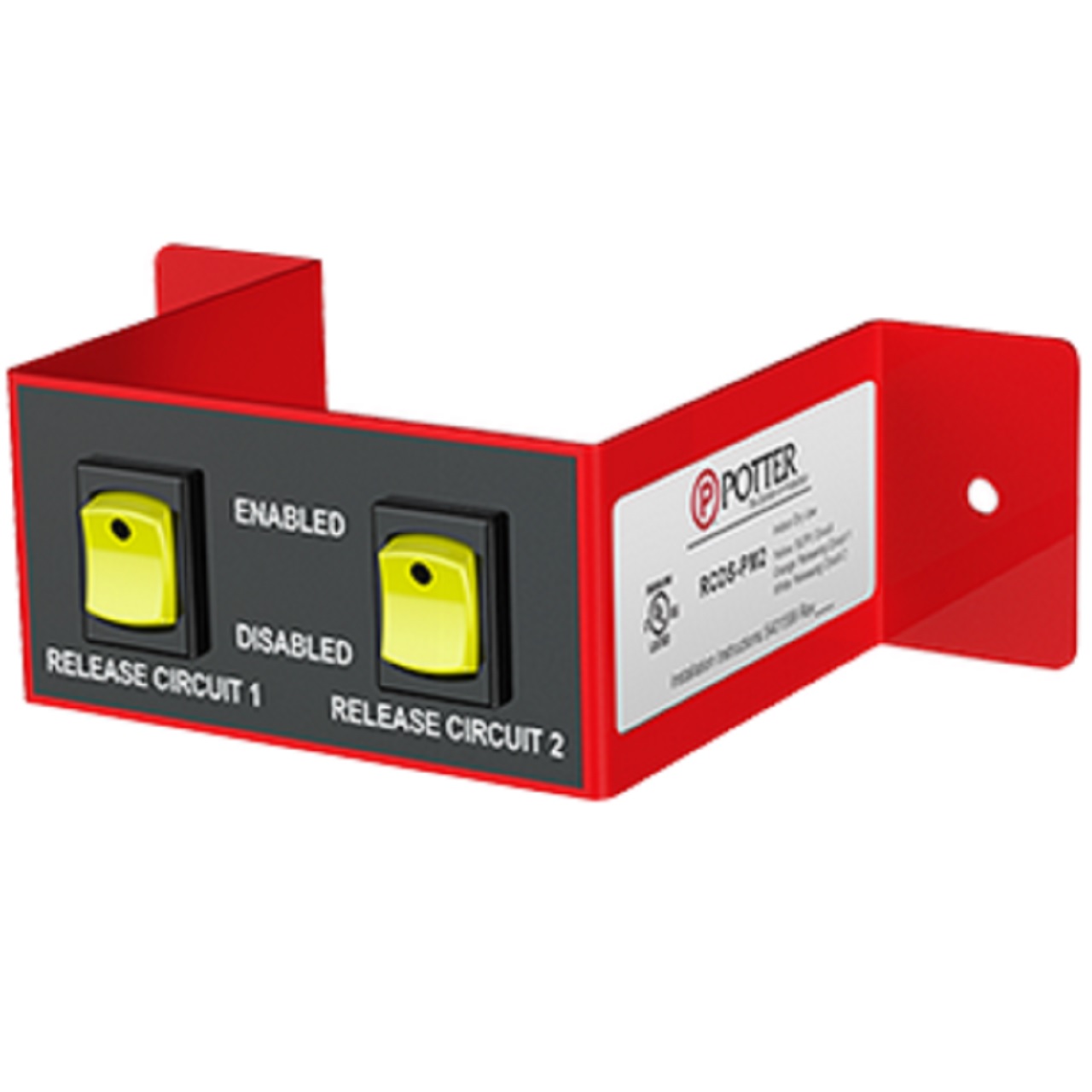

3001014 Potter RCDS-PM2 Release Circuit Disable Switch, Panel Mount Double

Features

• Meets requirements of NFPA 72 and 2001
• Mounts inside PFC-4410G3 enclosure
• No key required due to mounting in a locked enclosure
• Compatible with any 24VDC system
• Available in 1 or 2 switch models

Description

The device consists of one or two toggle switches for disabling one or two releasing zones. The switches are mounted to a metal bracket that mounts inside the PFC-4410G3 enclosure.

Application

The RCDS-PM complies with the requirements of NFPA 72 (National Fire Alarm and Signaling Code) and NFPA 2001(Standard on Clean Agent Fire Extinguishing Systems): 1) Specifying a physical switch to disconnect the release circuit in place of a software controlled disconnect. 2) Creating a supervisory condition on the associated release panel

Operation

When the switch is in the disabled position the panel will be in a supervisory condition and the releasing circuit will be in a trouble condition.

Technical Specifications

• Dimensions - Mounts in PFC-4410G3
• Contact Rating - 3 AMP @ 30 VDC
• Environmental Specifications - Indoor use only
• Temperature range - 32°F to 120°F (0°C to 49°C)
