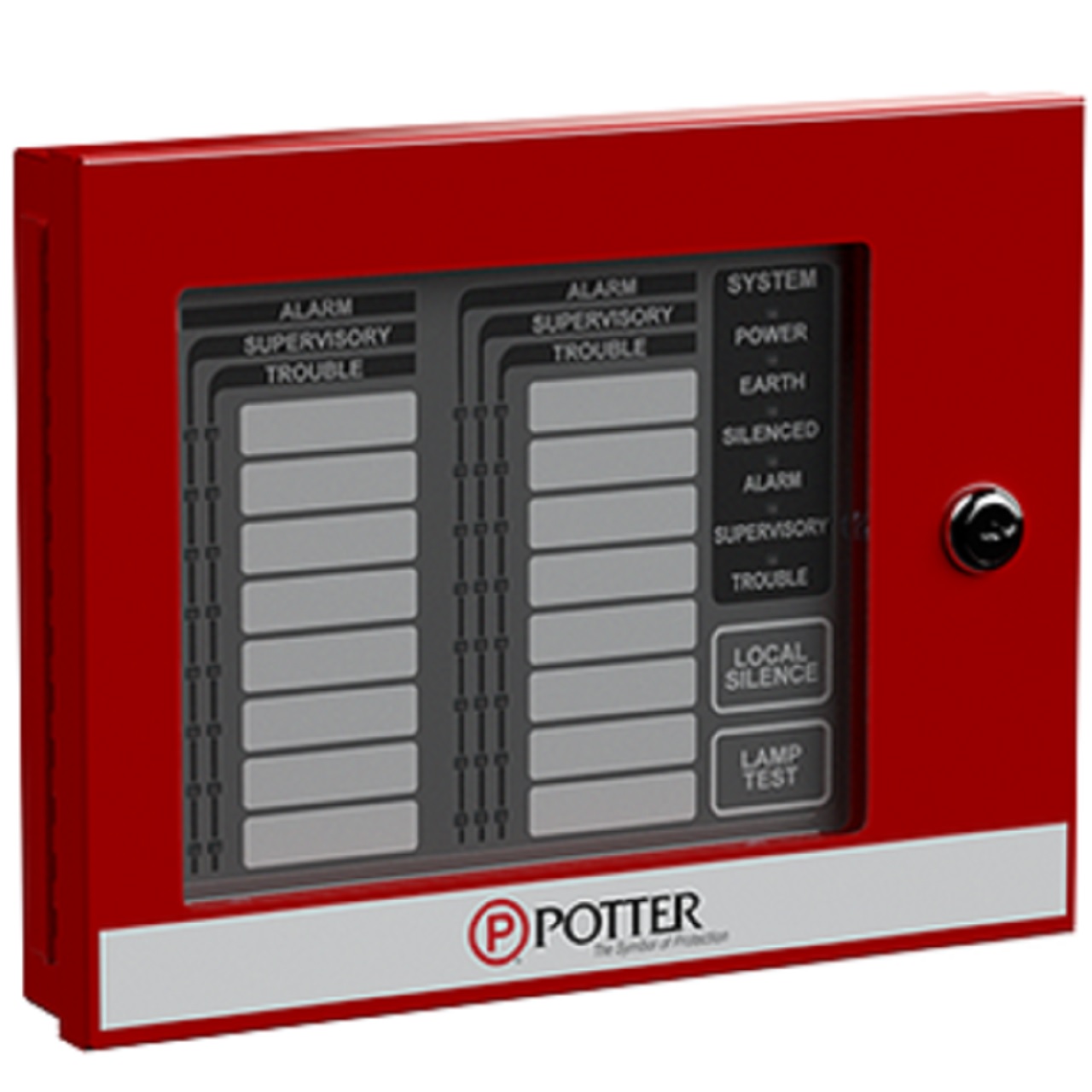

3006743 Potter LED-4410G3 Ancillary Display

Features

• Capable of displaying alarms, supervisory, trouble status for 16 zones
• Common LEDs for status indication
• Maximum 10 LED-4410G3 for: PFC-4410G3
• Maximum P-Link wire length of 6,500 feet
• Product includes a 5 year warranty

Description

The LED-4410G3 is a LED annunciator for the Potter PFC-4410G3. The LED-4410G3 communicates using a RS-485 (P-Link) connection to the Main Panel providing zone specific indication of Alarm, Supervisory, Trouble conditions. The LED-4410G3 features 2 slide-in labels allowing each of the 16 zones to be customized for any application. It can be mounted on a single gang electrical box or a four-square electrical box. The annunciator utilizes a sheet metal enclosure secured with a Potter lock.

Installation

The LED-4410G3 is connected to the PFC-4410G3 releasing control panels using a four wire RS-485 connection. The connection is power limited and supervised. Up to ten (10) LED-4410G3 annunciators can be connected using Class B or Class A wiring. Class A wiring requires an optional Class A Expander. The higher current required for the LED outputs can be provided by the panel, or from an auxiliary power source as shown below. The auxiliary power can be any 24VDC listed source, and is fully supervised. Blank zone labels are provided for use with the LED-4410G3 to label each zone name or identifier. The labels may be printed or written on the supplied card-stock, and then inserted into the back of the front panel as shown in Figure 2.

Specifications

• P-Link Standby Current (24VDC) - 25 mA
• P-Link Alarm Current (24VDC) - 30 mA
• LED PWR Standby Current (24 VDC) - 10 mA
• LED PWR Alarm Current (24 VDC) - 210 mA
• Operating Temperature - 0°C-49°C (32°F-120°F)
• Environmental Limitations - Indoor Dry Use
• Maximum Wire Length - 6500 ft.
• Maximum Displays - 10
• Size (WxHxD) - 10” x 7-7/8” x 1-5/8”
• Wire Gauge - 12 AWG-22 AWG
