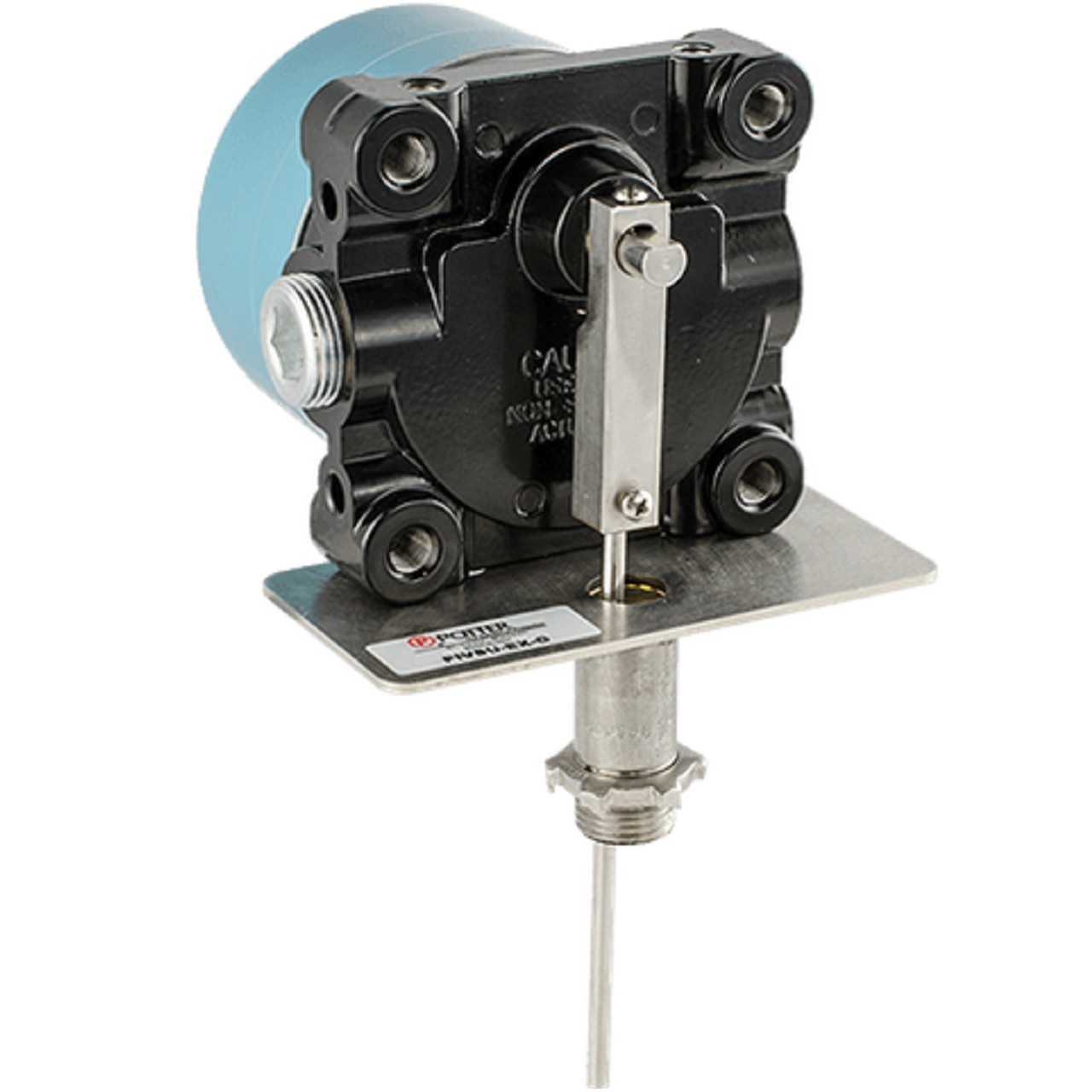

1010123 Potter PIVSU-EX-O Valve Supervisory Device-Explosion Proof/ Weatherproof/ Corrosion Resistant-SPDT F/piv & Butterfly Valves

Features

• NEMA 1, 3, 4, 4X, 6, 6P, 9 & 13 IP66 and 67
• Water tight, dust tight and corrosion resistant for outdoor use
• For use in hazardous locations: Class I, Div. 1 & 2, Groups C, D, Class II, Div. 1 & 2, Groups E, F, G
• Explosion proof switch enclosure: UL Listed, file #E14274, CSA Certified, File #LR57324, ATEX/IEC EX Approved, File #KEMA 04ATEX2312X
• Adjustable length trip rod
• Ample wiring space
• RoHS Compliant

Description

The PIVSU-EX-O is designed to supervise the position of a Post Indicator or Butterfly valve in hazardous outdoor locations. The device mounts in a 1/2” NPT threaded nipple to the valve body. When properly mounted, the indicator of the Post Indicator valve or the operating mechanism of the Butterfly Valve will be pushing against the return spring of the PIVSU-EX-O so that as the valve is operated, the spring in the PIVSU-EX-O pulls the trip rod over and activates the switch. To aid with installation the trip rod length is adjustable. This device features a UL listed explosion proof switch enclosure.

Testing

The operation of the PIVSU-EX-O and its associated protective monitoring system shall be tested upon completion of the installation and inspected, tested and maintained in accordance with all applicable local and national codes and standards and/or the Authority Having Jurisdiction, (manufacturer recommends quarterly or more frequently). A minimum test shall consist of turning the valve operating mechanism towards the closed position. The PIVSU-EX-O shall operate within the first two revolutions of the operating mechanism. Fully close the valve and ensure the PIVSU-EX-O does not restore. Fully open the valve and ensure that the PIVSU-EX-O restores to normal.

Technical Specifications

• Weight - 3.3 lbs
• Materials - Switch Enclosure - Aluminum, Plate/Nipple/Hardware - Stainless Steel
• Contact Ratings
  • One set of SPDT
  • 15 Amps at 125VAC
  • .5 Amps at 125VDC
  • Terminals accept up to 14AWG wire
• Environmental Limitations
  • -13°F to 185°F (-25°C to 85°C)
  • Class I, Div. 1 & 2, Groups C, D
  • Class II, Div. 1 & 2, Groups E, F, G
  • NEMA 1, 3, 4, 4X, 6, 6P, 9, 13, IP66 and 67
• Conduit Entrances - Two 3/4" -14 NPT threaded entrance
• Mounting - 1/2" NPT
• Service Use - NFPA 13, 13D, 13R, 72
