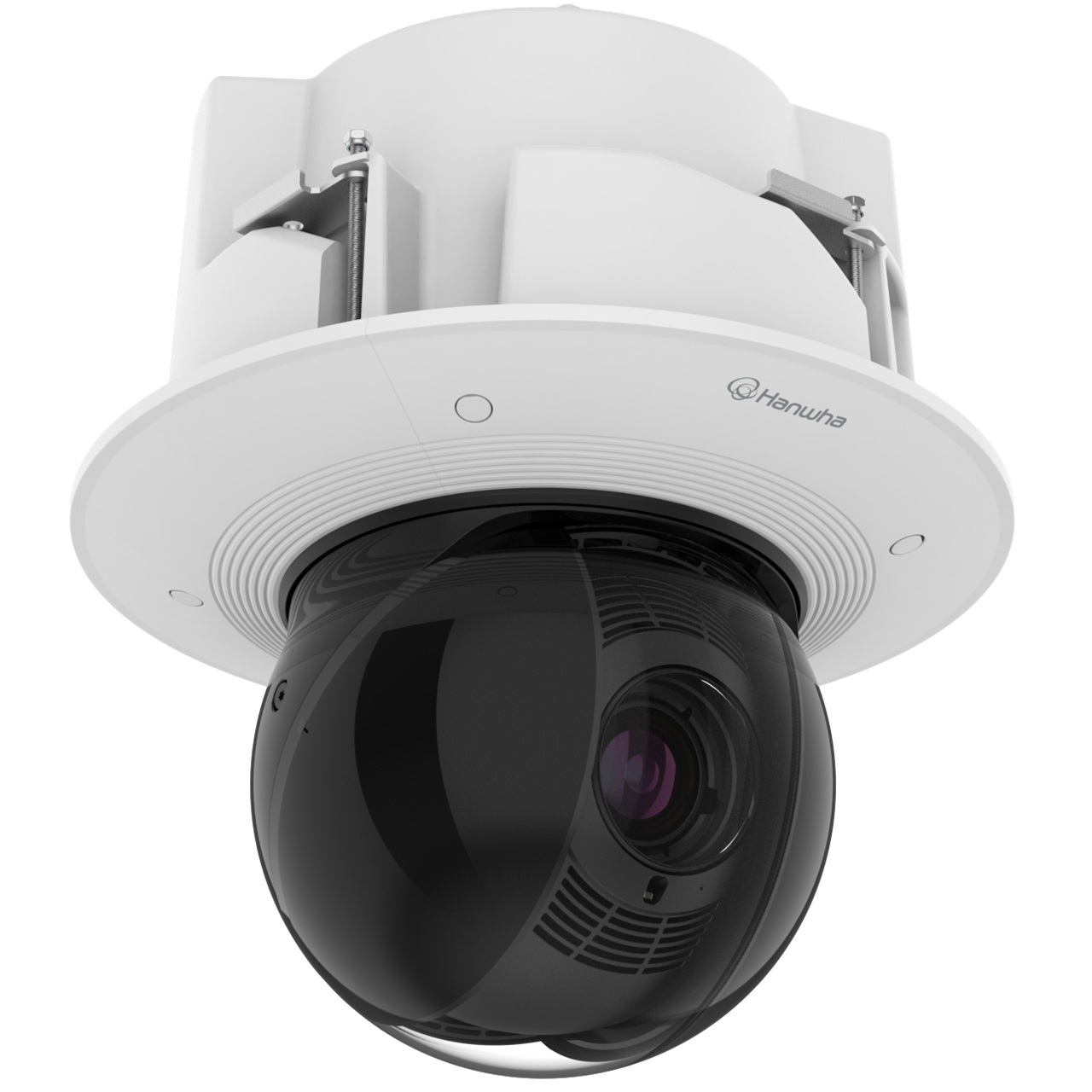

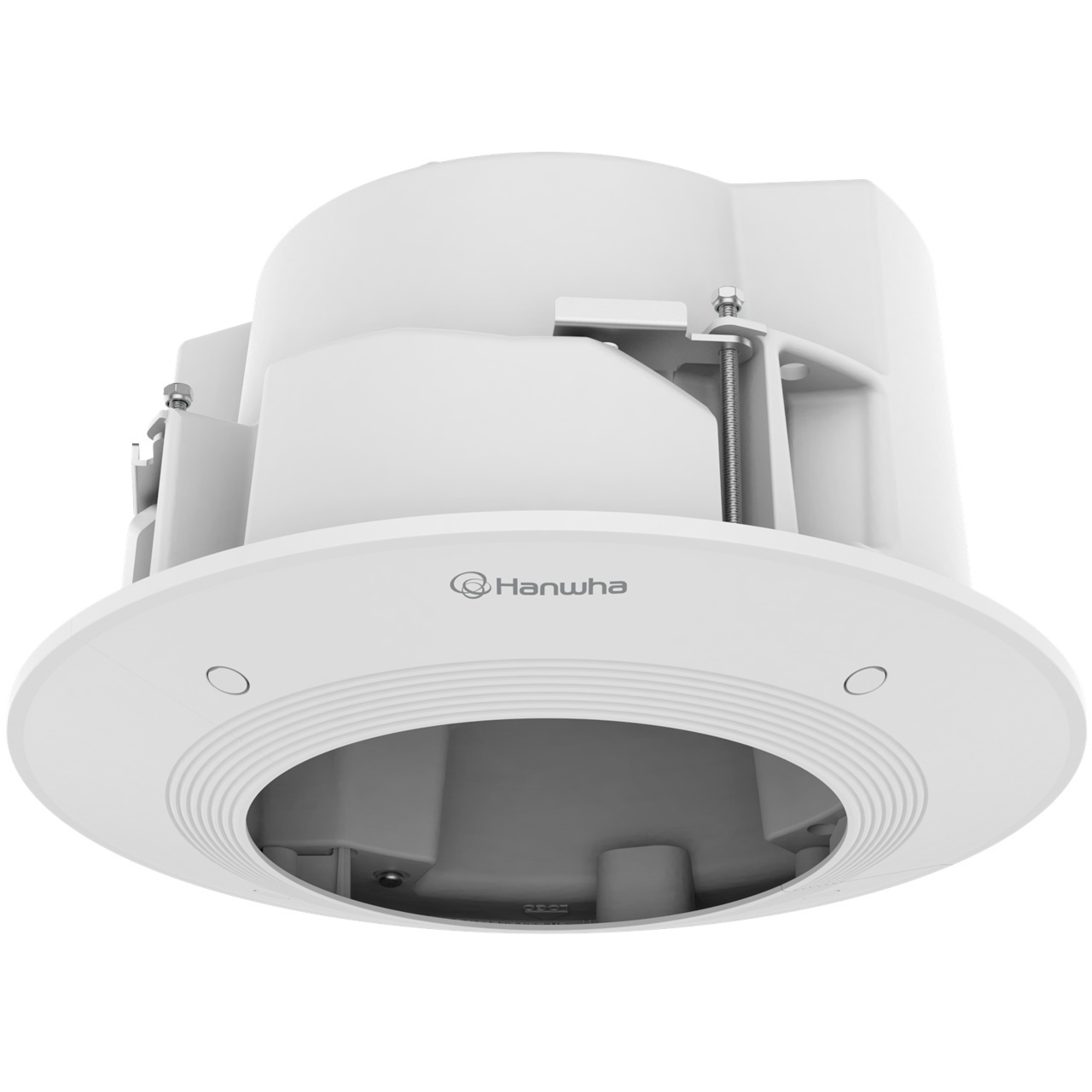

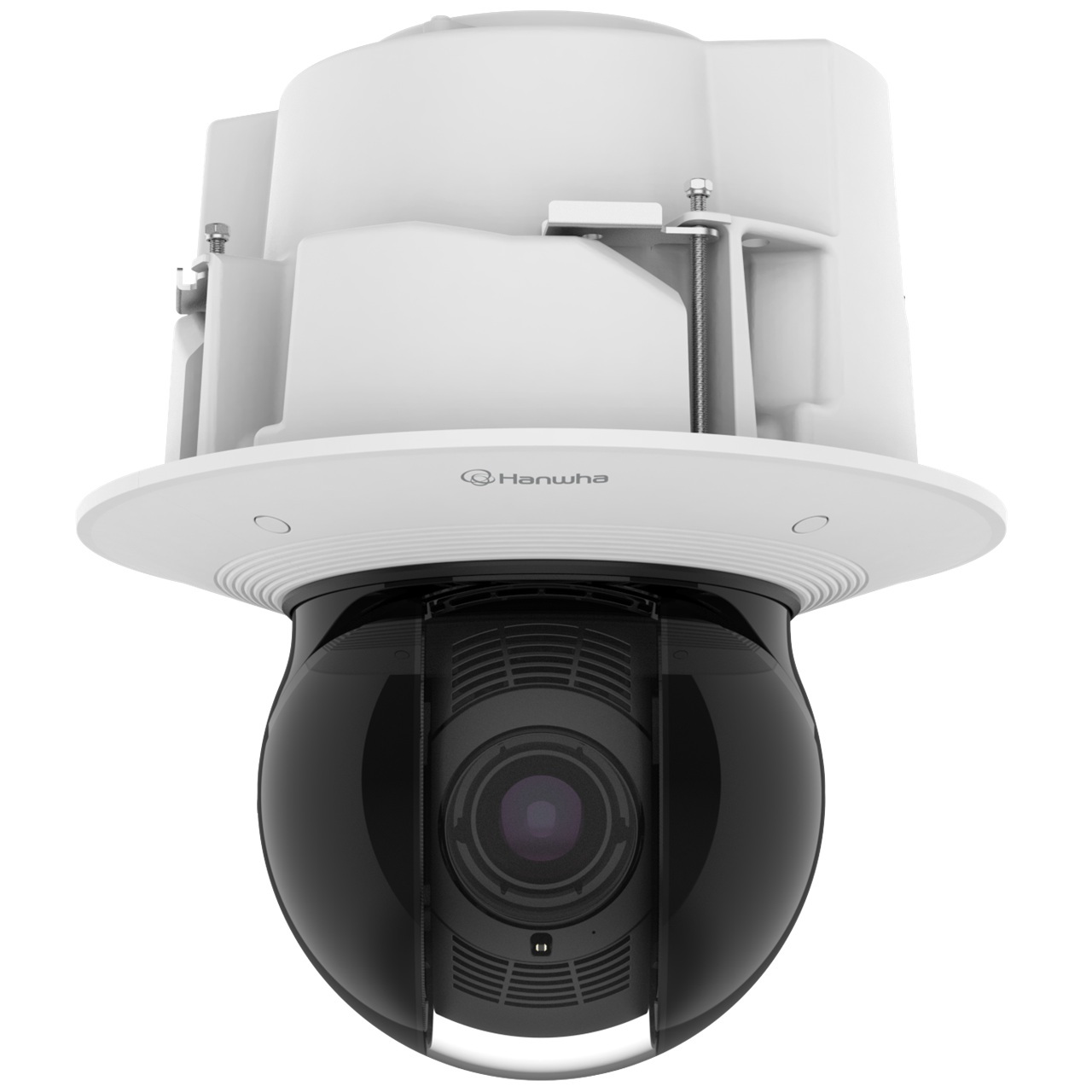

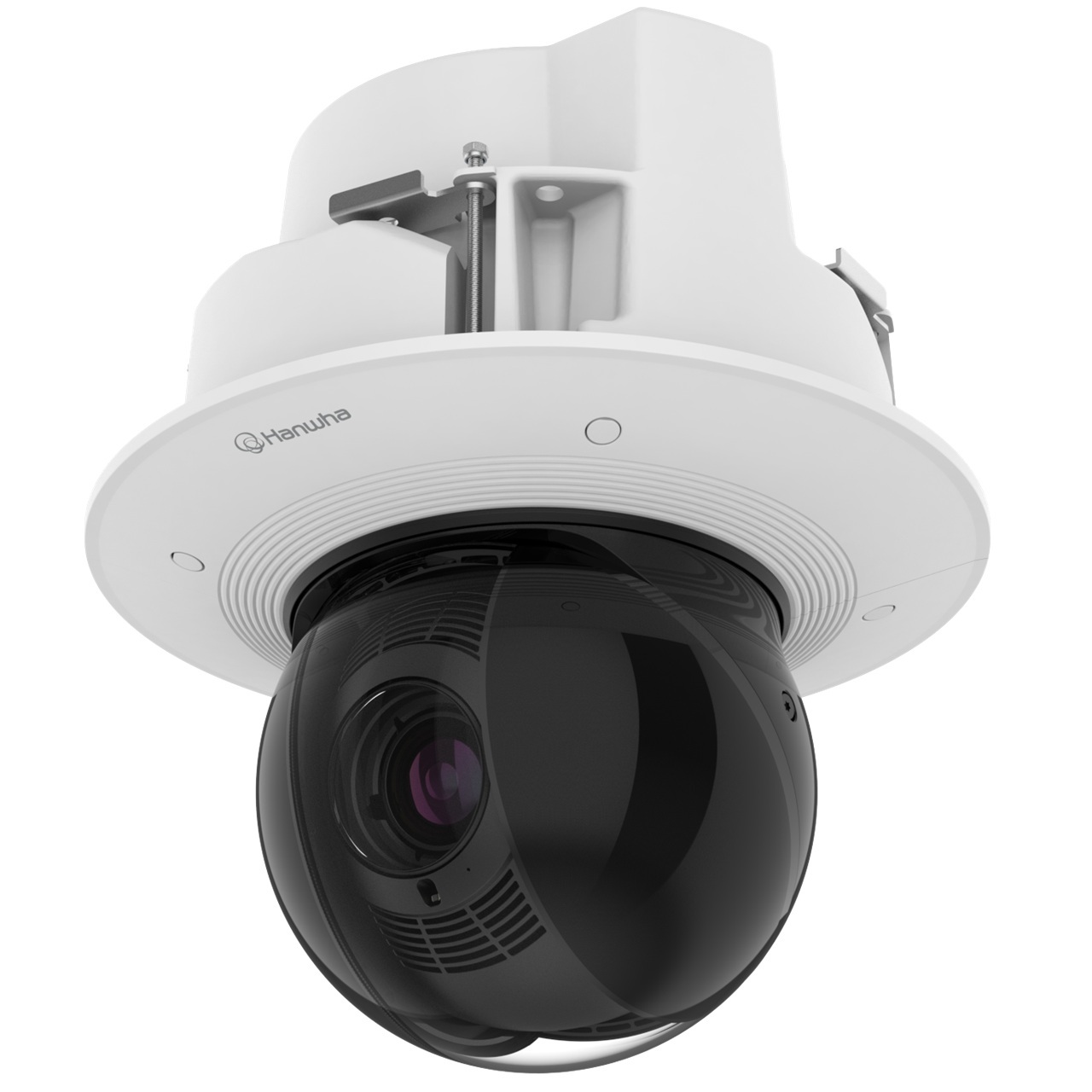

SHP-1730FPW Hanwha Vision Flush Mount

SHP-1730FPW Hanwha Vision Flush Mount	SHP-1730FPW Hanwha Vision Flush Mount	SHP-1730FPW Hanwha Vision Flush Mount
SHP-1730FPW Hanwha Vision Flush Mount	SHP-1730FPW Hanwha Vision Flush Mount
(Click to see larger image and other views)

SHP-1730FPW Hanwha Vision Flush Mount

SHP-1730FPW Hanwha Vision Flush Mount	SHP-1730FPW Hanwha Vision Flush Mount	SHP-1730FPW Hanwha Vision Flush Mount
SHP-1730FPW Hanwha Vision Flush Mount	SHP-1730FPW Hanwha Vision Flush Mount
(Click to see larger image and other views)

SKU: SHP-1730FPW

Brand: Hanwha Vision

Flush mount

Features:

Plenum rated in-ceiling mount Compatible with XNP-C7310R & C9310R

More details...

MPN: SHP-1730FPW
EAN: 8801089226143

MSRP Price: $185.00

Web Price$185.00

Quantity:

Add to List

DWG Dealer Program Become a DWG Dealer to see your pricing. Dealer pricing, quoting, volume discounts, and sales support on thousands of products.

Become a DWG Dealer → DWG Dealer Sign In

Product Details

Specifications

Mechanical

Color - White
Material - PC(Polycarbonate), Aluminum
RAL code - RAL9003
Product dimensions / weight - ø311x188mm(ø12.24x7.40")/2450g(5.40lb)
Tile thickness - 10~70mm(0.4~2.8")
Mount Screw size - TR20, T30
Max. load - 7kg(15.43lb) Maximum load of ceiling board: 15kg(33.10lb)
Conduit hole - 19.1mm(3/4")(M25), 12.7mm(1/2")(M20)
Supported products - XNP-C7310R, XNP-C9310R * For further compatible models, please visit our website or use Toolbox

SHP-1730FPW Specifications PDF
