4130030 Potter EBP-401 Long Range Door Annunciator System (Kit)

Features

• Intelligent microprocessor driven system
• 40 ft. detection range across doorway
• Four user selectable chime sounds
• Advanced circuit integrated with active-infrared beam technology
• High/low volume control
• Expandable using additional chimes (CM-5)

Description

The EBP-401 is a surface mount, 40 ft., long range annunciator system using active infrared technology. This invisible single infrared beam triggers a pleasant chime sound when the infrared beam is interrupted. The system can be installed anywhere inside the buildings where traffic surveillance is required.

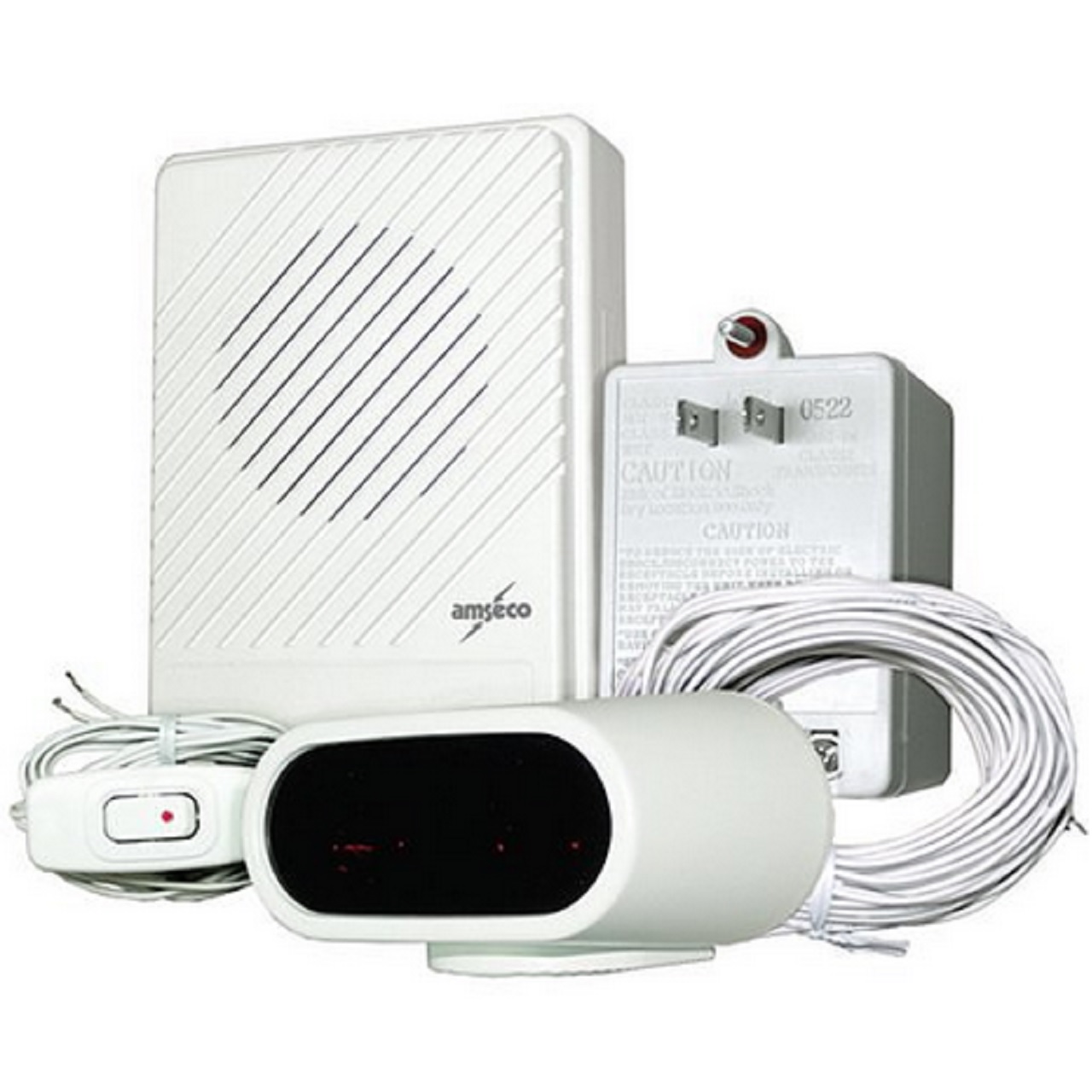

Complete Kit Includes:

• 1 Electronic chime
• 1 Infrared sensor
• 1 Reflector
• 1 Power transformer (12V AV 20VA)
• 1 Long plastic bracket
• 1 Metal short bracket
• 1 Short plastic bracket
• 1 6 ft. power cord with in-line switch
• 1 26 ft. 2-conductor wires
• 6 3/4” sheet metal screws
• 1 3/8” bolt w/locking washer
• 2 5/8” machine screws w/washers and nuts
• 1 Manual

Specifactions

• Part Information - EBP-401
• Description - Long Range Wired Annunciator System
• Detection method - Active infrared
• Detection range - 40 ft.
• Maximum transmission range - 1000 ft. AWG#22 2P wire
• Power source - Sensor: 12V AC/DC, 20VA, Chime: 12V DC, 10VA
• Power consumption: Standby - Sensor: 50mA, Chime: 100mA
• Power consumption: In alarm - Sensor: -, Chime: 500mA
• Volume level - 80dB (low) - 95dB (high)
• Chime sounds selection - Selectable among 4 sounds by a dip SW
• Chime sounds level selection - JP1 (Jumper SHORT LOW Jumper OPEN HIGH)
• Response time - 4m sec.
• Light source - Infrared pulse beam 950mm
• Installation location - Indoor
• Infrared beam interception warning - Sensor: JP1 selectable OFF/10 sec/60 secretary
• Install setting - Transformer Power ON - Red Alignment LED ON - Transformer Power OFF - Transformer Power ON - Setting
• Power switch - Yes
• Temperature - 14°F - 122°F (-10°C - 50°C)
• Weight - Sensor: 125g, Chime: 164.4g
• Dimension: (W x H x D) - Sensor: 2 1/2” x 1 7/8” x 3 7/16”, Chime: 4 7/8” x 3 1/2” x 1 3/8”
