4130015 Potter EBP-407C Door Annunciator System (Kit)

Features

• Microprocessor driven system
• Independent entry/exit counters
• 20 ft. detection range across doorway
• Resettable 4-digit digital counter (up to 9999)
• Distinctive entry/exit chime sound
• Electrically erasable memory (EEPROM)
• Selectable detection range 10 ft. min., 20 ft. max.
• Chime volume control
• Expandable using additional chimes (CM-4)
• Door bell feature using optional call button (AES-1)

Description

The EBP-407C annunciator system is designed with a superior dual-counter, dual-active, infrared technology. The invisible infrared beam is designed to trigger a pleasant chime sound. The infrared signal differentiates among entry and exit. The dual entry/exit counter registers a count any time the beams are interrupted. Each event is counted, recorded, and registered by the built-in digital counter, and can be viewed and compared later in entry/exit modes.

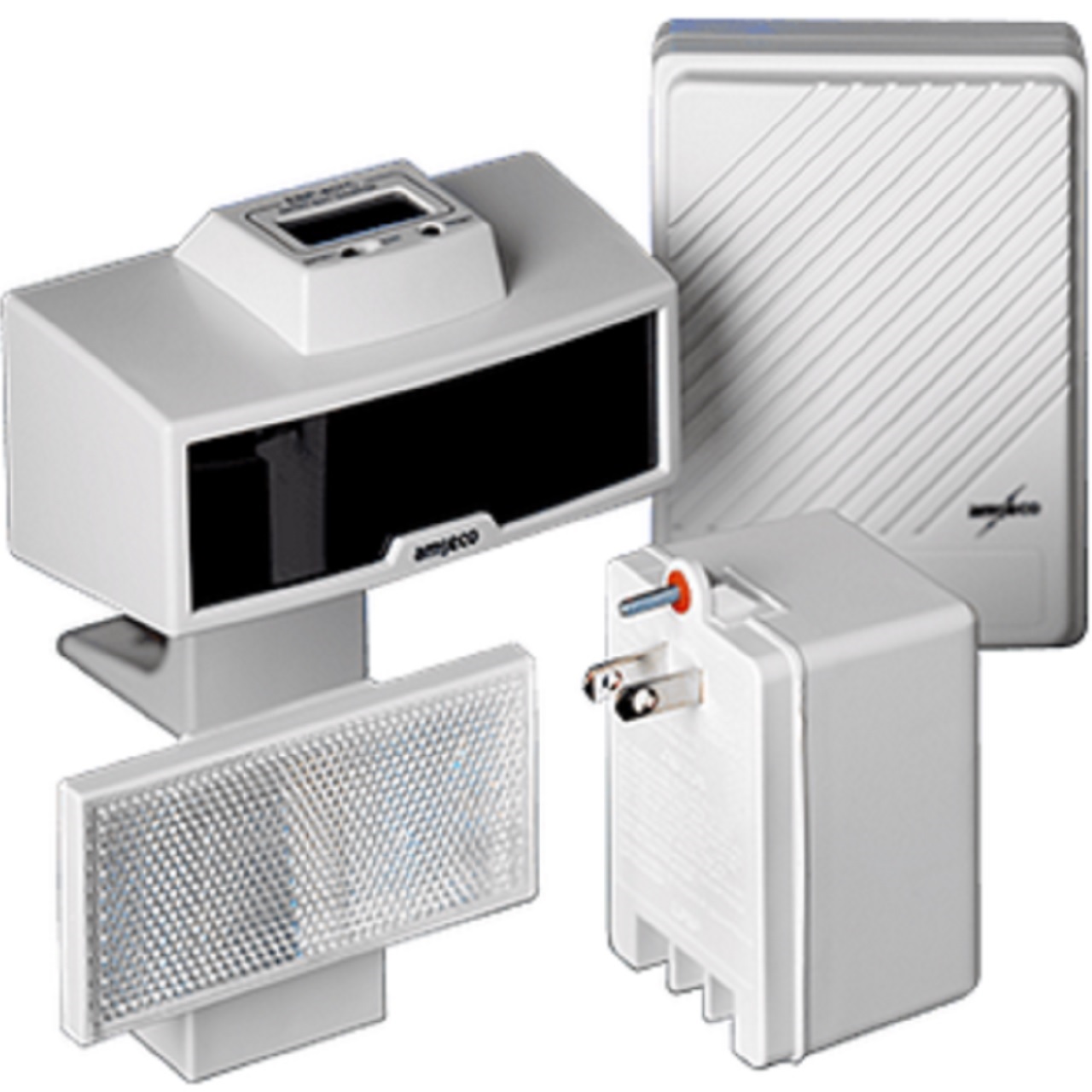

Complete Kit Includes: 1 Infrared beam sensor with dual counters, 1 Electonic chime with volume chime, 1 Reflector, 1 Power transformer (XF-1220 UL/CSA approved), 1 Long plastic bracket, 1 Metal short bracket, 2 Short plastic brackets, 1 6 ft. power cord with in-line switch, 1 26 ft. 4-conductor chime wire (AWG #24), 2 Screws for mounting chime, 4 Screws for securing mounting brackets, 1 3/8” bolt with locking washer to secure infrared beam sensor

Specifications

• Model - EBP-407
• Description - Infrared Transceiver
• Detection Method - Active Infrared
• Detection Range - 10 ft. JP2 = ON 20 ft. JP2 = OFF (f.s.)
• Entry Detection Mode - SW1 Selective right or left entry (f.s.:left)
• Blocked Infrared Beam Warning - JP1 Selective 10 sec/60 sec/OFF (f.s.: 10 sec)
• Light Source - Infrared Pulse Beam 950nm
• Terminal (-) - Ground Output
• Terminal (+) - 12V DC 1A Output
• Terminal (OC) - Exit Output (-) TR Output 1A
• Terminal (IC) - Entry Output (-) TR Ouput 1A
• Power Consumption (Standby) - 80mA (AC)
• Power Consumption (In Activation) - 1 Amp (AC)
• Power Input - 12V AC/20 VA
• Installation - Indoor
• Operating Temperature Range - 14 - 140°F (-10 - 60°C)
