4130003 Potter EWP-202C Wireless Annunciator System - Kit

Features

• Advanced dual-infrared beam and superior wireless technology
• Wireless multi-function receiver
• Dual channel receiver with status LED’s
• 20 ft. detection range across doorway
• Independent entry/exit counters
• 200 ft. wireless RF transmission in open field
• 2 selective chime sounds per channel
• Chime volume control
• Resettable 6-digit counter (up to 999999)
• Power failure memory back-up
• Wireless push-button included
• 16 million I.D. codes system

Description

The EWP-202C is a two channel wireless annunciator system designed with a superior dual counter and active infrared technology. It delivers a pleasant chime along with a recorded count. It emits a continuous, invisible dual beam across the doorway to the reflector. When either beam is interrupted, it announces the entrance or exit of customers with a pleasant, distinguishable chime sound. Each event is counted, recorded, and registered by the built-in digital counter and can be viewed and compared later in both modes. The annunciator is also equipped with an alert mode that sounds the built-in siren when triggered, adding additional security. This is ideal for malls, office buildings, liquor stores, warehouses, parking structures, medical offices, and more.

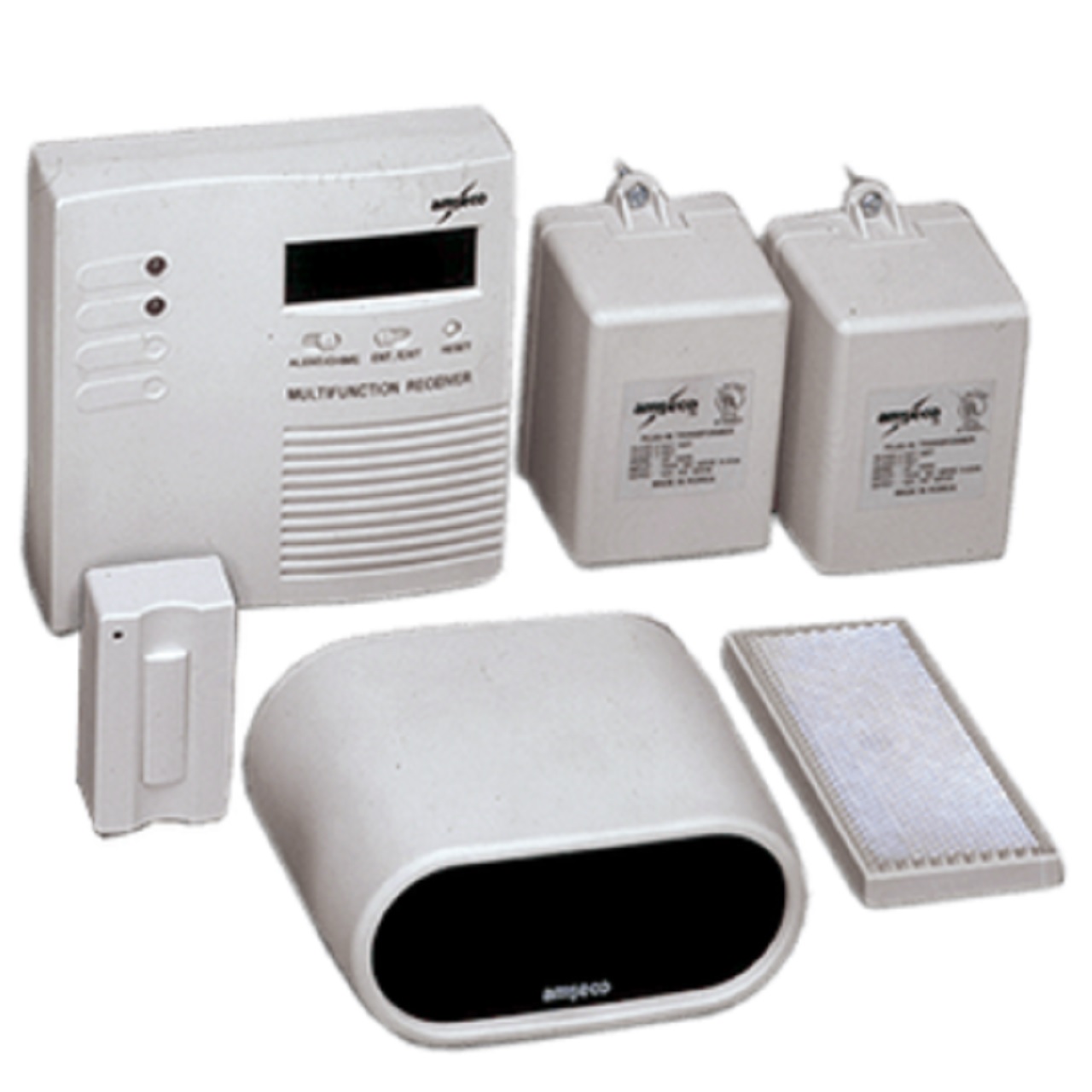

Complete Kit Includes: 1 Infrared sensor/transmitter, 1 Wireless receiver with built-in chime and counter, 1 Wireless push-button, 1 Reflector, 2 Power transformers (12V AC 20VA), 1 Long plastic bracket, 1 Short metal bracket, 2 Short plastic brackets, 2 6 ft. power cords with in-line switch, 6 3/4” sheet metal screws, 1 1/2” bolt with locking washer, 4 1 1/4” machine screws with washer and nut, 2 1/2” sheet metal screws

4130003 Specifications PDF
