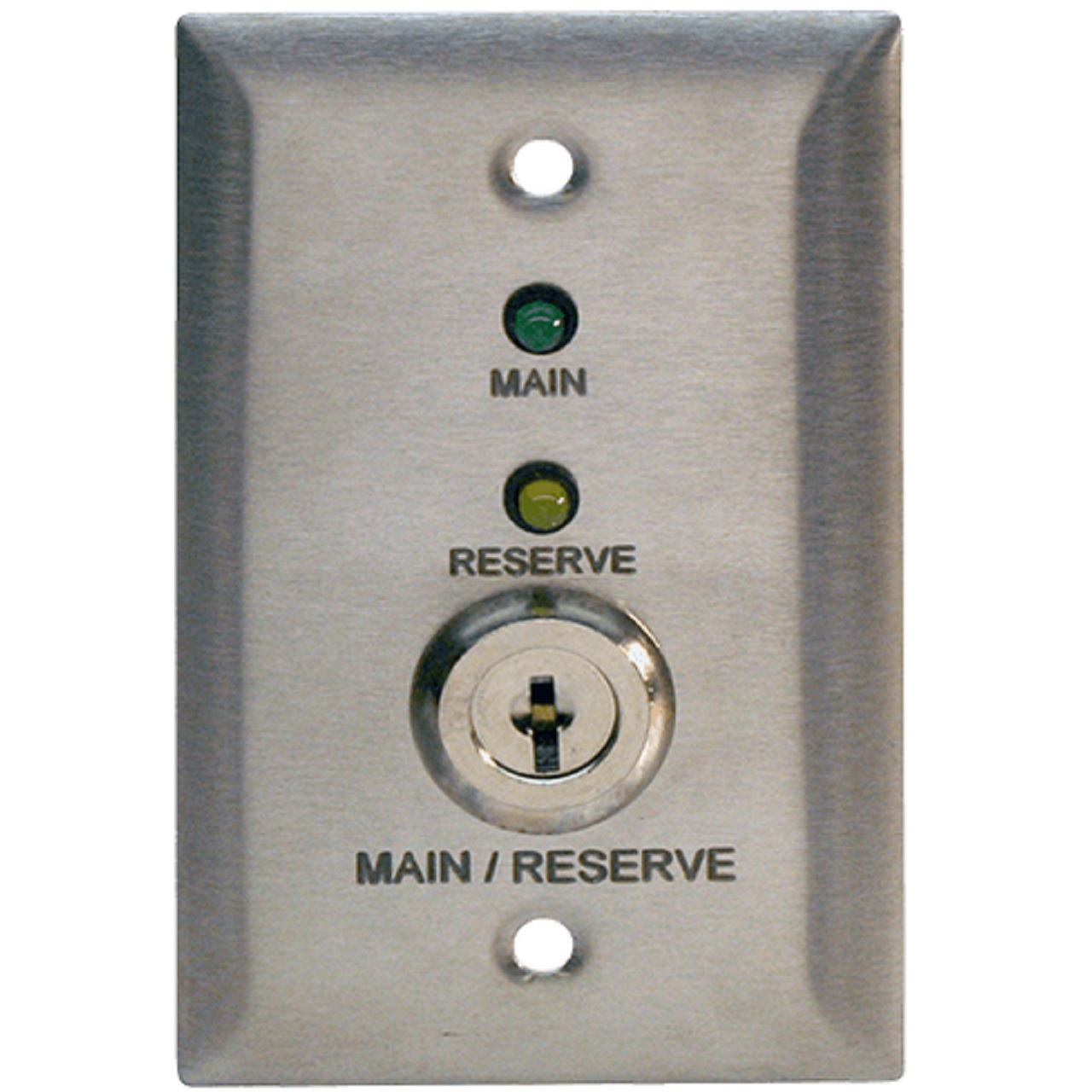

3001003 Potter MRS-MAIN Reserve Switch

Description

The device consists of a key operated DPDT switch and 1 green and 1 yellow LED. It is mounted to a stainless steel faceplate designed to mount to a single gang electrical enclosure.

Operation

With the key in the Main position, the green LED will be lit and the release circuit will be connected to the main bank of the extinguishing agent. Turning the key to the Reserve position turns off the green LED and lights the yellow LED while disconnecting the release circuit from the main bank of the extinguishing agent and connecting it to the reserve bank.

Engineering Specifications

The Main/Reserve Switch shall be capable of switching the release output of a release panel to either a primary (main) or secondary (reserve) source of extinguishing agent. The unit shall consist of a DPDT key operated switch rated for 1 Amp at 40 VDC mounted to a stainless steel faceplate with a green and yellow LED. The green LED shall be labeled Main and shall only light when the key is in the main position. The yellow LED shall be labeled Reserve and shall only light when the switch is in the reserve position. The Key shall be removable in either position. The unit shall be designed to mount on a standard single gang enclosure. The Main / Reserve Switch shall be a Potter model MRS or equivalent.

Specifications

• UL and cUL Listed
• Dimensions: - 2 3/4" W x 4-1/2" H x 2" D (Approximate) Mounts on single gang or handy box
• Contact Rating: - 1 AMP @ 40 VDC
• Power Requirements - 24 VDC, 10mA
• Environmental Specifications: - Indoor use only Temperature range -22°F to140°F (-30°C to 60°C)
