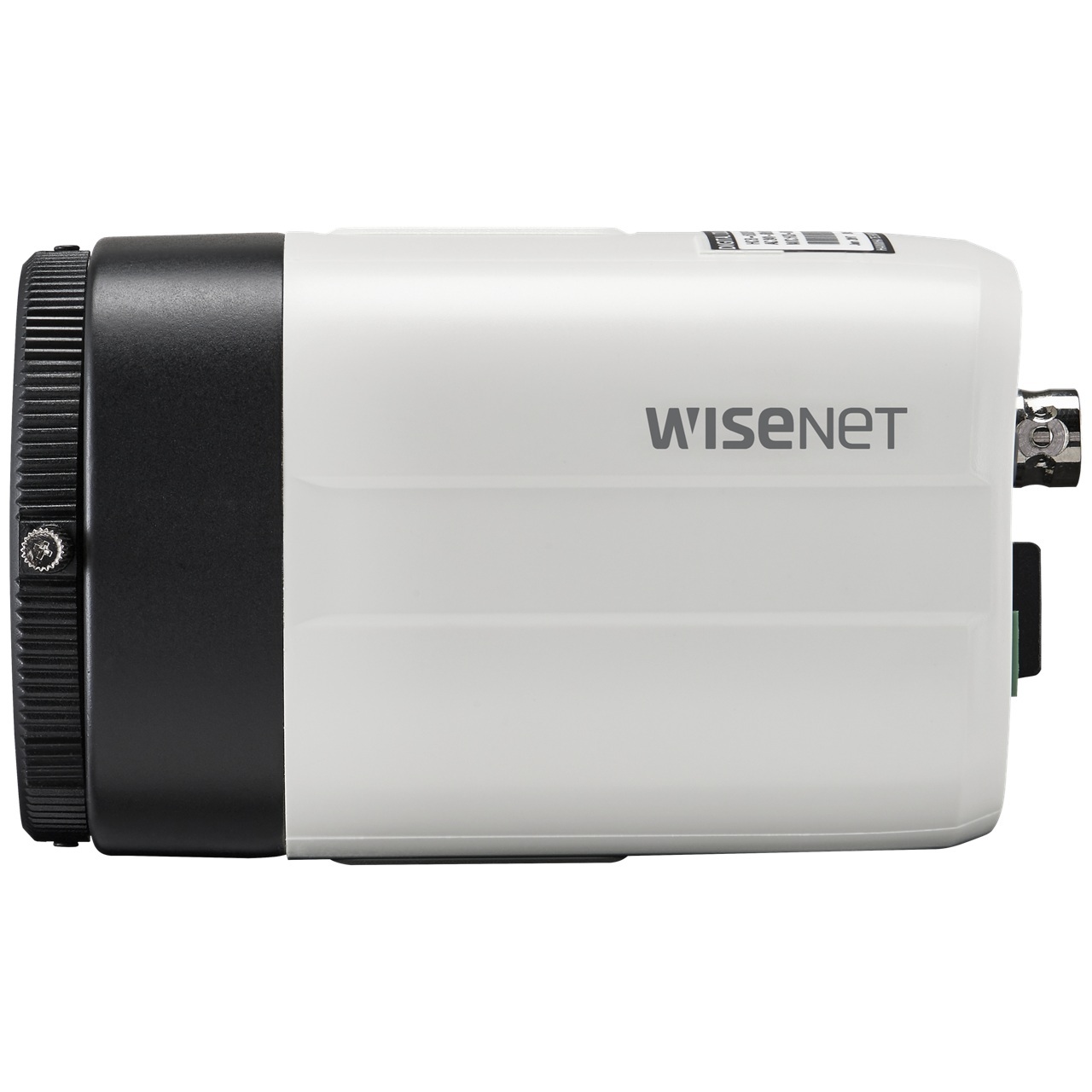

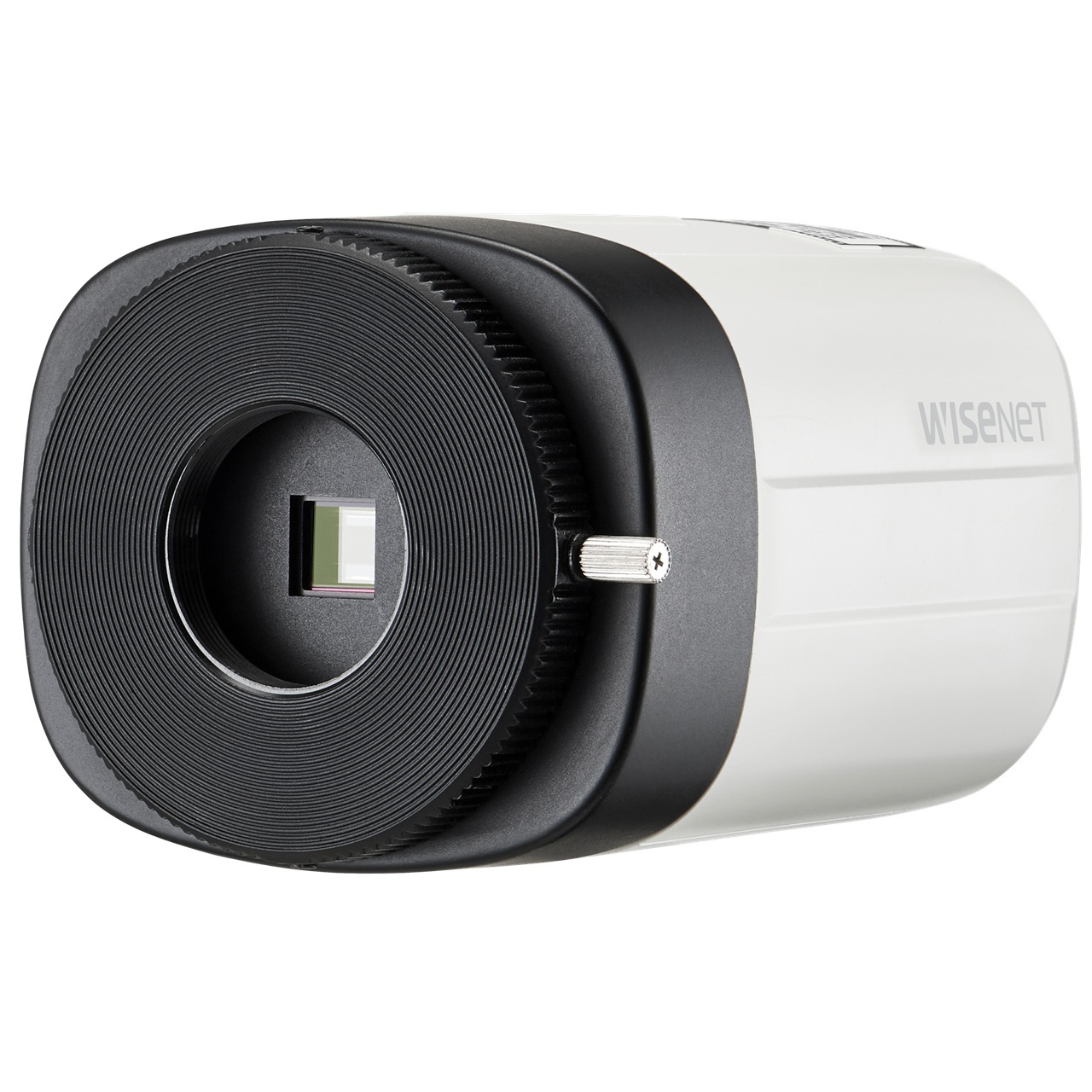

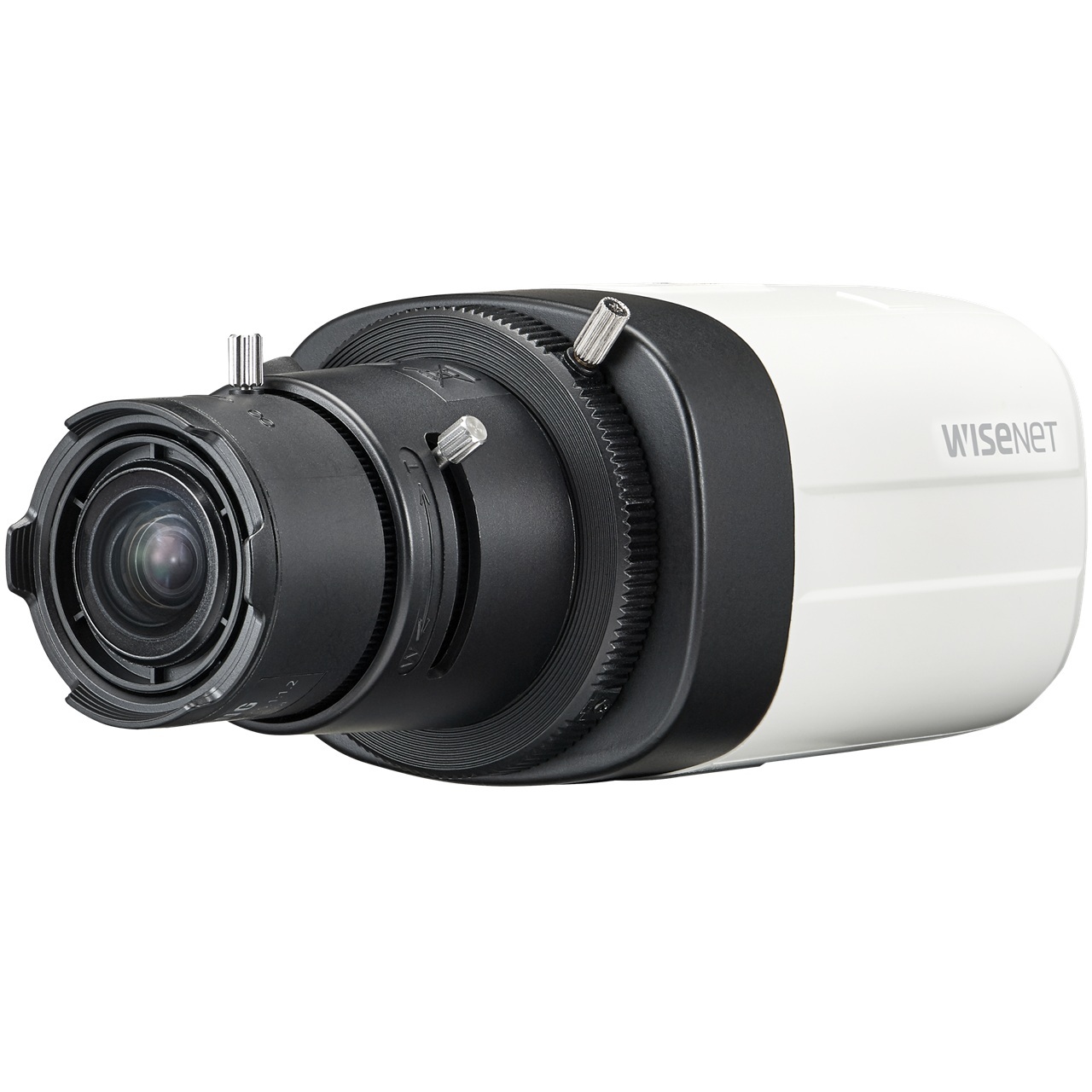

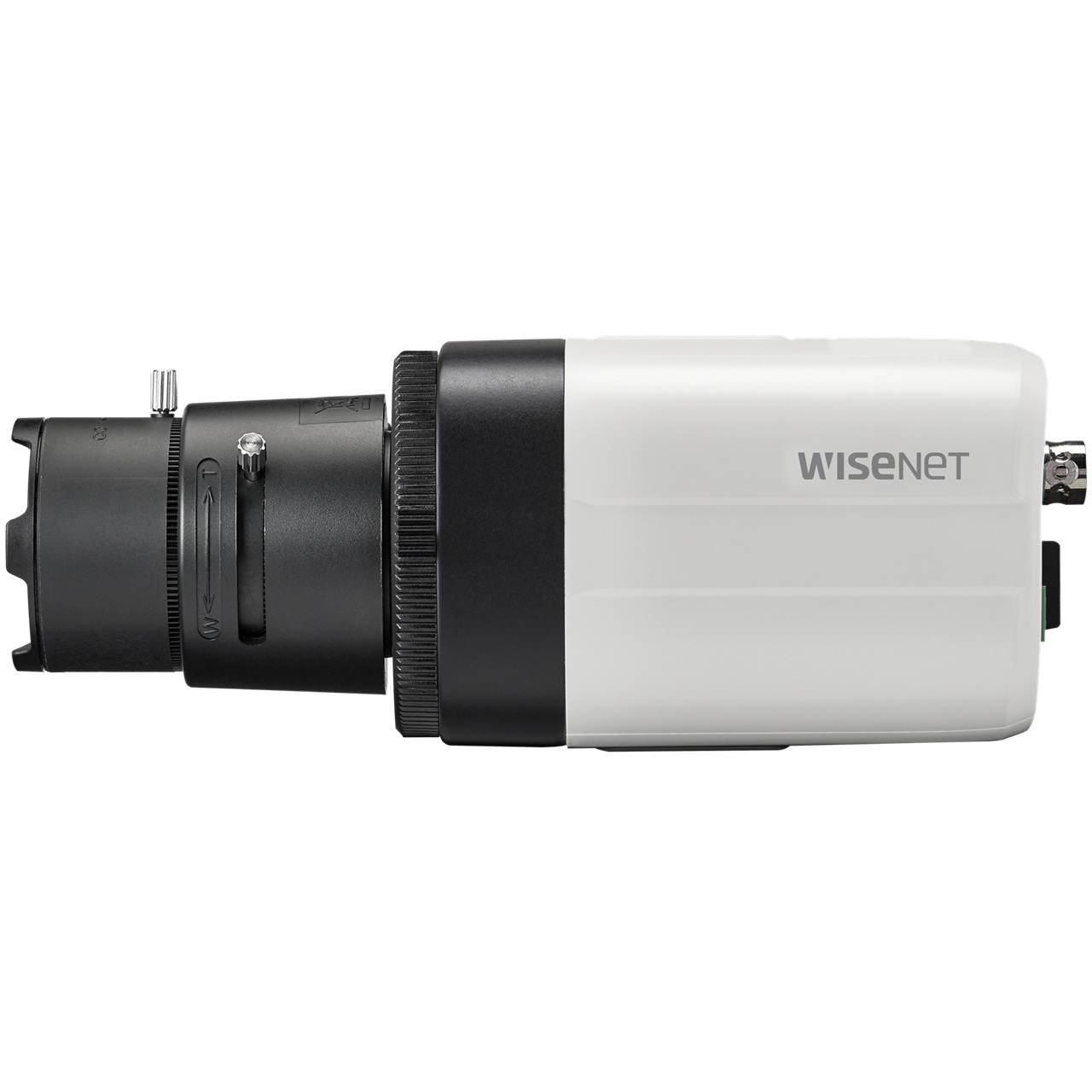

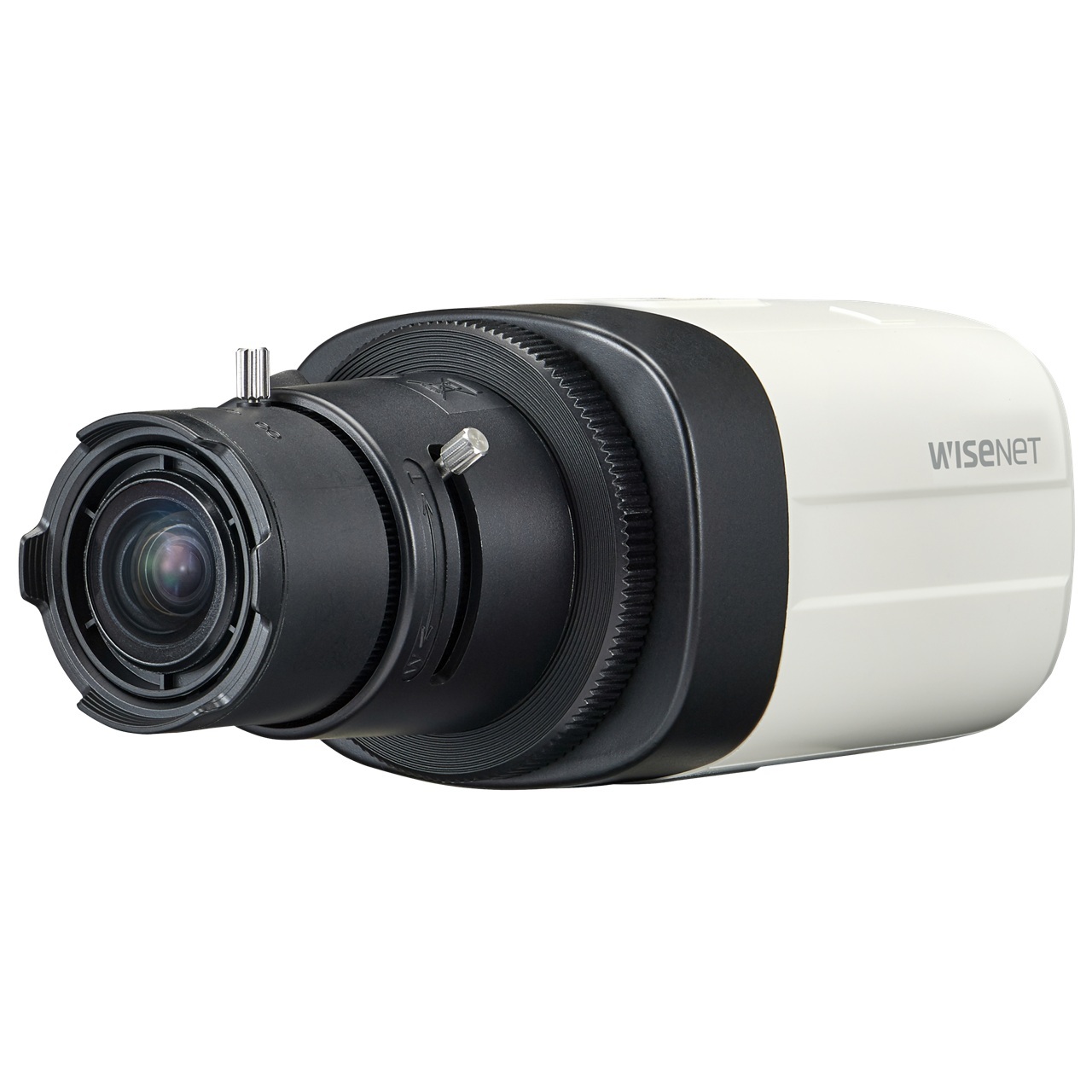

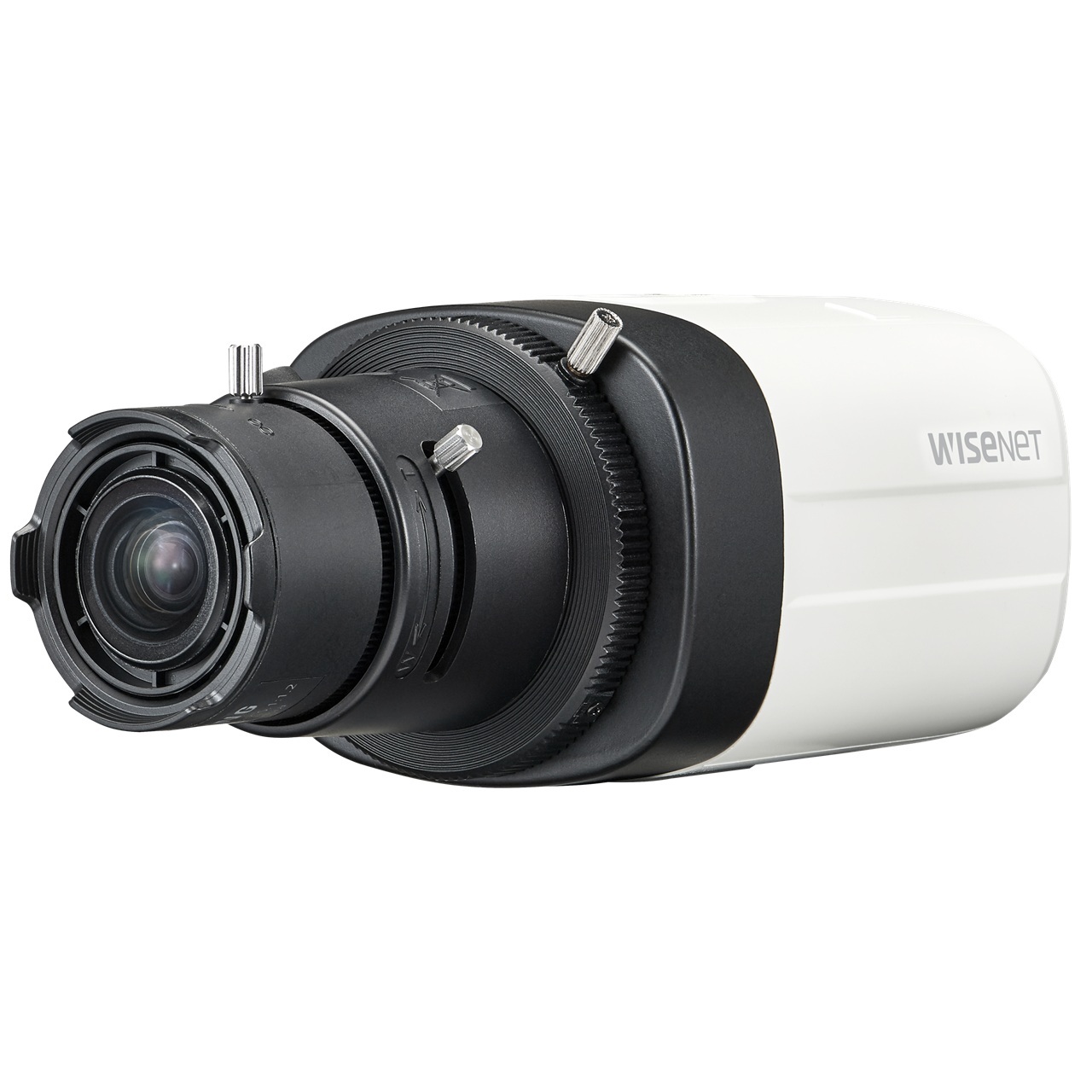

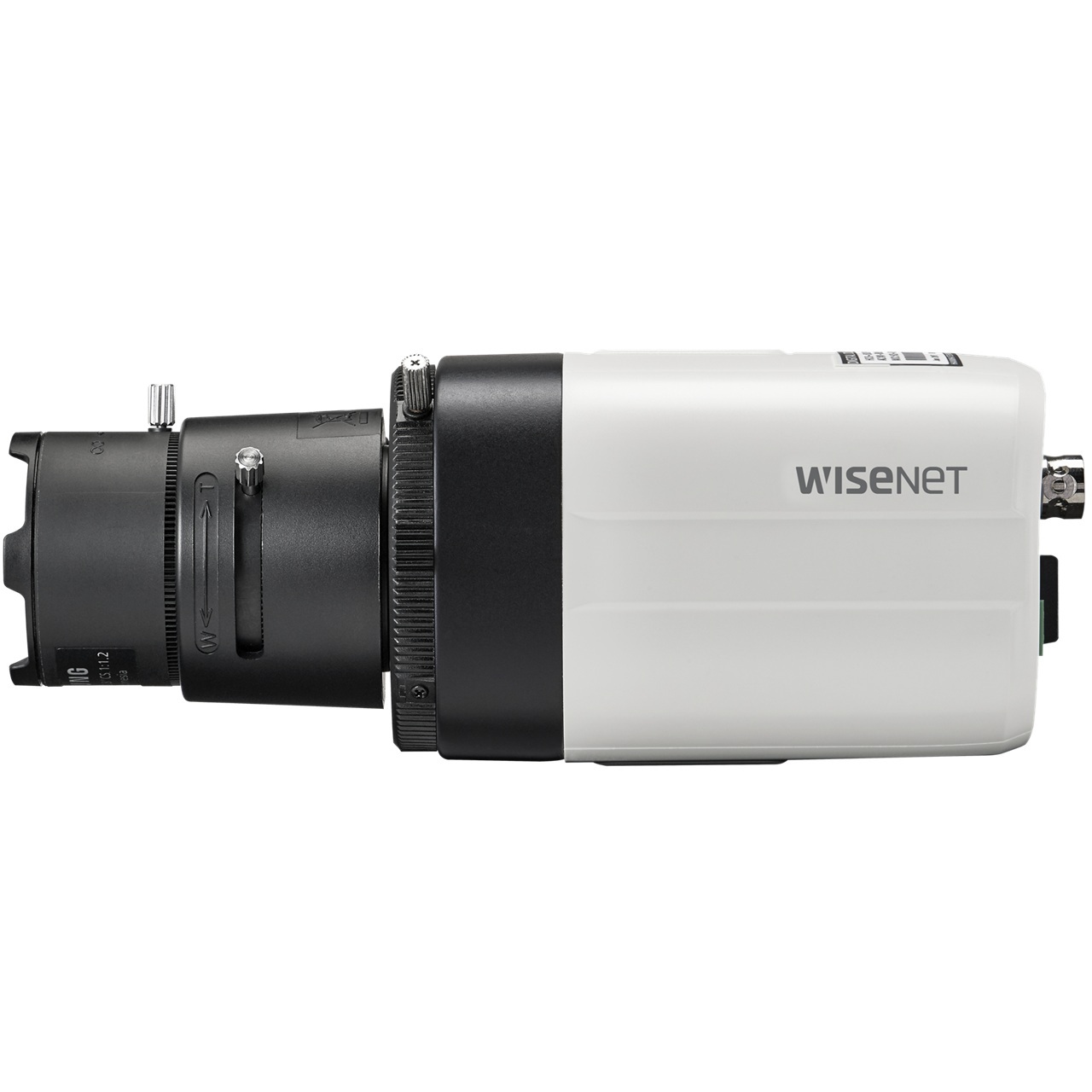

HCB-6000 Hanwha Vision 30FPS @ 2MP Indoor Day/Night WDR Box HD-TVI/HD-CVI/AHD/Analog Security Camera 12VDC - No Lens

Specifications

Video

• Imaging Device - 1/2.8" CMOS
• Resolution - 1920x1080
• Max. Framerate(NTSC/PAL) - 30fps/25fps
• Min. Illumination - Color(1/30sec, 30IRE) 0.09 BW: (1/30sec, 30IRE) 0.009
• Video Out - BNC: AHD/TVI/CVI/CVBS Selectable
• Video Transmission Distance - 500m(5C2V Coaxial Cable), 300m(5C2V Coaxial Cable)

Lens

• Focal Control - Manual
• Lens Type - DC auto iris(IR corrected)
• Mount Type - C mount, CS mount

Operational

• Day & Night - Auto(ICR)
• Backlight Compensation - BLC, HLC, WDR
• Wide Dynamic Range (dB) - 120
• Digital Noise Reduction - SSNRâ…£
• Defog - Support
• Motion Detection - 4 ea
• Privacy Masking - 8ea
• Shape - Rectangular zones
• Gain Control - Low / Middle / High / Very High
• White Balance - ATW / AWC / Manual / Indoor / Outdoor
• Electronic Shutter Speed Range - 1~1/12,000sec
• Video Rotation - Flip, Mirror

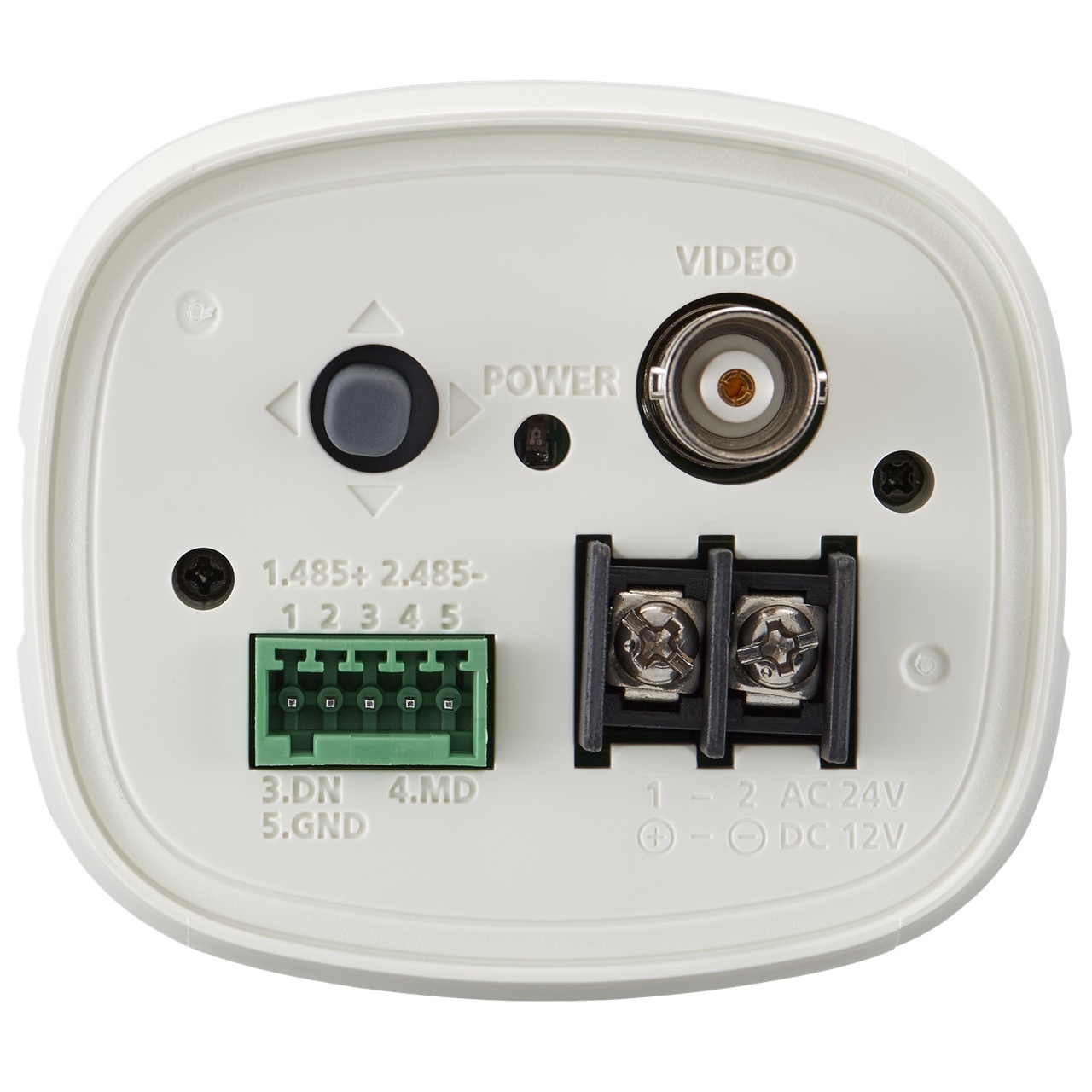

• Serial Interface - RS-485
• Alarm Interface In/Out - Output 1ea
• Alarm Interface Others - External D/N
• Alarm Triggers - Analytics
• Alarm Events When Alarm Trigger Occurred - Alarm output
• Coaxial Protocol - ACP, TCP, CCP, CVBS

Analytics

• Analytics Events - Normal Motion detection

Environmental & Electrical

• Operating Temperature/Humidity - -10°C~+55°C(+14°F~+131°F)/ 0~90% RH(non-condensing)
• Input Voltage - 24VAC, 12VDC
• Power Consumption - 12VDC Max 3.5W, 24VAC Max 3.5W

Mechanical

• Color/Material - Ivory / Black
• Material - Aluminum, PC(Polycarbonate)
• Product Dimensions - 68.4(W)×59.6(H)×92.7(D)mm(2.69×2.35×3.65")
• Product Weight - 186g(0.41lb)

HCB-6000 Specifications PDF
