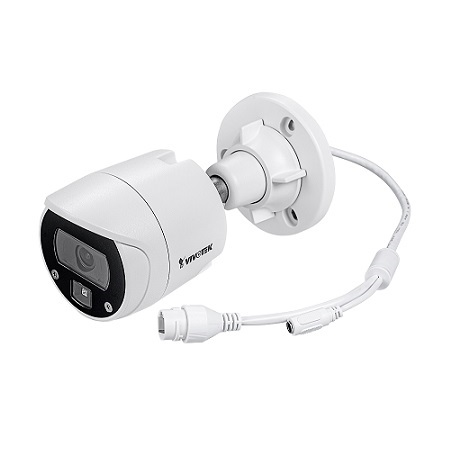

IB9369-F3 Vivotek 3.6mm 30FPS @ 1080p Outdoor IR Day/Night WDR Bullet IP Security Camera 12VDC/PoE

Specifications

System Information

• Model - IB9369 (3.6mm)
• CPU - Multimedia SoC (System-on-Chip)
• Flash - 256 MB
• RAM - 256 MB

Camera Features

• Image Sensor - 1/3.1" Progressive CMOS
• Max. Resolution - 1920x1080 (2MP)
• Lens Type - Fixed-focal
• Focal Length - IB9369(3.6mm): f = 3.6 mm
• Aperture - IB9369(3.6mm): F2.2
• Iris Type - Fixed iris
• Field of View - IB9369(3.6mm): 90™ (Horizontal),49™ (Vertical),106™ (Diagonal)
• Shutter Time - 1/5 sec. to 1/32,000 sec
• WDR Technology - WDR Enhanced
• Day/Night - Yes
• Removable IR-cut Filter - Yes
• IR Illuminators - Built-in IR illuminators, ef f ective up to 30 meters with Smart IR, IR LED*1
• Minimum Illumination - IB9369(3.6mm): 0.1 lux @ F2.2 (Color)<0.005 lux @ F2.2 (B/W), 0 lux with IR illumination on
• Tilt Range - 90™
• Rotation Range - 180™
• Pan/Tilt/Zoom Functionalities - ePTZ: 18x digital zoom (4x on IE plug-in, 4.5x built-in)
• Storage - Seamless Recording to MicroSD/SDHC/SDXC card and recording to network-attached storage (NAS)

Video

• Video Compression - H.265, H.264, MJPEG
• Maximum Frame Rate - 30 f ps @ 1920x1080
• Maximum Streams - 2 video streams (Up to 7 configurable profiles)
• S/N Ratio - 59 dB
• Dynamic Range - WDR Support
• Video Streaming - Adjustable resolution, quality and bit rate control, Smart Stream III
• Image Settings - General settings: video title and time stamp overlay, video orientation (f lip, mirror, rotation), day/night settings; Illuminators: illuminators, anti-over exposure; Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gammacurve), def og, 3DNR; Exposure: BLC, HLC, exposure control (exposure level, exposure time, gain control), AE speed adjustment, WDR; Privacy mask; Scheduled prof ile settings; Pixel calculator

Network

• Users - Live viewing f or up to 10 clients
• Security - Access list, digest authentication, HTTPS, IEEE 802.1x, password protection, signedf irmware, user access log, user account management
• Protocols - 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3,IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP
• Interface - 10 Base-T/100 Base-TX Ethernet (RJ-45), *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant withthe 3P/ETL standard
• ONVIF - Profile G, S, T supported, specification available at www.onvif .org

Solution Integration

• Smart Motion Detection - Five-window video motion detection, people detection, time filter
• VADP Package - Smart Motion Detection

Alarm and Event

• Event Trigger - Camera tampering detection, Manual trigger,Motion detection, Periodical trigger, Recording notification, SD card life expectancy, System boot
• Event Action - Event notification via email, HTTP, FTP, SFTP, NAS server, SD card, push notificationFile upload via email, HTTP, FTP, SFTP, NAS server, SD card

General

• Connectors - RJ-45 cable connector for 10/100Mbps Network/PoE connection
• LED Indicator - System power and status indicator
• Power Input - IEEE 802.3af Class 0 PoE, DC 12V, (Simultaneous Power Redundancy Supported)
• Power Consumption - PoE:Max. 6.49W/4W (IR on/off), DC 12V: Max. 5.1W/3.4W (IR on/off)
• Dimensions - ™ 91.1 x 181.5 mm
• Weight - 671 g
• Certifications - EMC: CE (EN55032 Class A,EN55035), FCC (FCC Part 15 Subpart B Class A), ICES-003, issue 7,RCM (AS/NZS CISPR 32 Class A), VCCI (VCCI-CISPR 32 Class A); Safety: UL UL62368-1), CB (IEC/EN 62368-1, IEC/EN 62471,IEC/EN 60950-22); IA: BIS (IS13252):BSMI;Environment: IK10 (IEC 62262), IP66 (IEC 60529)
• Operating Temperature - Starting Temperature: -30™C ~ 50™C (-22™F ~ 122™F), Working Temperature:-30™C ~ 55™C (-22™F ~ 131™F) (IR off ), -30™C ~ 50™C (-22™F ~ 122™F) (IR on)
• Humidity - 95% RH (non-condensing)
• Warranty - 36 months

System Requirements

• Operating System - Microsoft Windows 10/8/, 7Mac 10.12 (Chrome only)
• Web Browser - Chrome 58.0 or above, Internet Explorer 10/11
• Other Players - VLC: 1.1.11 or above

Included Accessories

• Packing Contents - Quick installation guide, alignment sticker, screw pack, cable gland
