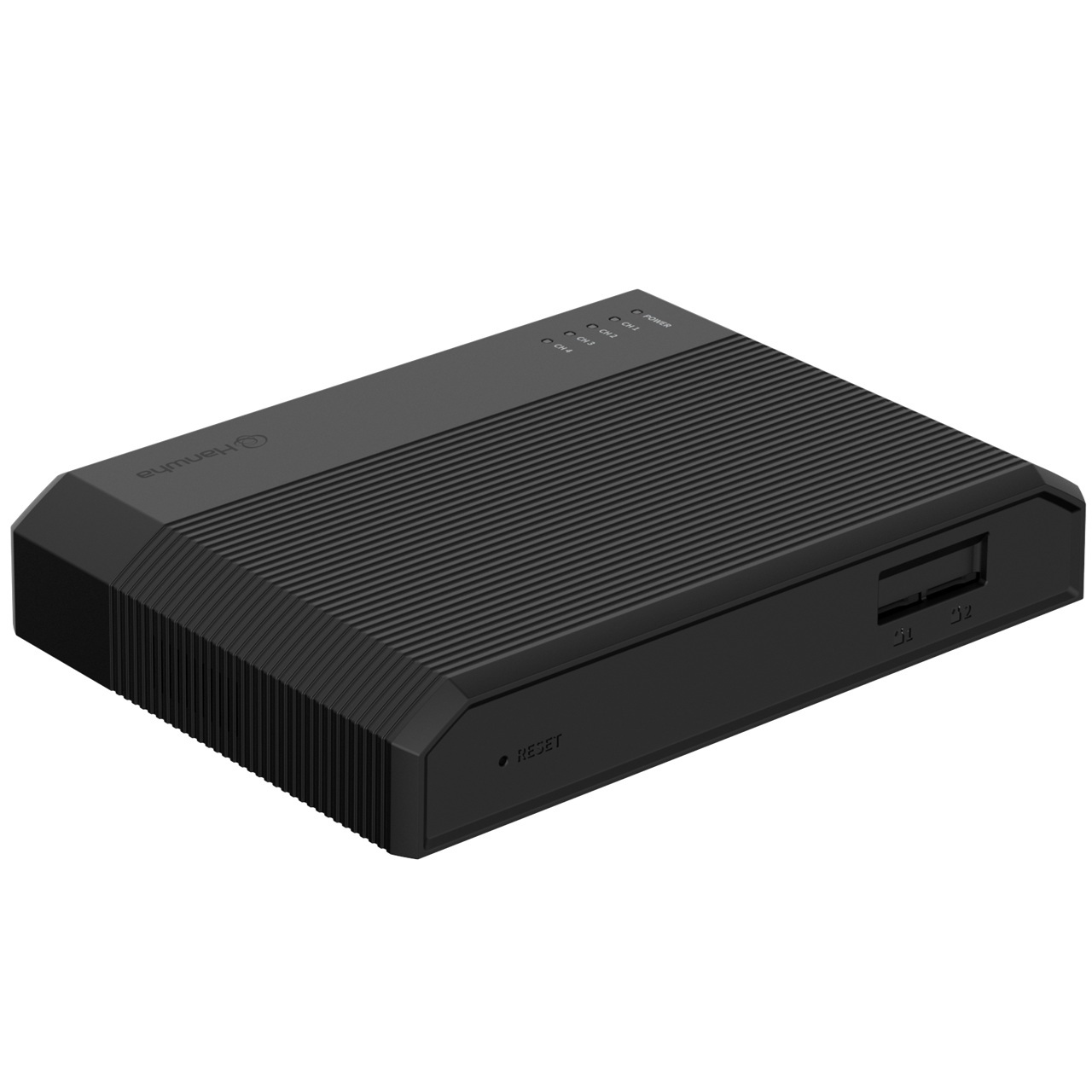

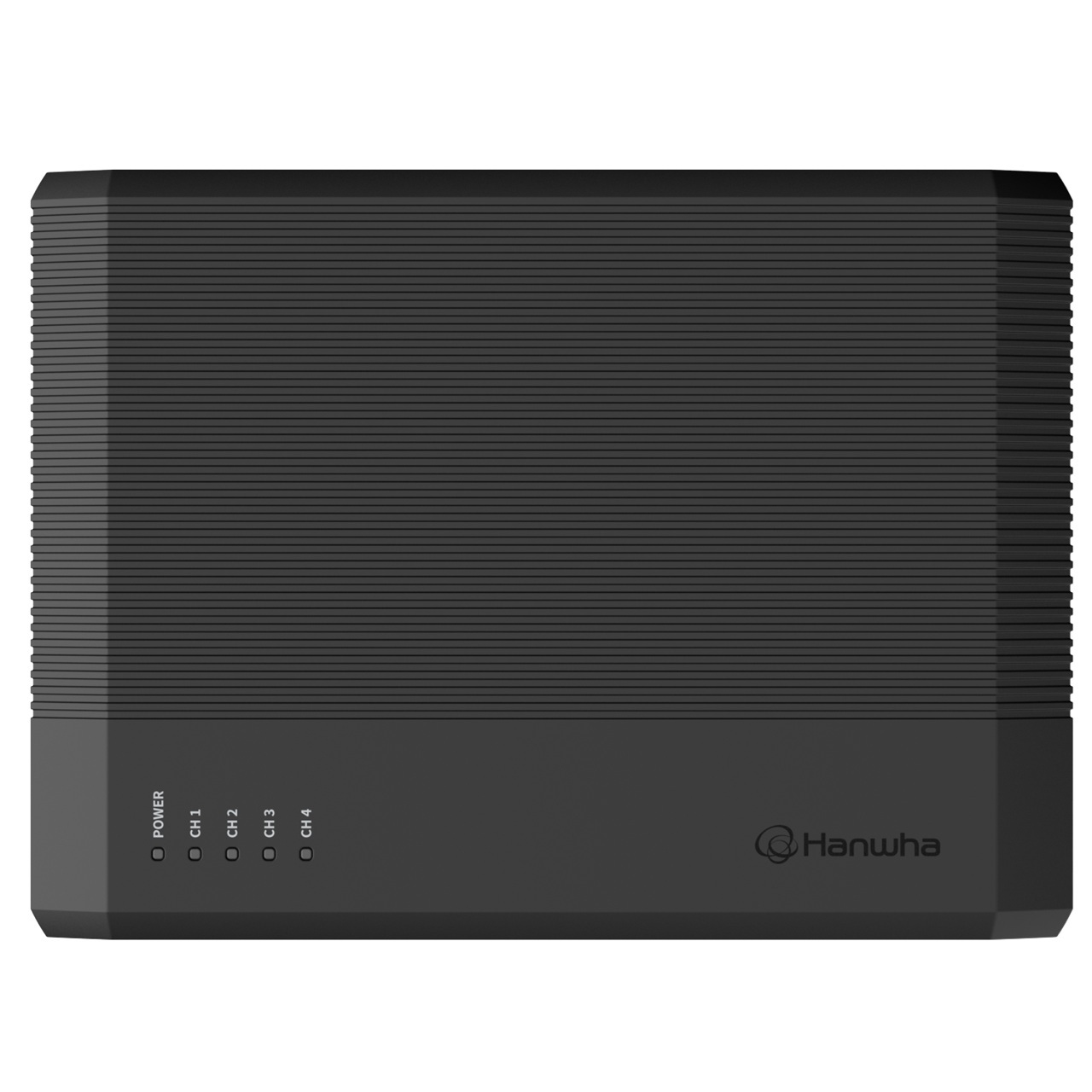

PNM-C20000QB Hanwha Vision P Series 30FPS @ 2MP Indoor Day/Night WDR AI Remote Head IP Security 4CH Camera 12VDC/POE - No Lens

Introduction

One device. Total coverage.

The Hanwha Vision AI Remote-head Camera features a single body design with support for up to 4 channels, offering comprehensive coverage for a wide range of applications.

Specifications

Video

• Resolution - 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360
• Max. Framerate - H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60HZ/50Hz)
• Video Out - USB: Micro USB Type C for installation HDMI(1920x1080, Single/Quad view)

Lens

• Optional Lens - SLA-T1080FA, SLA-T2480A, SLA-T2480VA, SLA-T4680A, SLA-T4680VA, SLA-T4680DA, SLA-T4680DSA, SLA-T2880BA

Operational

• Camera Title - Displayed up to 85 characters
• Day & Night - Auto (Electrical)
• Backlight Compensation - BLC, WDR, SSDR
• Wide Dynamic Range - 120dB
• Digital Noise Reduction - SSNRâ…¤, WiseNRâ…¡(Based on AI engine)
• Digital Image Stabilization - Support
• Defog - Support
• Motion Detection - 8ea, 8point Polygonal zones
• Privacy Masking - 16ea, 4point quadrangle zones - Color: gray/green/red/blue/black/white
• Gain Control - Low / Middle / High
• White Balance - ATW / AWC / Manual / Indoor / Outdoor
• LDC - Support
• Electronic Shutter Speed - Minimum / Maximum / Anti flicker(2~1/12,000sec) Prefer shutter control(Based on AI engine)
• Video Rotation - Flip, mirror, hallway view(90°/270°) - Each channel separately
• Analytics - Classified object type: Person/Face/Vehicle(Type: car/bus/truck/motorcycle/bicycle)/License plate Attributes: Person(Clothing top/bottom color), Vehicle(Type: car/bus/truck/motorcycle/bicycle, Color) Support BestShot Analytics events based on AI engine - Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit/Appear/Disappear) Analytics events - Motion detection, Defocus detection, Tampering, Shock detection, Audio detection
• Business Intelligence - Based on AI engine: People/Vehicle counting

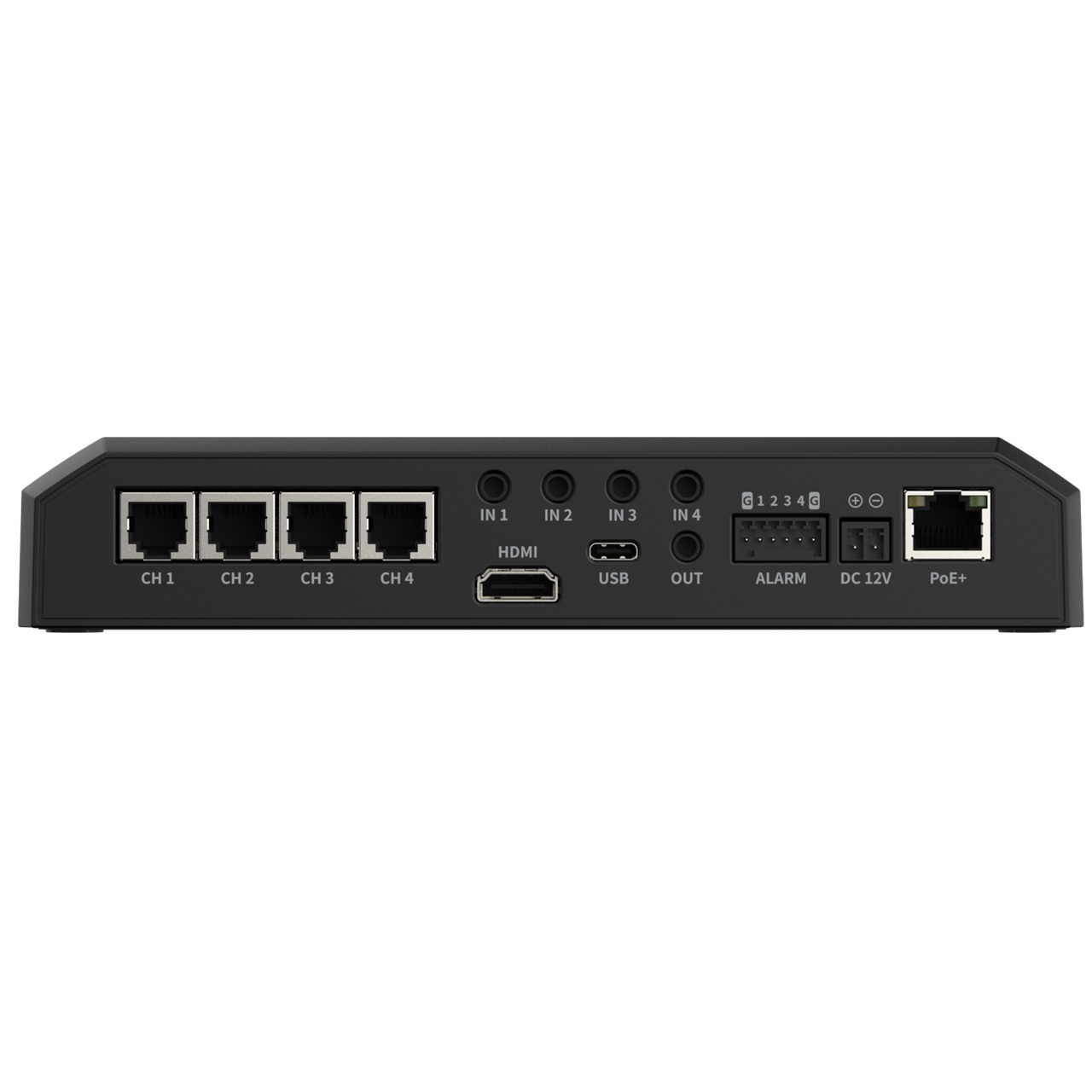

• Alarm I/O - 4 configurable I/O ports
• Alarm Triggers - Analytics, Network disconnection, Alarm input, App event, Time schedule, MQTT subscription
• Alarm Events - When alarm trigger occurred - File upload(image): e-mail/FTP - Notification: e-mail - Recording: SD/SDHC/SDXC or NAS recording at event triggers - Alarm output - Handover: PTZ preset, send message by HTTP/HTTPS/TCP - Audio clip playback - MQTT: publication
• Audio In - 4 x Selectable(mic in/line in)
• Audio Out - Line out

Network

• Ethernet - Metal shielded RJ-45(10/100/1000BASE-T)
• Video Compression - H.265/H.264: Main/Baseline/High, MJPEG
• Audio Compression - G.711(PCM): 8kHz(64Kbps) G.726(ADPCM): 8kHz(16/24/32/40Kbps) AAC-LC: 16kHz(48Kbps)
• Smart Codec - WiseStream(Based on AI engine)
• Bitrate Control - H.264/H.265: CBR or VBR MJPEG: VBR
• Streaming - Unicast(20 users) / Multicast Multiple streaming(Up to 4 profiles per channel)
• Protocol - IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP/SFTP, SMTP(StartTLS), ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP(TCP, UDP Unicast), CDP, MQTT
• Application Programming Interface - ONVIF Profile S/G/T/M SUNAPI(HTTP API) Hanwha Vision Open Platform

Security

• OS / Firmware Protect - Encrypted Firmware, Secure boot, Signed Firmware
• User authentication - Digest Authenticaton
• Network authentication - 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2)
• Secure Communication - HTTPS, SRTP, WSS(Websocket secure)
• Access Control - IP-based access control
• Data Protect - Encryption Credentials, Encrypt compress for live recording file export
• Audit - Access / System / Event Log management
• Device ID - Device certificate(Hanwha Vision Root CA)
• Secure Storage - Secure element, SDcard partition encrypt
• Security Certificate - Secure element(FIPS 140-3 level3, CC EAL6+)

General

• Webpage Language - English, Korean, Simplified Chinese, Traditional Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
• Edge Storage - Micro SD/SDHC/SDXC 2slot 2TB(1TBx2)
• Memory - 8GB RAM, 8GB eMMC

Environmental & Electrical

• Operating Temperature / Humidity - -10°C~+45°C(14°F~+113°F) / 0~95% RH(Non-condensing)
• Storage Temperature / Humidity - -50°C~+60°C(-58°F~+140°F) / 0~90% RH
• Input Voltage - PoE+(IEEE802.3at, Class4), 12VDC
• Power Consumption - PoE+: Max. 25.5W, Typical 23.8W 12VDC: Max 23.1W, Typical 21.5W

Mechanical

• Color / Material - Black / Plastic
• RAL Code - RAL9005
• Product Dimensions / Weight - 200(W)x37(H)x146(D)mm(7.87x1.46x5.75"), 1015g(2.24lb)

Certifications & Standards

• EMC - FCC 47 CFR 15 Subpart B Class A ICES-3(A)/NMB-3(A) CE/UKCA - EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3 VCCI CISPR 32 Class A RCM AS/NZS CISPR 32 Class A KS C 9832 Class A , KS C 9835
• Safety - UL 62368-1, CAN/CSA C22.2 NO. 62368-1 IEC/EN 62471
• Environment - IEC/EN 63000

Ver

• Ver - 202412
