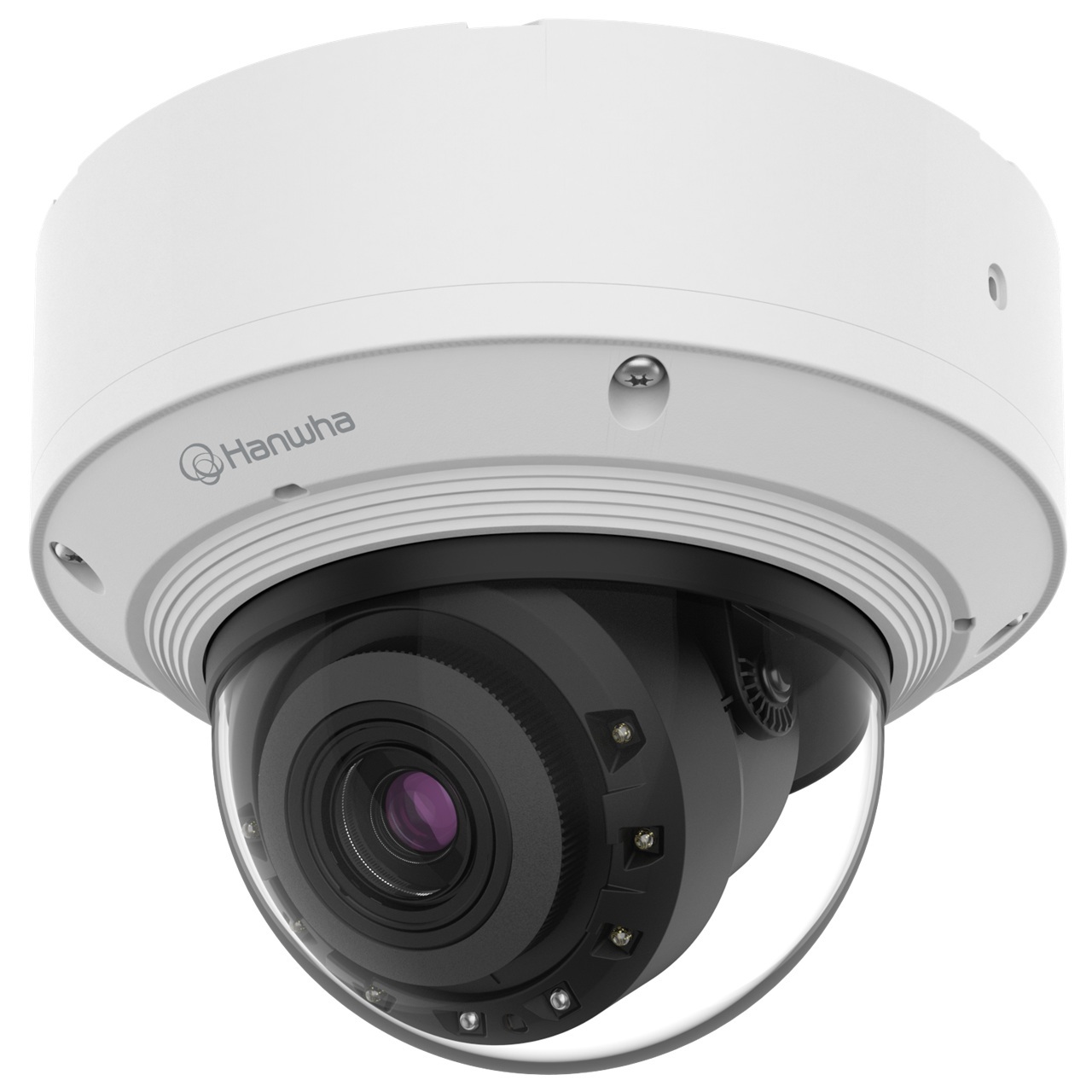

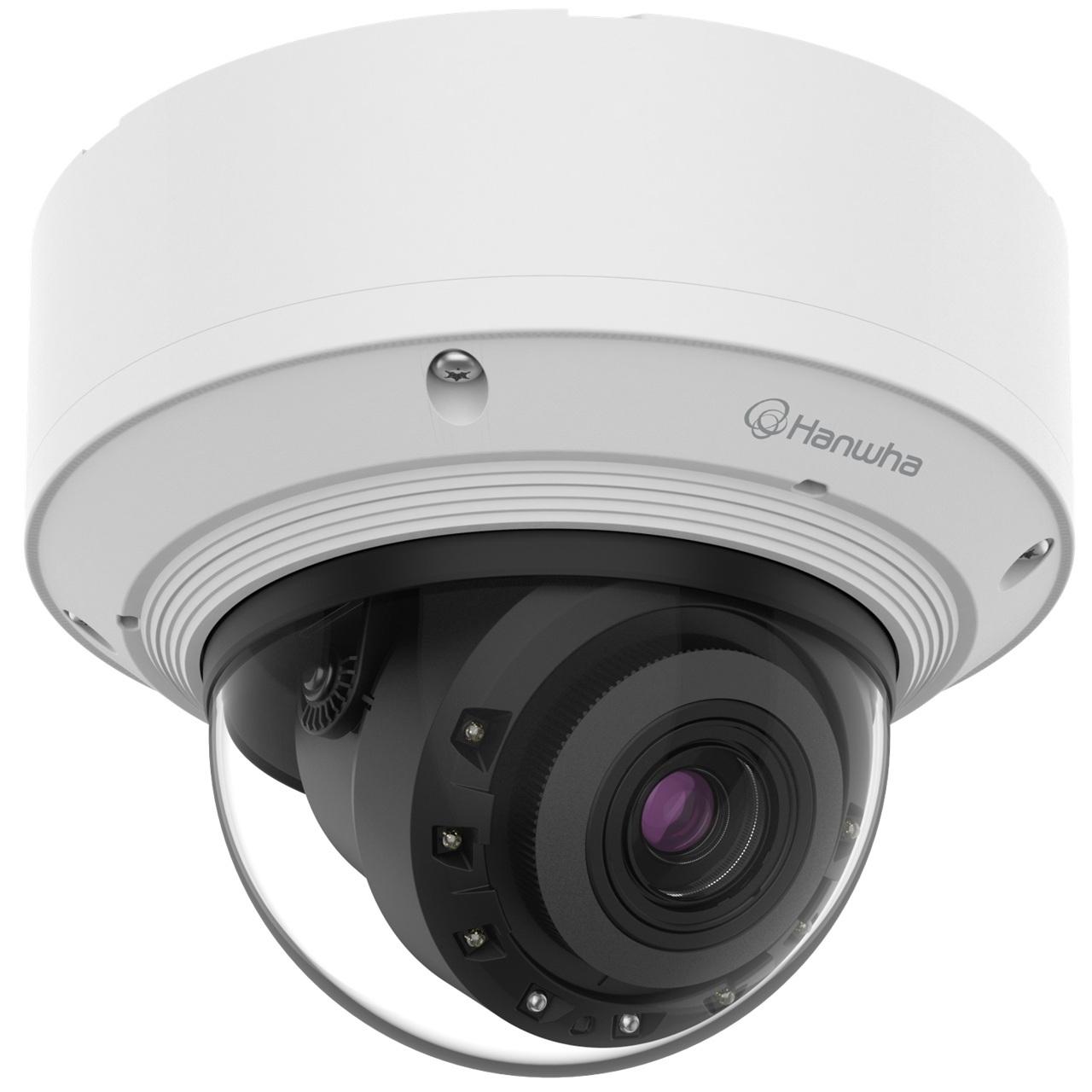

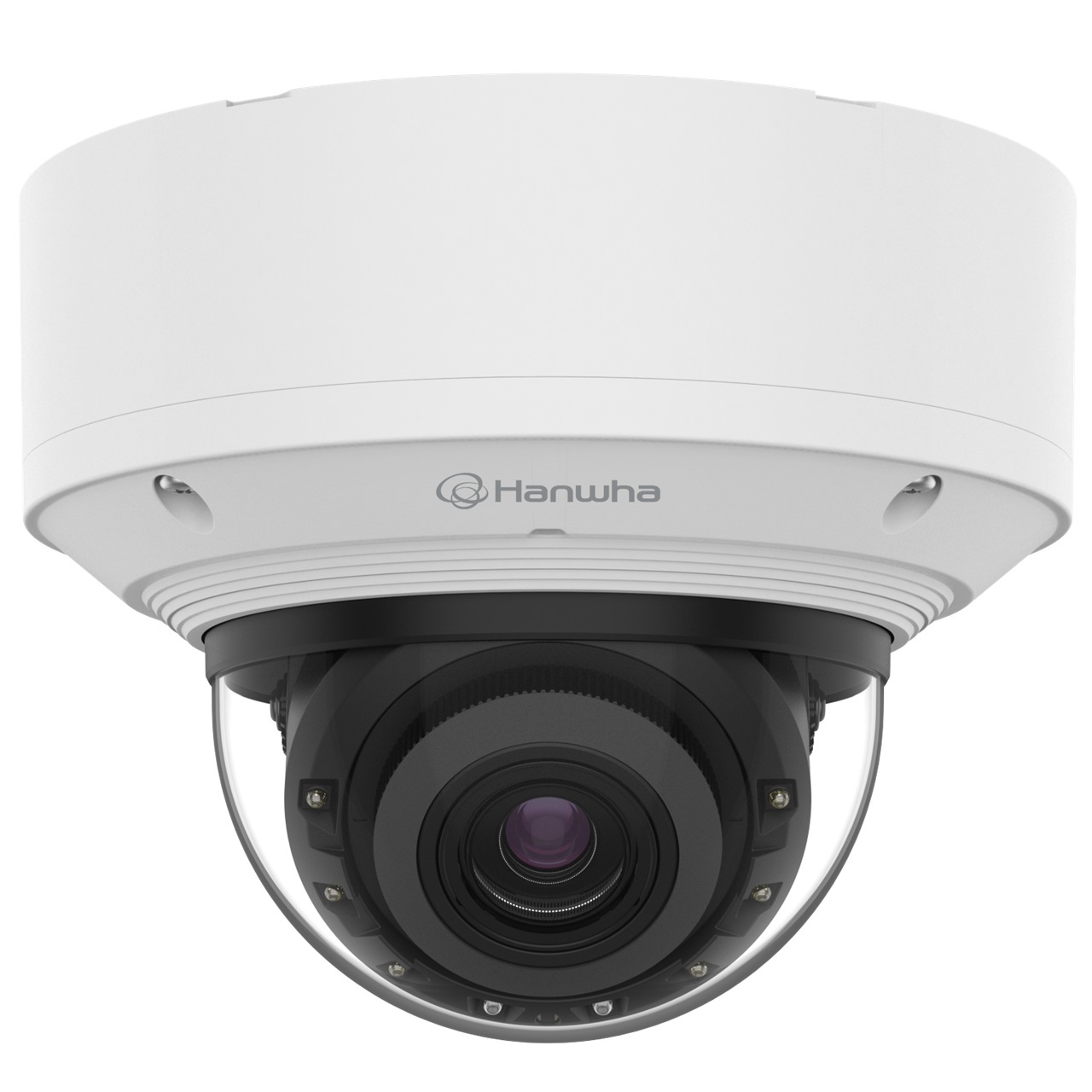

PND-A9082RV Hanwha Vision P Series 5.9-13.3mm Motorized 30FPS @ 8MP Indoor IR Day/Night WDR Vandal Dome IP Security Camera 12VDC/PoE

Introduction

Power in every pixel.

Next-gen precision. Hanwha Vision P series cameras come equipped with Wisenet 9, built with a dual NPU architecture to execute advanced AI analytics models and image optimization for exceptional performance.

Specifications

Video

• Imaging Device - 1/1.2" CMOS
• Resolution - 3840x2160, 3328x1872, 3072x1728, 2688x1512, 2592x1944, 2560x1440, 1920x1080, 1600x1200, 1280x960, 1280x720, 1024x768, 800x600, 640x480, 640x360, 320x240, 320x180
• Max. Framerate - H.265/H.264: Max. 30fps/25fps(60Hz/50Hz), MJPEG: Max. 30fps(@8MP Max. 5fps)
• Min. Illumination - Color: 1/30sec, 30IRE) 0.015, BW(1/30sec, 30IRE) 0.0015
• Video Out - USB: Micro USB Type C

Lens

• Focal Length (mm) - 5.9~13.3
• Zoom Ratio - Optical 2.25x
• Max. Aperture Ratio - 1.5(Wide)~2.9(Tele)
• Angular Field of View - H: 109°~49°, V: 59°~27°, D: 128°~56°
• Min. Object Distance - 0.8m(2.62ft)
• Focus Control - Simple focus
• Lens Type - P-iris

Pan / Tilt / Rotate

• Pan / Tilt / Rotate Range - 0~360° / 0~85° / 0~355°

Operational

• Day & Night - Auto (ICR)
• Backlight Compensation - BLC, HCL, WDR, SSDR
• Wide Dynamic Range (dB) - 120
• Digital Noise Reduction - WiseNRâ…¡(Based on AI engine), SSNRâ…¤
• Digital Image Stabilization - Support
• Defog - Support
• Motion Detection - 8ea, 8 Polygonal zones
• Privacy Masking - 32ea, 8 Polygonal zones; - Color: Gray, Green, Red, Blue, Black, White, Mosaic, Purple, Yellow
• Gain Control - Off, Max gain, Manual
• White Balance - ATW, NarrowATW, AWC, Manual, Indoor, Outdoor
• LDC - Support
• Electronic Shutter Speed - Minimum / Maximum / Anti flicker, Prefer shutter control(Based on AI engine) (2~1/30,000sec)
• Video Rotation - Flip, mirror, Hallway view(90Ëš/270Ëš)
• Alarm I/O - 2 configurable I/O ports, DC 12V output
• Alarm Triggers - Analytics, Network disconnection, Alarm input, Time schedule, MQTT subscription, Case tampering, Day/Night, Storage disruption
• Alarm Events - When alarm trigger occurred File upload(image): e-mail/FTP/SFTP, File upload (video clip); FTP/SFTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover(PTZ preset, Send message by HTTP/HTTPS/TCP), Alarm output, Audio clip playback, MQTT : Publication
• Audio In - Selectable(mic in/line in/built-in 3mic)
• Audio Out - Line out
• Light Type - IR LED
• IR Viewable Length - WiseIR 60m(196.85ft)
• IR Wavelength - 850nm

Analytics

• Classified object type: - Person/Face/Vehicle/License plate Attributes: Person Upper/Lower clothes color, Gender, Bag, Vehicle(Type: car/bus/truck/motorcycle/bicycle and Color), Face Age, Gender, Face mask, Glasses
• Thumbnail - BestShot
• Analytics Events - Based on AI engine - Object detection, Virtual line*(Crossing/Direction), Motion detection Face mask detection, Social distancing detection Slip & fall detection, Virtual area(Loitering/Intrusion/Enter/Exit/Appear/Disappear), Defocus detection, Tampering, Audio detection, Shock detection People counting, Queue management, Heatmap, Vehicle counting, Crowd counting

Network

• Ethernet - Metal shielded RJ-45(10/100/1000BASE-T)
• Video Compression - H.265/H.264: Main/Baseline/High, MJPEG
• Audio Compression - G.711(PCM): 8kHz(64kbps), G.726(ADPCM): 8kHz(16/24/32/40kbps), AAC-LC: 16kHz(48kbps), OPUS:48kHz(64kbps)
• Smart Codec - WiseStream (Based on AI engine)
• Bitrate Control - H.264/H.265: CBR or VBR MJPEG: VBR
• Streaming - Unicast(20 users) / Multicast / Multiple streaming Up to 5 profiles, 3 virtual channel support
• Protocol - IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT, Syslog
• Application Programming Interface - ONVIF S, G, T, M , Others SUNAPI(HTTP API), Hanwha Vision Open Platform
• Direct Cloud Connection - Support

Security

• OS / Firmware Protect - Encrypted Firmware, Secure boot, Signed Firmware
• User authentication - Digest Authenticaton, Prevent brute-force attack
• Network authentication - IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
• Secure Communication - HTTPS, WSS(WebSocket Secure), SRTP
• Access Control - IP-based access control, MAC-based access control, Auto logout
• Data Protect - Encryption Credentials, Encrypt compress for live recording file export
• Audit - Access / System / Event Log management
• Device ID - Device certificate(Hanwha Vision Root CA)
• Secure Storage - Secure element, SDcard partition encrypt(AES-256)
• Supply Chain Security - SBOM
• Security Certificate - Secure element(FIPS 140-3 level3, CC EAL6+) Consumer IoT Security Standard (ETSI EN 303 645)

General

• Memory - RAM 4GB, Flash 8GB
• Edge Storage - Micro SD/SDHC/SDXC Max. 1TB x 2slot(Total 2TB) *Hanwha Vision branded microSD cards have been certified and recommended for OnCloud edge recording

Environmental & Electrical

• Operating Temperature / Humidity/ Others - -25°C~+50°C(-13°F~+122°F), 0~100% RH(condensing) Humidity control with AIR vent
• Storage Temperature / Humidity - -50°C~+60°C(-58°F~+140°F) / 0~90% RH
• EPA(Effective Projected Area) -0.0148㎡
• Input Voltage - PoE+(IEEE802.3at, Class4), 12VDC
• Power Consumption - PoE+: Max 19.2W, typical 11.00W 12VDC: Max 16.5W, typical 9.5W
• Wisepower - Power monitoring
• Power Redundance Failover - Support

Mechanical

• Color / Material - White / Aluminum Hard-coated dome
• RAL Code - RAL9003
• Product Dimensions / Weight - ø160x125mm(ø6.30x4.92")/ 1550g
• Compatible Conduit hole / Gangbox - 12.7mm(1/2")(M20), Single, Double, 4" Octagon, Square

Certifications & Standards

• EMC - FCC 47 CFR 15 Subpart B Class A ICES-3(A)/NMB-3(A) CE/UKCA - EN 55032 Class A, EN 50130-4 EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A RCM AS/NZS CISPR 32 Class A KS C 9832
• Safety - UL 62368-1, CAN/CSA C22.2 NO. 62368-1 IEC 62471
• Environment - IEC/EN 63000, IEC 60529 IP52, IEC 62262 IK10, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78

DORI (EN62676-4 standard)

• Detect (25PPM/ 8PPF) - Wide: 54.8m(179.73ft) / Tele: 168.5m(552.89ft)
• Observe (63PPM/ 19PPF) - Wide: 21.9m(71.89ft) / Tele: 67.4m(221.16ft)
• Recognize (125PPM/ 38PPF) - Wide: 11.0m(35.95ft) / Tele: 33.7m(110.58ft)
• Identify (250PPM/ 76PPF) - Wide: 5.5m(17.97ft) / Tele: 16.9m(55.29ft)
