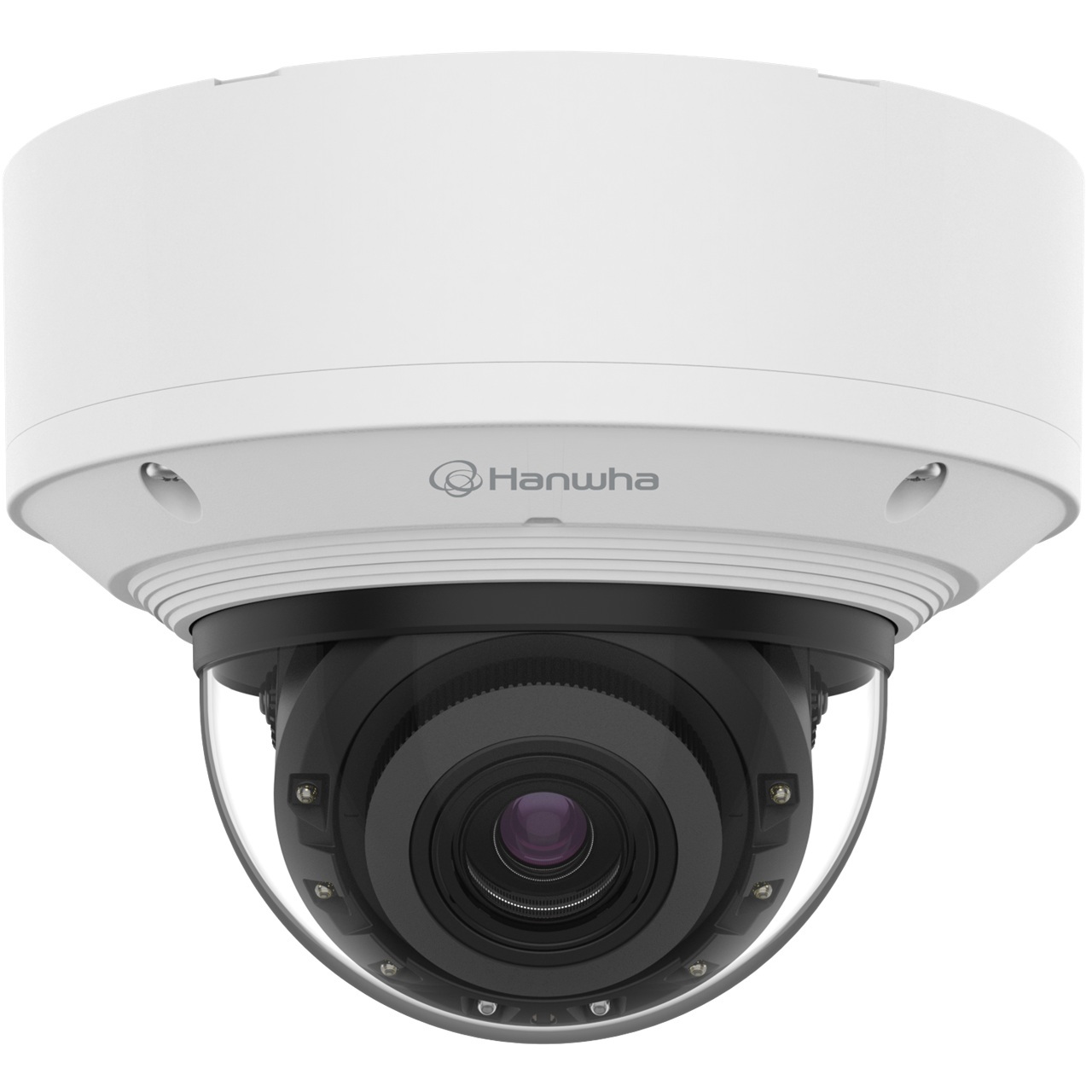

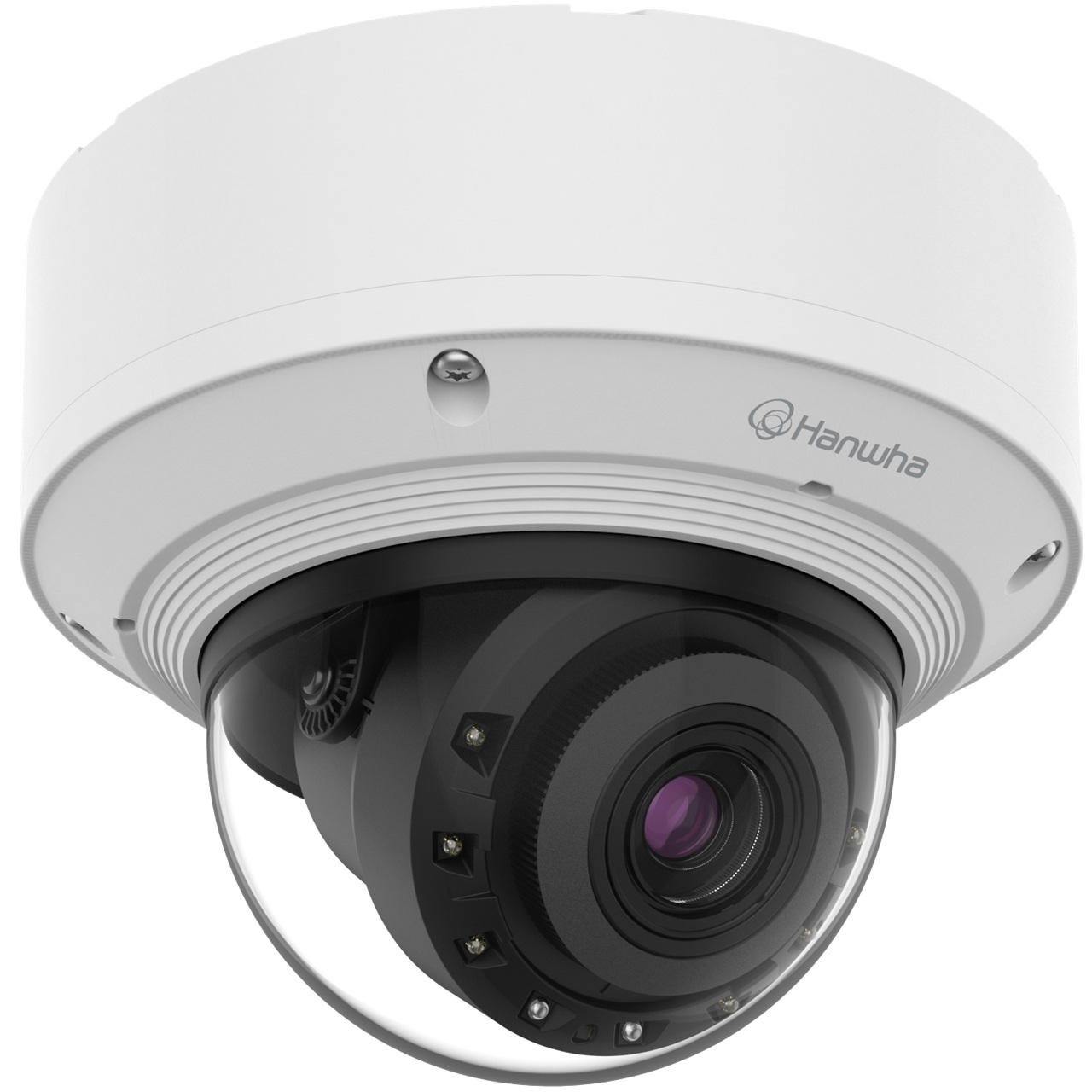

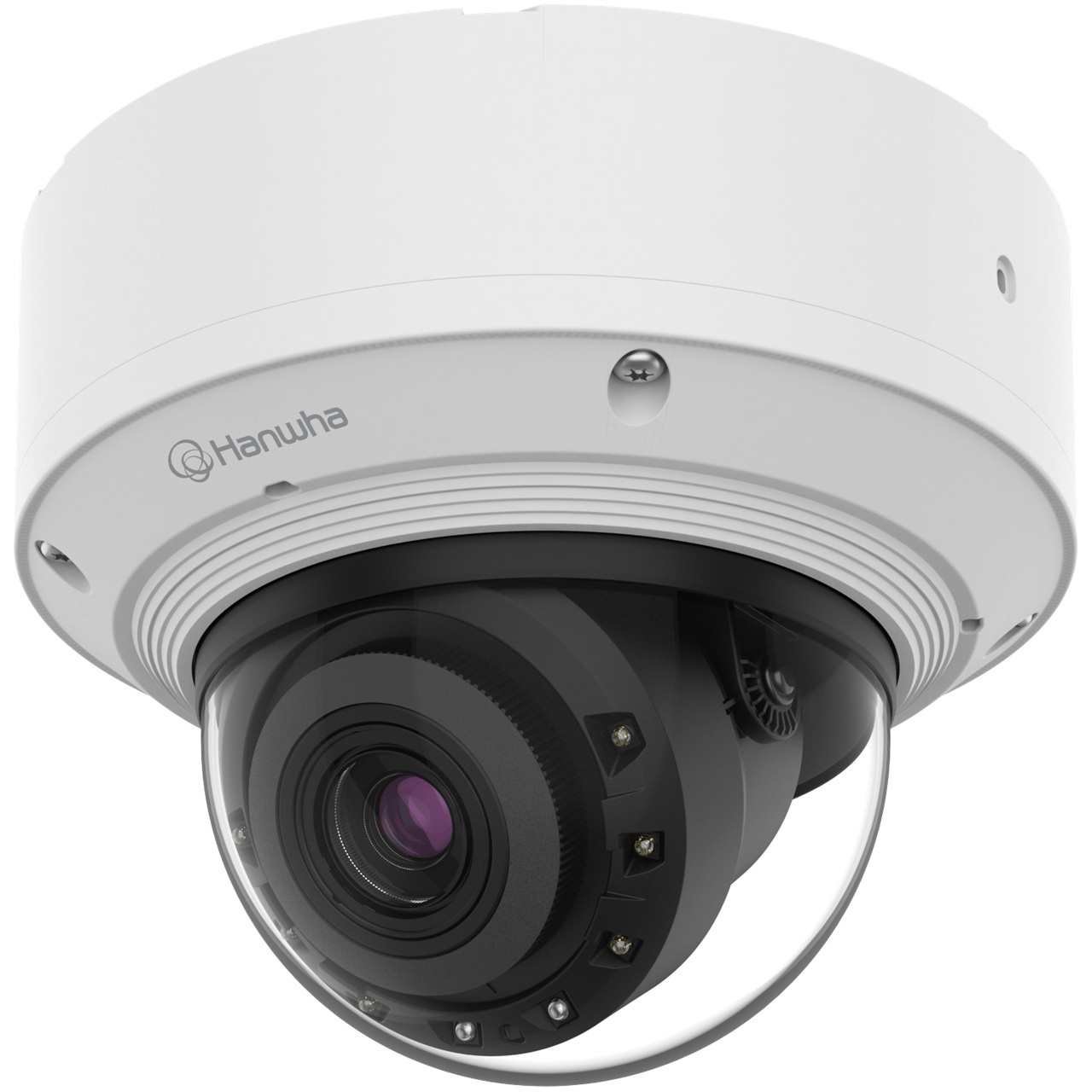

PND-A7082RV Hanwha Vision P Series 4.6-9.35mm Motorized 60FPS @ 4MP Indoor IR Day/Night WDR Vandal Dome IP Security Camera PoE/12VDC

Introduction

Power in every pixel.

Next-gen precision. Hanwha Vision P series cameras come equipped with Wisenet 9, built with a dual NPU architecture to execute advanced AI analytics models and image optimization for exceptional performance.

Specifications

Video

• Imaging Device - 1/1.8" CMOS
• Resolution - 2592x1520, 2560x1440, 1920x1080, 1600x1200, 1280x960, 1280x720, 1024x768, 800x600, 640x480, 640x360, 320x240, 320x180
• Max. Framerate - H.265/H.264 : Max. 60fps/50fps(60Hz/50Hz)(WDR off) / 30fps/25fps(60Hz/50Hz)(WDR on) MJPEG 30fps(@4MP Max. 5fps)
• Min. Illumination - Color (1/30sec, 30IRE)0.03 B/W : (1/30sec, 30IRE) 0.003
• Video Out - USB: Micro USB Type C

Lens

• Focal Length mm - 4.6~9.35mm
• Zoom Ratio Optical - 2.0x
• Max Aperture Ratio - F1.3(Wide) ~ F2.15(Tele)
• Angular Field of View - H : 105°~47°, V : 58°~27°, D : 128°~55°
• Min. Object Distance - 1.5m(4.92ft)
• Focus Control - Simple focus
• Lens Type - P iris(IR corrected)

Pan / Tilt / Rotate

• Pan / Tilt / Rotate Range - 0°~350°/ -45°~85°/0°~355°

Operational

• Camera Title - Displayed up to 85 characters
• Day & Night - Auto(ICR)
• Backlight Compensation - BLC, WDR, SSDR
• Wide Dynamic Range - (120dB)
• Digital Noise Reduction - WiseNRâ…¡(Based on AI engine), SSNRâ…¤
• Digital Image Stabilization - Support
• Defog - Support
• Motion Detection - 8ea, 8point Polygonal zones
• Privacy Masking - 32ea, 8point quadrangle zones - Color: Gray/Green/Red/Blue/Black/White , Mosaic, Purple, Yellow - Dynamic Privacy Masking: Color / Option - Gray/Green/Red/Blue/Black/White , Mosaic, Purple, Yellow
• Gain Control - Off / Max gain / Manualt
• White Balance - ATW / NarrowATW / AWC / Manual / Indoor / Outdoor
• LDC - Support(Fill/stretch mode)
• Electronic Shutter Speed - Minimum / Maximum / Anti flicker Prefer shutter control(Based on AI engine) 2~1/30,000sec
• Video Rotation - Flip,& Mirror, Hallway view(90°/270°)
• Alarm Interface In/Out - 2 configurable I/O ports, 12VDC output, Support extra alarm I/O via optional I/O box
• Alarm Triggers - Analytics, Network disconnect Alarm input Time schedule, MQTT subscription, Case tampering, Day/Night, Storage disruption
• Alarm Events - When alarm trigger occurred - File upload(image) : e-mail/FTP /SFTP, File upload(video clip): FTP/SFTP, Notification : e-mail - Recording : SD/SDHC/SDXC or NAS recording at event triggers Alarm output,- Handover PTZ preset send message by HTTP/HTTPS/TCP,Audio clip playback, MQTT: publication
• Audio In - Selectable(mic in/line in)
• Audio Out - Line out
• Light Type - IR LED
• Light IR Viewable Length - WiseIR 60m(196.85ft)
• IR Wavelength - 850nm

Analytics

• Classified object type: - Person/Face/Vehicle/License plate Attributes: Person Upper/Lower clothes color, Gender, Bag, Vehicle(Type: car/bus/truck/motorcycle/bicycle and Color), Face Age, Gender, Face mask, Glasses
• Thumbnail - BestShot
• Analytics Events - Based on AI engine - Object detection, Virtual line (Crossing/Direction), Motion detection Face mask detection, Social distancing detection Slip & fall detection, Virtual area(Loitering/Intrusion/Enter/Exit/Appear/Disappear), Defocus detection, Tampering, Audio detection, Shock detection, Virtual area(Appear/Disappear People counting, Queue management, Heatmap, Vehicle counting, Crowd counting

Network

• Ethernet - Metal shielded RJ-45(10/100/1000BASE-T)
• Video Compression - H.265/H.264: Main/Baseline/High, MJPEG
• Audio Compression - G.711(PCM): 8kHz(64kbps), G.726(ADPCM): 8kHz(16/24/32/40kbps), AAC-LC: 16kHz(48kbps), OPUS:48kHz(64kbps)
• Smart Codec - WiseStream (Based on AI engine)
• Bitrate Control - H.264/H.265: CBR or VBR MJPEG: VBR
• Streaming - Unicast(20 users) / Multicast / Multiple streaming Up to 5 profiles, 3 virtual channel support
• Protocol - IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT, Syslog
• Application Programming Interface - ONVIF S, G, T, M , Others SUNAPI(HTTP API), Hanwha Vision Open Platform
• Direct Cloud Connection - Support

Security

• OS / Firmware Protect - Encrypted Firmware, Secure boot, Signed Firmware
• User authentication - Digest Authenticaton, Prevent brute-force attack
• Network authentication - IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
• Secure Communication - HTTPS, WSS(WebSocket Secure), SRTP
• Access Control - IP-based access control, MAC-based access control, Auto logout
• Data Protect - Encryption Credentials, Encrypt compress for live recording file export
• Audit - Access / System / Event Log management
• Device ID - Device certificate(Hanwha Vision Root CA)
• Secure Storage - Secure element, SDcard partition encrypt(AES-256) Secure element
• Supply Chain Security - SBOM
• Security Certificate - Secure element(FIPS 140-3 level3, CC EAL6+) Consumer IoT Security Standard (ETSI EN 303 645)

General

• SoC - Type Wisenet9, Dual NPU Support
• Edge Storage - Micro SD/SDHC/SDXC Max. 1TB x 2slot(Total 2TB)
• Edge Storage(on Cloud) - Micro SD/SDHC/SDXC Max. 1TB x 2slot(Total 2TB) Hanwha Vision branded microSD cards have been certified and ecommended for OnCloud edge recording
• Memory - 4GB RAM, 8GB eMMC Flash

Environmental & Electrical

• Operating Temperature / Humidity/ Others - -25°C~+50°C(-13°F~+122°F) / 0~100% RH(condensing)＊Humidity control with AIR vent
• Storage Temperature / Humidity - -50°C~+60°C(-58°F~+140°F)/ 0~90% RH(non-condensing)
• EPA(Effective Projected Area) - 0.0148㎡
• Input Voltage - PoE+(IEEE802.3bt Class4), 12VDC
• Power Consumption - POE,Max. 15.0W, typical 9.0W, 12VDC Max. 12.7W, typical 7.8W
• Wisepower - Power monitoring
• Power Redundance Failover - Support

Mechanical

• Color / Material - White / Aluminum Hard-coated dome
• RAL Code - RAL9003
• Product Dimensions - ø160x125mm(ø6.30x4.92")
• Weight - 1550g(3.42lb)
• Compatible Conduit hole - 12.7mm(1/2")(M20)
• Compatible Gangbox - Single, Double, 4"Octagon Square

Certifications & Standards

• EMC - FCC 47 CFR 15 Subpart B Class A ICES-3(A)/NMB-3(A) CE/UKCA - EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3 VCCI CISPR 32 Class A RCM AS/NZS CISPR 32 Class A KS C 9832 Class A , KS C 9835
• Safety - UL 62368-1, CAN/CSA C22.2 NO. 62368-1 IEC/EN 62471
• Environment - IEC/EN 63000,IEC0529IP52,IEC62262IK10,IEC60068-2-1,IEC60068-2-2,IEC 60068-2-6,IEC0068-2-14,IEC60068-2-27,EC60068-2-78

DORI (EN62676-4 standard)

• Detect (25PPM/ 8PPF) - Wide: 39.8m(130.51ft) / Tele: 119.2m(391.15ft)
• Observe (63PPM/ 19PPF) - Wide: 15.9m(52.20ft) / Tele: 47.7m(156.46ft)
• Recognize (125PPM/ 38PPF) - Wide: 8.0m(26.10ft) / Tele: 23.8m(78.23ft)
• Identify (250PPM/ 76PPF) - Wide: 4.0m(13.05ft)/ Tele: 11.9m(39.12ft)
