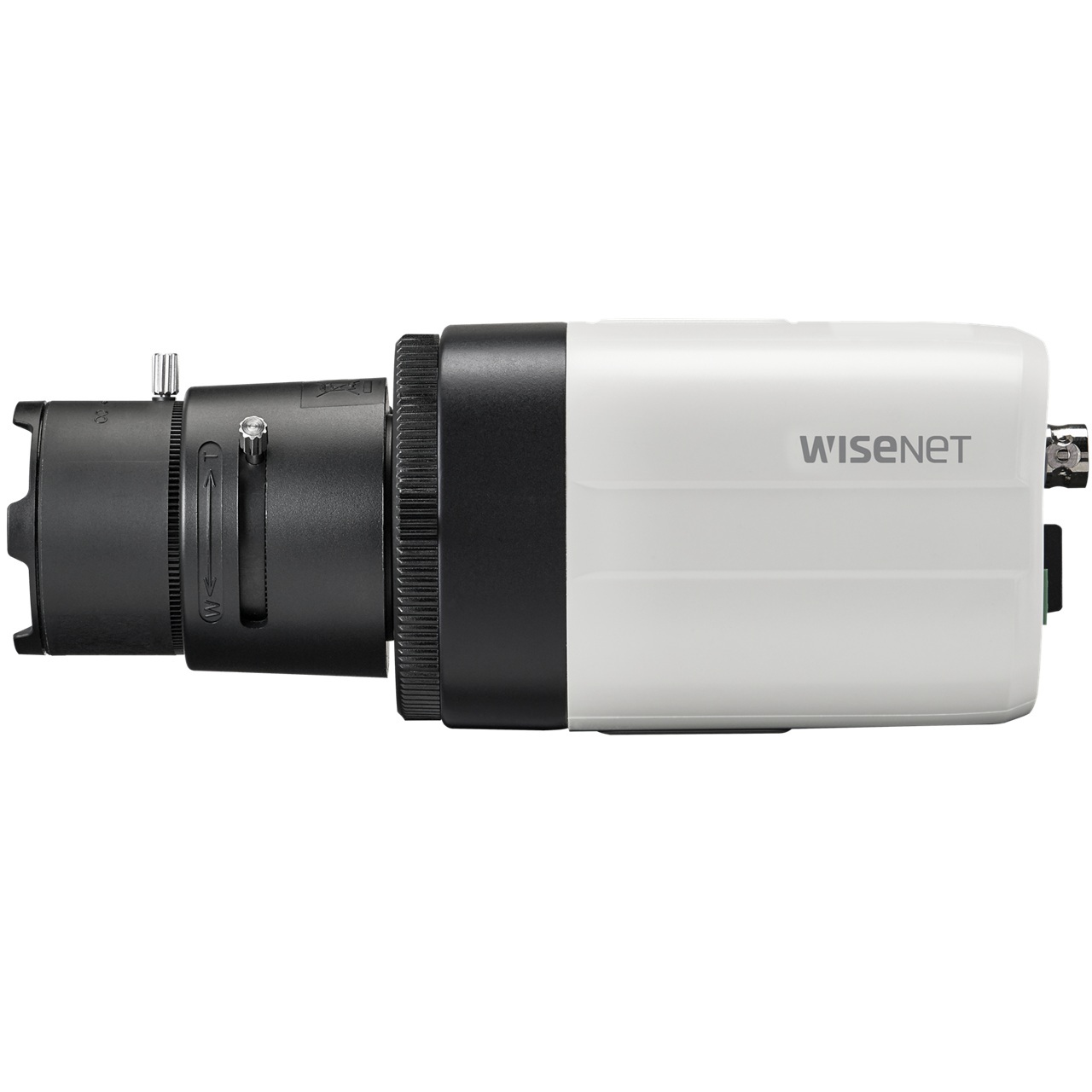

HCB-7000A Hanwha Techwin 30FPS @ 4MP Indoor Day/Night DWDR Box AHD/Analog Security Camera 12VDC/24VAC - Lens Not Included

Wisenet HD+ 4MP box camera, AHD or CVBS formats are available, RS485 /Coaxial Control, true D/N, 24VAC/12VDC (Require 4MP or higher CS Mount Lens).

Specifications

Video

• Imaging Device - 1/3" 4M CMOS
• Total Pixels - 2,720(H) x 1,536(V)
• Effective Pixels - 2,688(H) x 1,520(V)
• Scanning System - Progressive Scan
• Min. Illumination - Color : 0.16 Lux (F1.2), B/W : 0.009 Lux (F1.2)
• S / N Ratio - 52dB (AGC off, Weight on)
• Video Output - BNC (AHD), Additional CVBS for installation
• Resolution - 2560 x 1440
• Max. Framerate - 30fps@4M

Lens Type

• Focus Control - Manual
• Lens Type - Manual / DC auto Iris
• Mount Type - C / CS

Operational

• On Screen Display - Multi-language Support (14) English, Spanish, French, Portuguese, German, Italian, Russian, Polish, Czech, Romanian, Serbian, Swedish, Danish, Turkish
• Day & Night -Auto (ICR) / External / Color / B/W
• Backlight Compensation - Off / User BLC / HLC
• Wide Dynamic Range - D-WDR (Off / On)
• Digital Noise Reduction - 2D DNR
• Motion detection - Off / On (4 zones)
• Privacy Masking - Off / On (2 zones rectangle)
• Gain Control - Off / Low / Middle / High / Very High
• White Balance - ATW / Outdoor / Indoor / Manual / AWC (1,800K° ~ 10,500K°)
• Electronic Shutter Speed - 1/30sec ~ 1/12,000sec
• Reverse - Off / H-Rev / V-Rev
• Alarm - (MD) Output 1
• Remote Control Interface - Coaxial
• Protocol - AHD : ACP (AHD Coax Protocol), CVBS : Pelco-C (Coaxitron), RS-485 : Samsung T, Pelco D/P
• Video Transmission Distance - 500m (5C2V Coaxial cable)

Environmental

• Operating Temperature / Humidity - +14°F ~ +131°F (-10°C ~ +55°C) / Less than 90% RH

Electrical

• Input Voltage - Dual (24V AC ±10% & 12V DC ±10%)
• Power Consumption - MAX. 3.6W

Mechanical

• Color / Material - Black / Aluminum, Ivory / Plastic
• Dimensions (WxHxD) - 2.69" x 2.35" x 3.65" (68.4 x 59.6 x 92.7mm)
• Weight - 0.41 lb (186g)

HCB-7000A Specifications PDF
